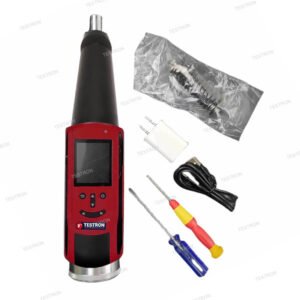

TT-DRH80 Digital Concrete Test Hammer Features:
- The main unit integrated with the sensor, portable design.
- True color LCD screen, high resolution of 176*220 mechanical hammers.
- Powered by high-capacity rechargeable lithium battery.
- Non-contact grating sensor with high precision.
- Unique sound alarm of rebound value.
- Easy to generate report by printer on the spot.
- Automatic delete exceptional value and calculate component results.
- Possibility to store, display and transfer data to PC with USB interface.
Digital Concrete Test Hammer Technical Specification:
| Model | TT-DRH80 |
| Measuring range | 10-60MPa |
| Impact energy | 2.207J |
| Spring extension | 75mm |
| Display | 16-bit true color, 176 * 220 resolution |
| Data storage | 480000 testing results |
| Mean value of steel-anvil rating | 80±2 |
| Flip tension spring rigidity | 785N/m |
| Power supply | Rechargeable lithium battery |
| Power consumption | Maximum backlight situation≈100mA (Voice off) |
| Interface | USB2.0 full-speed |
| Weight | 1.1Kg |
Digital Concrete Test Hammer Optional Accessory:
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Printer |
| Software | 1 | Power charger for printer (9V/2V) |
| USB connecting cable | 1 | |
| Power charger | 1 | |
| Carborundum stone | 1 | |
| Certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
