Application of TT-CTG1000 Concrete Thickness Gauge
It can measure the thickness of floor slabs or other non-ferromagnetic media such as walls, beams, columns, wood, ceramics, etc.
Features of TT-CTG1000 Concrete Thickness Gauge
- Display the position of the launch probe, and realize fast positioning through direction indication
- Intelligent interpretation, automatic locking, digital display of thickness value, no need for manual comparison.
- The main machine and probe are designed separately, so that the main machine does not contact the test object during the test, which prevents the main
machine from testing damage in the process. - Professional PC data analysis software, data processing and report generation can be easily completed.
- The large measuring range greatly reduces the detection time.
- Direction indication to indicate the direction of movement of the detection probe
- It can be used in WinXP, Win7, Win8 and other environments
Technical Specifications of TT-CTG1000 Concrete Thickness Gauge
| Items | TT-CTG1000 |
| Thickness measurement range | 40mm~1000mm |
| Test accuracy | 40mm~600mm ±1mm 601mm~1000mm ±2mm The test accuracy is better than other similar products |
| Data storage capacity | 4,000 components or 32,000 measurements |
| Data transfer mode | USB |
| Working Environment Requirements of of TT-CTG1000 Concrete Thickness Gauge | |
| Ambient temperature | -10°C~+50°C, avoid direct sunlight for a long time |
| Relative humidity | ≤ 90%RH |
| Electromagnetic interference | no strong alternating electromagnetic field |
| Power supply | Built-in rechargeable lithium battery, power supply time up to 50 hours |
| Main machine volume | 220mm× 162mm×91mm |

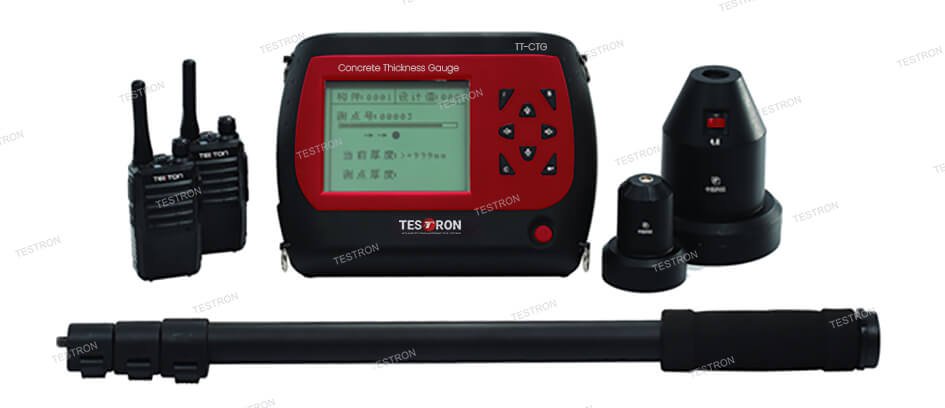

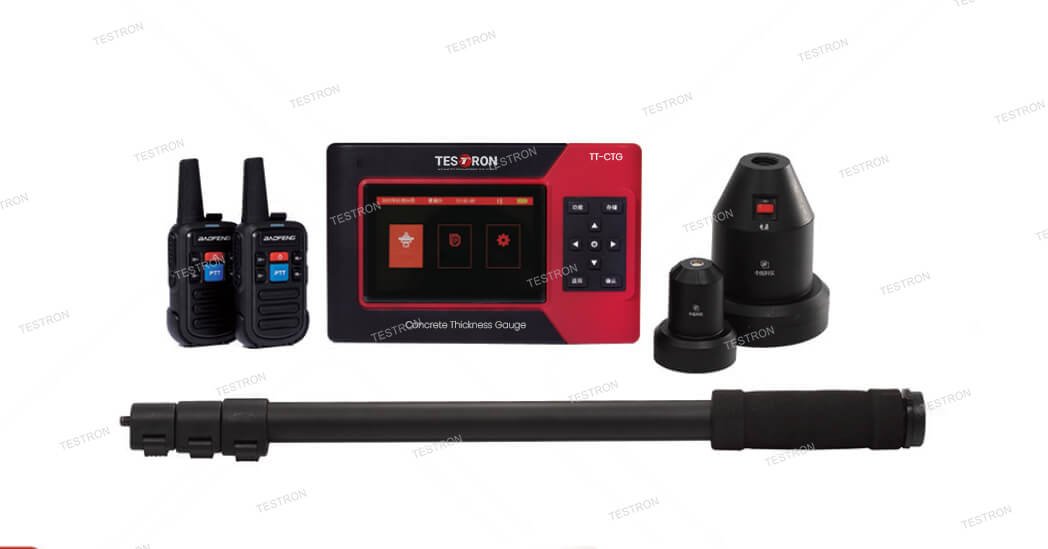

Standard Configuration of of TT-CTG1000 Concrete Thickness Gauge
| Item | Qty |
| Main host | 1 |
| Transmitting probe | 1 |
| Receiving probe | 1 |
| Two-way radio (walkie-talkie) | 1 |
| Probe cable | 1 |
| Data transmission line | 1 |
| Extension rod | 1 |
| Software | 1 |
| Operating manual | 1 |
| Warranty card | 1 |
