Applications of TT-RD800 Multi-Functional Rebar Detector
For bridges, tunnels, building etc.
- Locate rebars before drilling, cutting and coring
- Conformity check of new buildings
- Spot check of cover and rebar size
- Corrosion analysis
- Evaluating the quality of construction
- Testing the quantity of rebar when evaluating and developing the old structure
- Evaluating the integrity of and durability of existing structures
Features of TT-RD800 Multi-Functional Rebar Detector
- Double function of rebar and corrosion test.
- Localization and distribution of rebar.
- Measure the thickness of rebar cover
- Estimation of the rebar cover
- Graphic reconstruction of the grid
- Display the rebars in section for assessing the deviation from the known rebar cover to each bar or

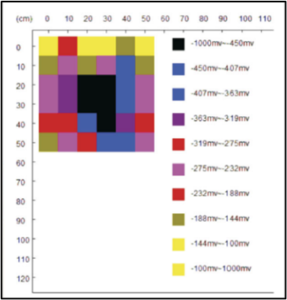

- Measurement of the potential corrosion of the steel with single or dual electrode allowing the diagnosis of the state of corrosion.
Technical Specifications of TT-RD800 Multi-Functional Rebar Detector
| Model | TT-RD800 | |
| Rebar Location | ✔ | |
| Rebar cover measurement | ✔ | |
| Rebar diameter estimation | ✔ | |
| Rebar corrosion estimation | ✔ | |
| Protective Layer thickness range (mm) | Φ6-Φ50 | |
| Max range | First range | 3~98 |
| Second range | 3~196 | |
| Maximum allowed error of protective layer thickness range (mm | ±1 (mm) | 3~77 |
| ±2 (mm) | 78~120 | |
| ±4 (mm) | 121~196 | |
| Application range (mm) | Φ6 -Φ50 | |
| Data transfer | U-disk | |
| Wireless transfer | ✔ | |
| Data Correction | Automatic | |
| Power | Built-in chargeable lithium battery >38hours | |
| Size (mm) | 212x134x150 | |

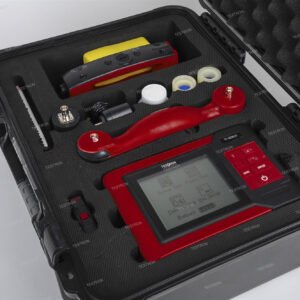

Standard Configuration of TT-RD800 Multi-Functional Rebar Detector
| Item | Qty |
| Main unit | 1 |
| Carrying case | 1 |
| SET200A rebar sensor | 1 |
| SET180C rebar sensor | 1 |
| Copper sulfate electrode | 1 |
| Double-electrode handle | 1 |
| Battery charger | 1 |
| Electrode cap | 1 |
| Signal wire | 1 |
| Single-electrode wire | 1 |
| Double-electrode wire | 1 |
| Pencil | 1 |
| USB drive with software for analysis and report | 1 |
| Operating manual | 1 |
| Quality certificate | 1 |
| Warranty card | 1 |
