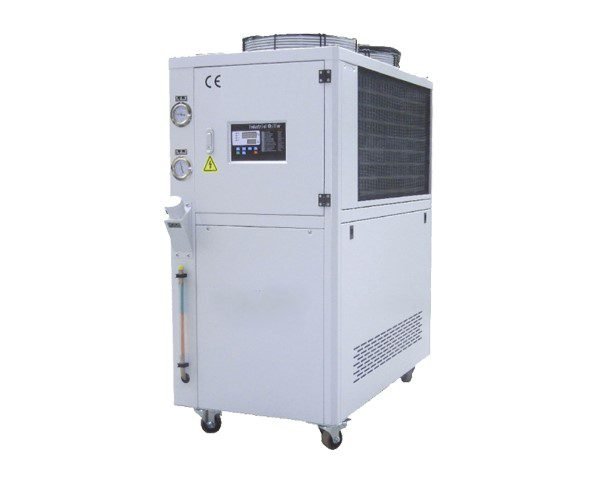

Air Cooled Process Chiller-Nominal Cooling Capacity: 83.6KW/23.8TON

TESTRON process chillers are with compact design for flexible use. Abundant configuration options make our process chiller capable of various process cooling tasks.

The high quality and stable performance make TESTRON process chillers your perfect choice for small and medium scale process cooling.

Standard process chillers are available with 1KW to 203.8KW cooling capacity range.

Technical Specifications:

Nominal Cooling Capacity:	83.6KW / 23.8TON
Input Power:	32KW
Power Voltage:	3Phase-400V-50Hz
Chilled Fluid Type:	Fresh water
Max Working Ambient Temperature:	50℃
Controller Type:	Micro-processor
Temperature Control Accuracy:	±1 K
Compressor Type: Danfoss:	Hermetic scroll
Compressor Motor:	9.1KW*2
Quantity of Compressor:	2
Refrigerant Type:	R410a
Refrigerant Control Method:	Thermal expansion valve
Quantity of Refrigerant Circuit:	2
Condenser Type: Air Cooled Type	Aluminum fin with copper tube
Fan Power*Qty.:	0.67KW*4
Evaporator Type:	Immersion SUS304 coil
Pump Type:	SUS304 centrifugal type
Pump Motor:	2.2KW
Pump Max Flow:	21.6m³/h
Pump Max Head:	27meters
Chilled Water Outlet Diameter:	2-1/2″
Chilled Water By-pass Valve:	Included
Dimension:	1900mm1480mm1930mm
Net Weight:	1150kgs
