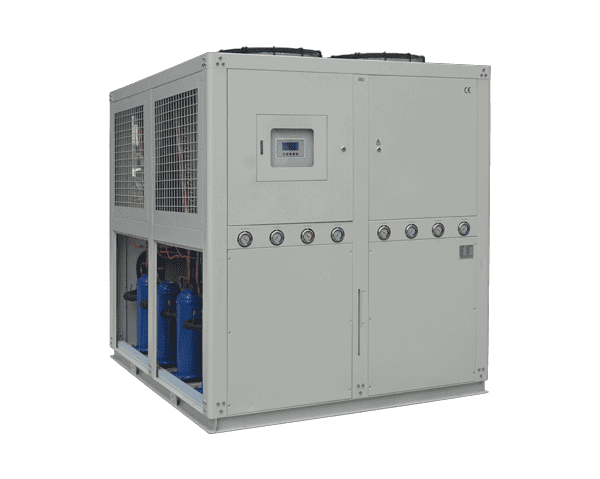

Air Cooled Industrial Chiller-Nominal Cooling Capacity 110KW

TESTRON offer air cooled industrial chiller solution for varies of applications and working conditions including:

Heavy-duty air-cooled chillers for high ambient temperature up to 60℃.

Scroll type, screw type or reciprocating type compressor.

Complete stainless steel heat exchangers for deionized water, food process or medical use cooling.

Acid corrosion resistance heat exchangers for processes like surface treatment.

Nominal Cooling Capacity:	109.6KW
Input Power:	39.8KW
Power Voltage:	3Phase/380V/50Hz
Chilled Fluid Type:	Fresh water
Water Circuit:	Open loop
Max Working Ambient Temperature:	50℃
Controller Type:	PID
Temperature Control Accuracy:	±1 K
Compressor Type:	Danfoss – Hermetic scroll
Compressor Motor:	8KW*4
Quantity of Compressor:	4
Refrigerant Type:	R410a
Refrigerant Control Method:	Thermal expansion valve
Quantity of Refrigerant Circuit:	4
Condenser Type:	Epoxy coated aluminum fin type
Evaporator Type:	SUS304 immersion coil
Tank Volume:	580L
Pump Type:	Centrifugal type
Pump Motor:	4KW
Dimension:	2200mm1760mm2050mm
Net Weight:	1450 kgs
