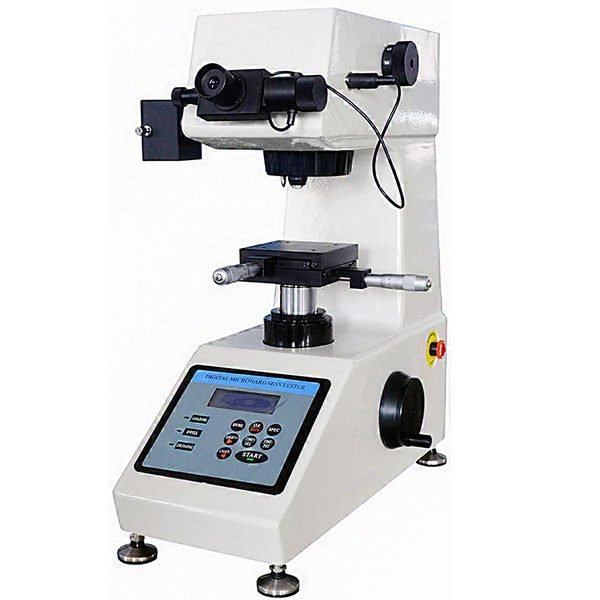

TT-VP1000 Series Practical Digital Micro Vickers Hardness Tester

TT-VP1000 Series is a precision micro Vickers hardness testing machine integrated the technology of optics, mechanics and computer.
TT-VP1000Series is equipped with LCD screen , the operation is more directly and clearly.
TT-VP1000 Series with Selection of the Vickers or the Knoop measuring methods,
TT-VP1000 Series Can be equipped with CCD device.

Product Name		Manual-turret Micro Vickers Hardness Tester	Auto-turret Micro Vickers Hardness Tester
Model		TT-VP1000M	TT-VP1000A
Testing Force	gf	10、25、50、100、200、300、500、1000
	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
Indentation Measurement		Digital Encoder Measurement
Output Data		Rs232/Mini-printer
Loading Control		Automatic (Loading, Dwell, Unloading)
Magnification of Microscope		Observation:10x; Measurement:40x
Magnification on of Eyepiece		10x Eyepiece
Dwell Time		Adjustable 5~60s
Testing Range		1HV~2967HV
X-Y Anvil		Size:100x100mm; Travel:25 x25mm; Resolution:2um
Illumination		Halogen light-source
Max. Height of Specimen		100mm
Instrument Throat		98mm
Power Supply		AC220V/50Hz;110V/60Hz
Dimension(LxWxH)		480 x305x545mm
Packing Dimension		500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Execution Standard		GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384
