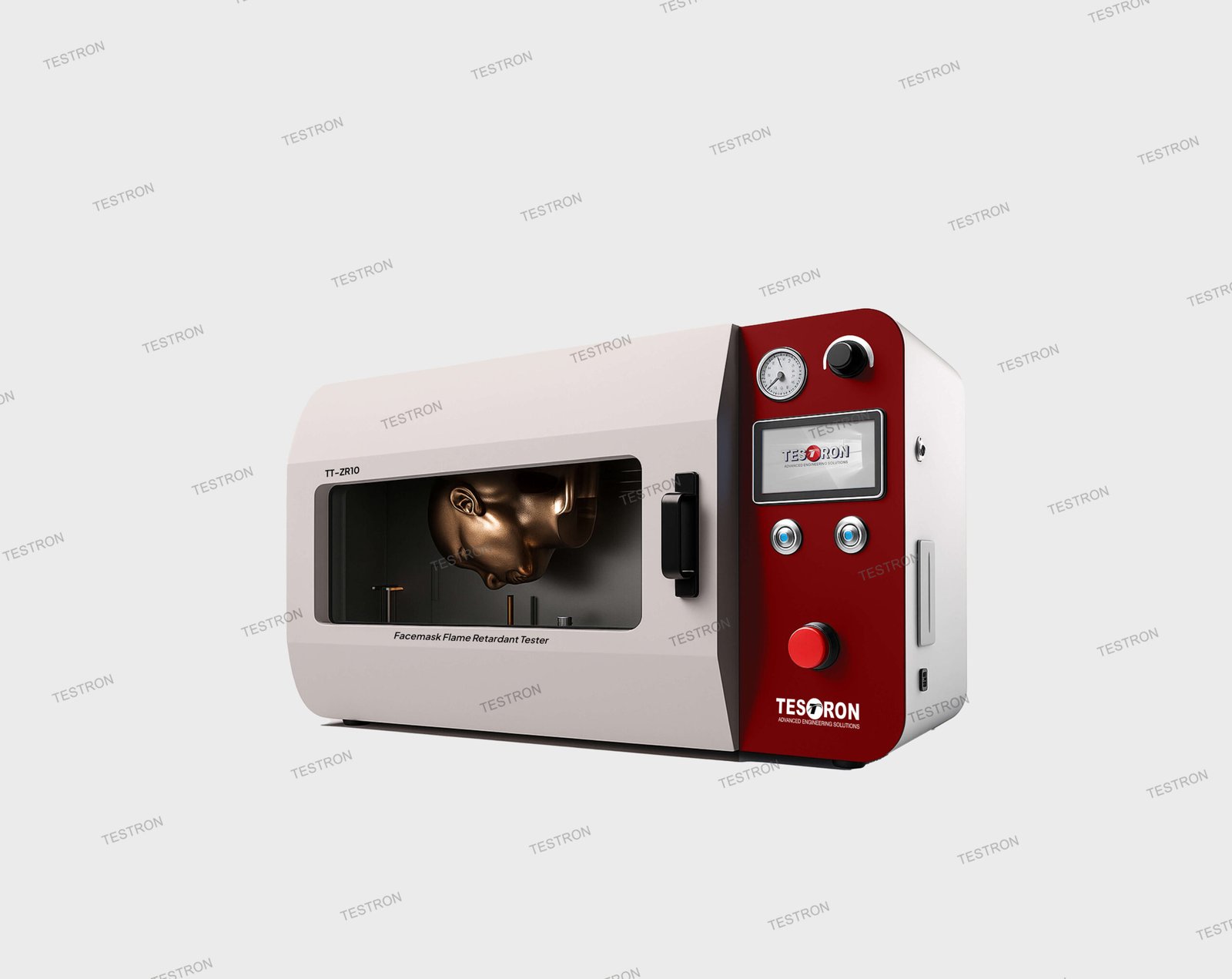

Face Mask Flame Retardant Tester Standard:
BS EN 136-1998, EN 149, 16 CFR Part 1610
Face Mask Flame Retardant Tester Specification:
| Item | Technical Parameters |
| Head mold automatic movement linear speed | (60±5) mm/s |
| Flame height | 40±4mm |
| Flame at height from top of the burner | (20±2)mm |
| Flame at a temperature from the top of the burner | (800±50)℃ |
| Distance between the top of the burner and the lowest point of the mask | (20±2)mm |
| Burner height | ≤30mm |
| Metal die wall thickness | 2～3mm |
| After flame time and smolder time timer | 0～9999.9s(±0.1s) |
| Working power | AC220V / 50Hz |

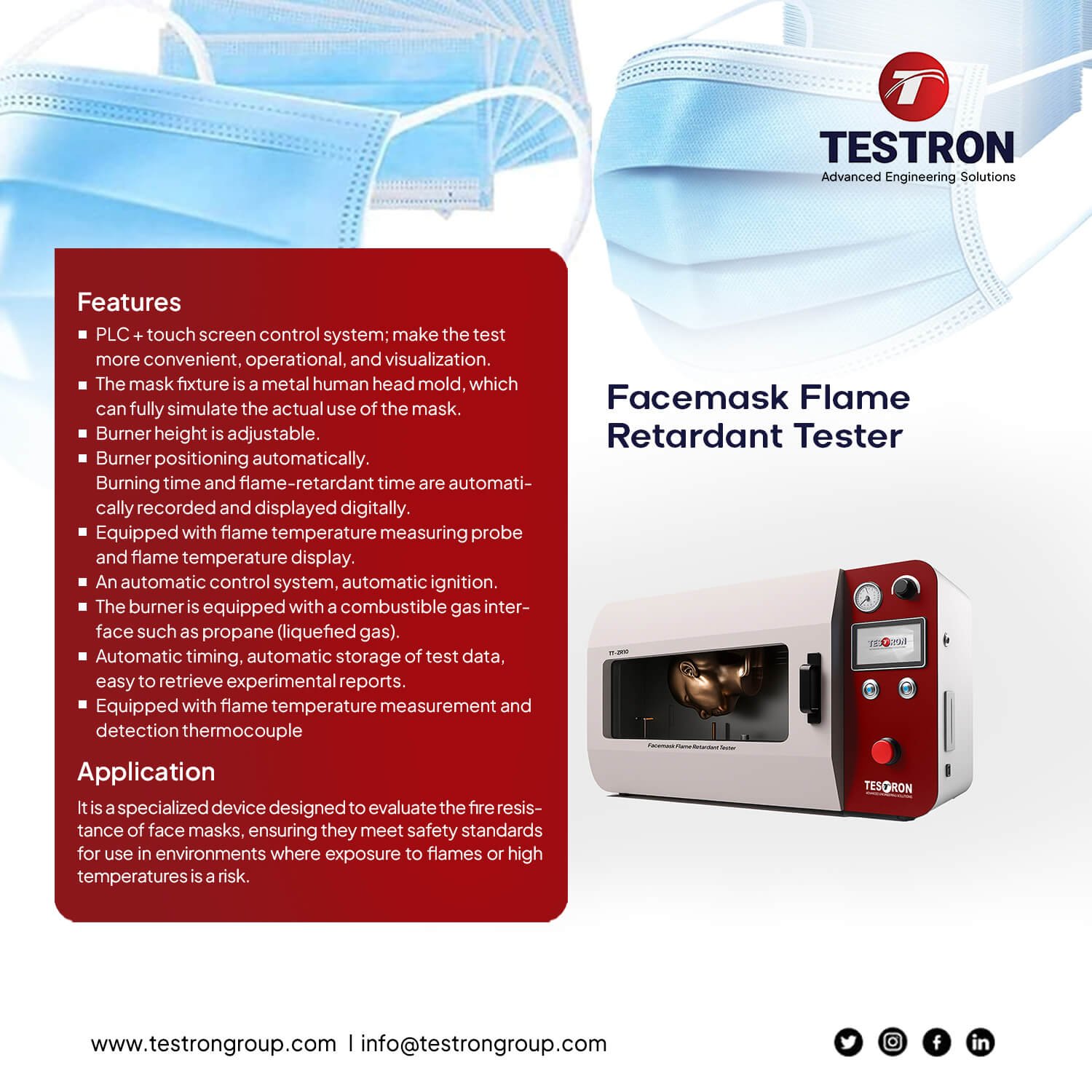

Face Mask Flame Retardant Tester Features:
- PLC + touch screen control system; make the test more convenient, operational, and visualization.
- The mask fixture is a metal human head mold, which can fully simulate the actual use of the mask.
- Burner height is adjustable.
- Burner positioning automatically.
- Burning time and flame-retardant time are automatically recorded and displayed digitally.
- Equipped with flame temperature measuring probe and flame temperature display.
- An automatic control system, automatic ignition.
- The burner is equipped with a combustible gas interface such as propane (liquefied gas).
- Automatic timing, automatic storage of test data, easy to retrieve experimental reports.
- Equipped with flame temperature measurement and detection thermocouple
