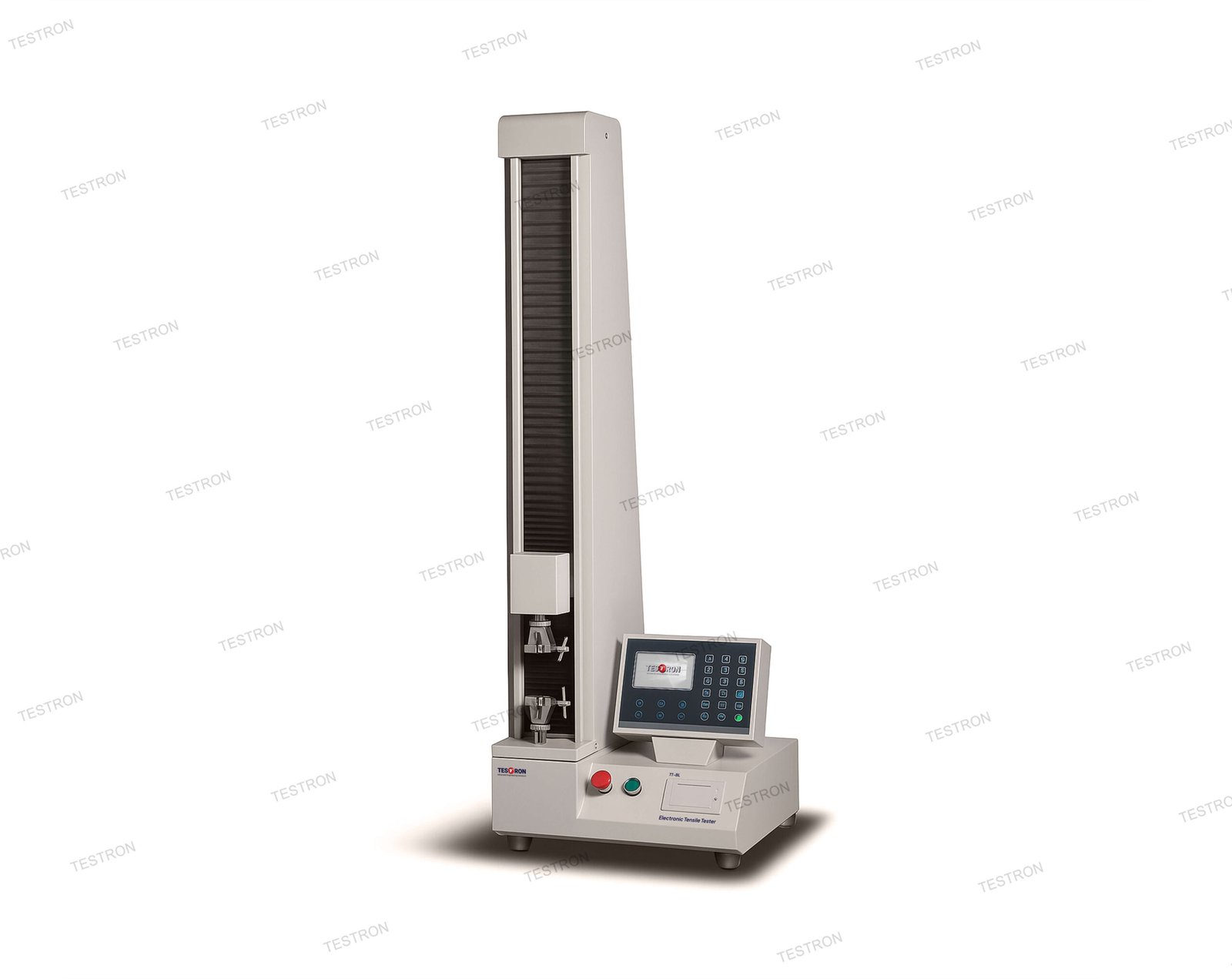

TT-BL Electronic Tensile Tester Standards:
ASTM D828,ASTM E4,ASTM D882,ASTM D1938,ASTM D3330, ASTM F88,ASTM F904,JIS P8113,QB/T 2358, GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200,GB/T16578.1, QB/T1130,GB/T 2791,GB/T 2790,GB/T 2792,GB/T 7122,GB/T 10004,GB/T 17590,JJG 139, GB/T 6344,GB 10808,YBB00112003,YBB00102003,YBB00132002,YBB00202004
TT-BL Electronic Tensile Tester Features:
- Can test tensile strength, peeling strength, heat sealing strength, and tearing strength.
- Users can set various parameters like width, speed, thickness, and distance.
- Results are shown on the LCD screen.
- Can print out testing results with a built-in thermal printer.
- Core parts are imported, with high precision and durability.
- High sampling speed (50 times/s) and accurate data.
- 3 levels of security protection make the experiment safer.
- Table standing design for sitting operation, easy and comfortable.
TT-BL Electronic Tensile Tester Specifications:
Item | Technical Parameters |
---|---|
Force range | >0-300N (0~500N optional), 1400% elongation |
Force accuracy | within ±1% of the displayed value (grade 1) |
Test speed | 0-500mm/min (infinitely variable speeds) |
Displacement accuracy | within ±1% of the displayed value |
Test width range | 30mm (50mm can be customized) |
Travel distance range | 700mm |
Instrument size | 600mm×500mm×1300mm |
Power | 300W |
Power supply | AC 220V,50Hz |
Weight | 65kg |
TT-BL Electronic Tensile Tester Configuration List:
Spare parts | |||
---|---|---|---|
NO. | Name | Remark | Quantity |
1 | Power cable | 3*0.75 10A 1.8M | 1 PC |
2 | Communication cable | RS232 nine-pin data cable | 1 PC |
3 | Tensile clip | 30mm | 1 PC |
4 | Piercing clip | 1 PC | |
5 | Software flash disk | 4G | 1 PC |
6 | Buckboard | 1 Set | |
7 | Allen wrench | 1 Set | |
8 | Right-angle tear blade | 1 Set | |
9 | Wooden box | 1 PC | |
10 | Cross screwdriver | 6-10mm | 1 PC |
Optional parts | ||||
---|---|---|---|---|
NO. | Name | Unit | Quantity | Remark |
1 | Computer (win7 32bit) | set | 1 | Optional |
2 | Pneumatic clip | set | 1 | Optional |
3 | Metrology Certificates | Optional |
User provides | |
---|---|
1 | Power supply 500w 220V 10A three holes socket ground wire |
2 | 1 set of computers (with nine-pin COM port,Windows7 |
