TT-H3000 Crush Tester Standards:
TAPPI T472, JIS P 8126, GB/T2679.8, GB/T6546, GB/T6548, GB/T2679.6, GB/T451.3, GB/T6547

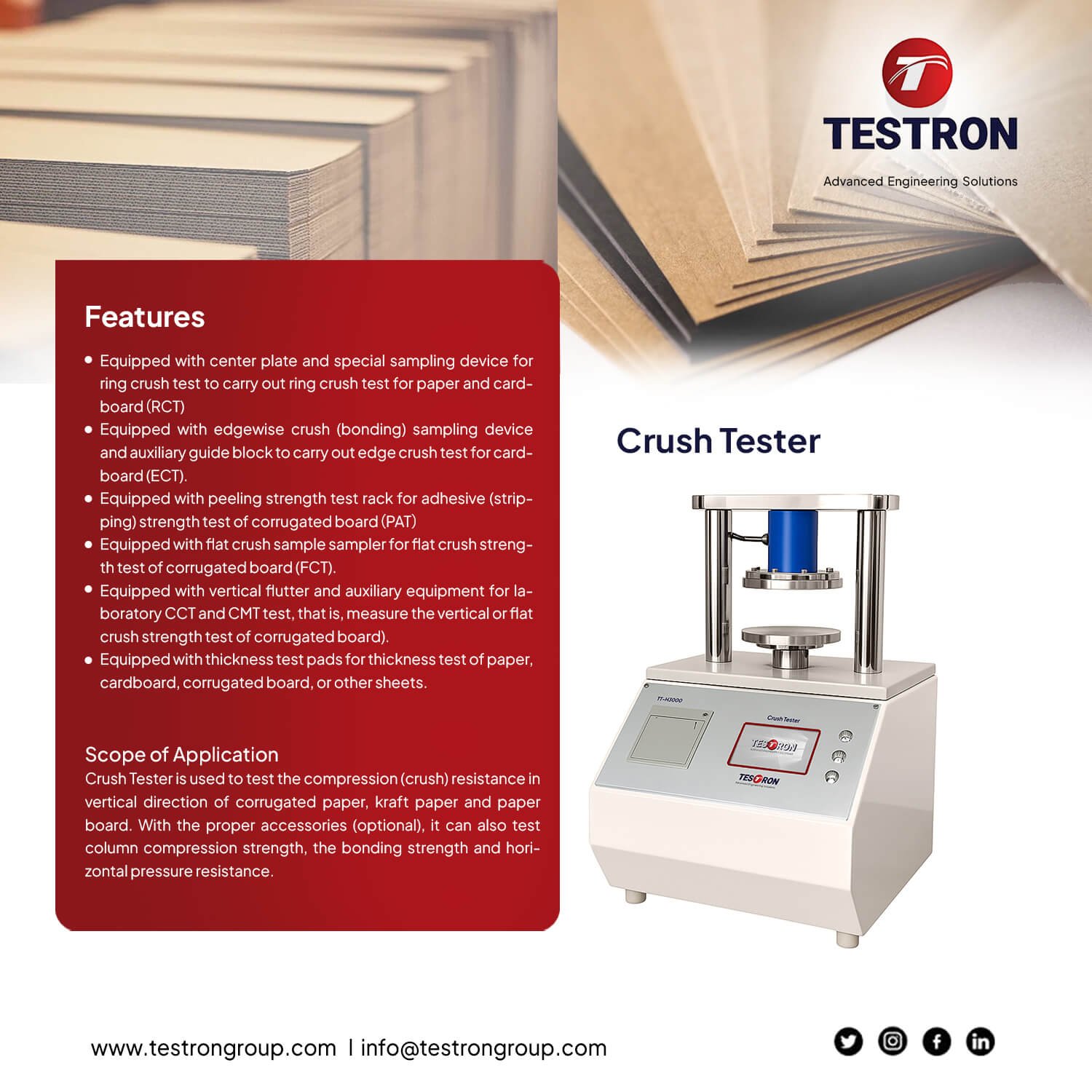

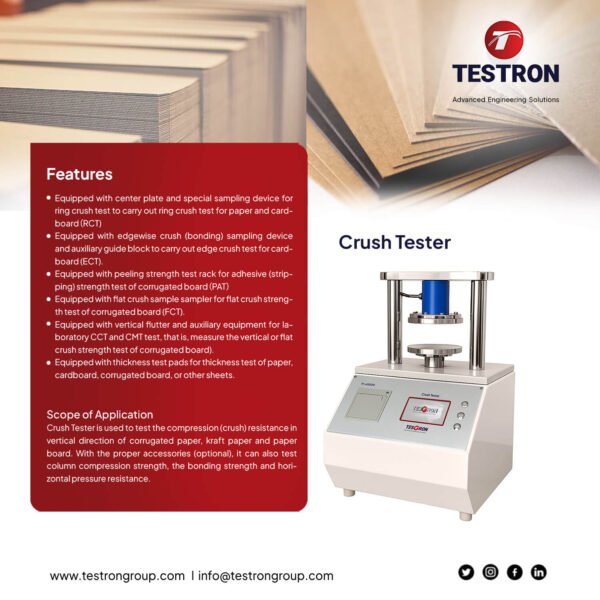

TT-H3000 Crush Tester Features:
The instrument is equipped with corresponding auxiliary equipment for the following tests:
- Equipped with center plate and special sampling device for ring crush test to carry out ring cursh test for paper and cardboard（RCT）;
- Equipped with edgewise crush (bonding) sampling device and auxiliary guide block to carry out edge crush test for cardboard (ECT);
- Equipped with peeling strength test rack for adhesive (stripping) strength test of corrugated board（PAT）;
- Equipped with flat crush sample sampler for flat crush strength test of corrugated board (FCT);
- Equipped with vertical fluter and auxiliary equipment for laboratory CCT and CMT test, that is, measure the vertical or flat crush strength test of corrugated board).
- Equipped with thickness test pads for thickness test of paper, cardboard, corrugated board or other sheets.
TT-H3000 Crush Tester Specifications:
| Item | Technical parameters |
| Test range | 30~3000N |
| Resolution | 1N |
| Accuracy | ±1% of displayed value |
| Variation of indication | ≤1% |
| Test speed | (12.5±2.5)mm/min |
| Parallelism of compression boards | <0.05mm |
| Distance between boards | ≥70mm |
| Weight | about 34kg |
| Instrument size | about 300mm × 350mm × 510mm |
