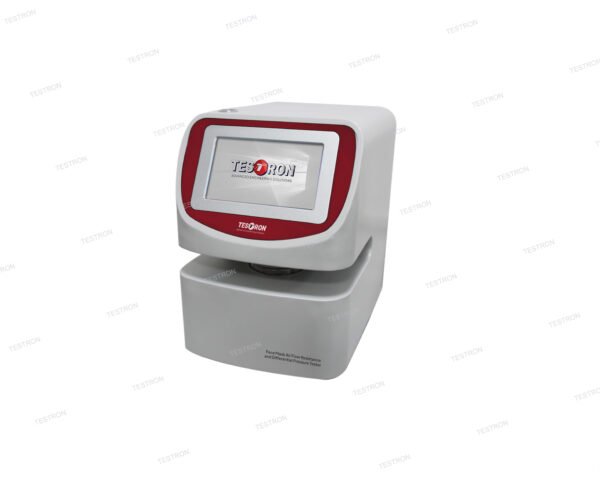

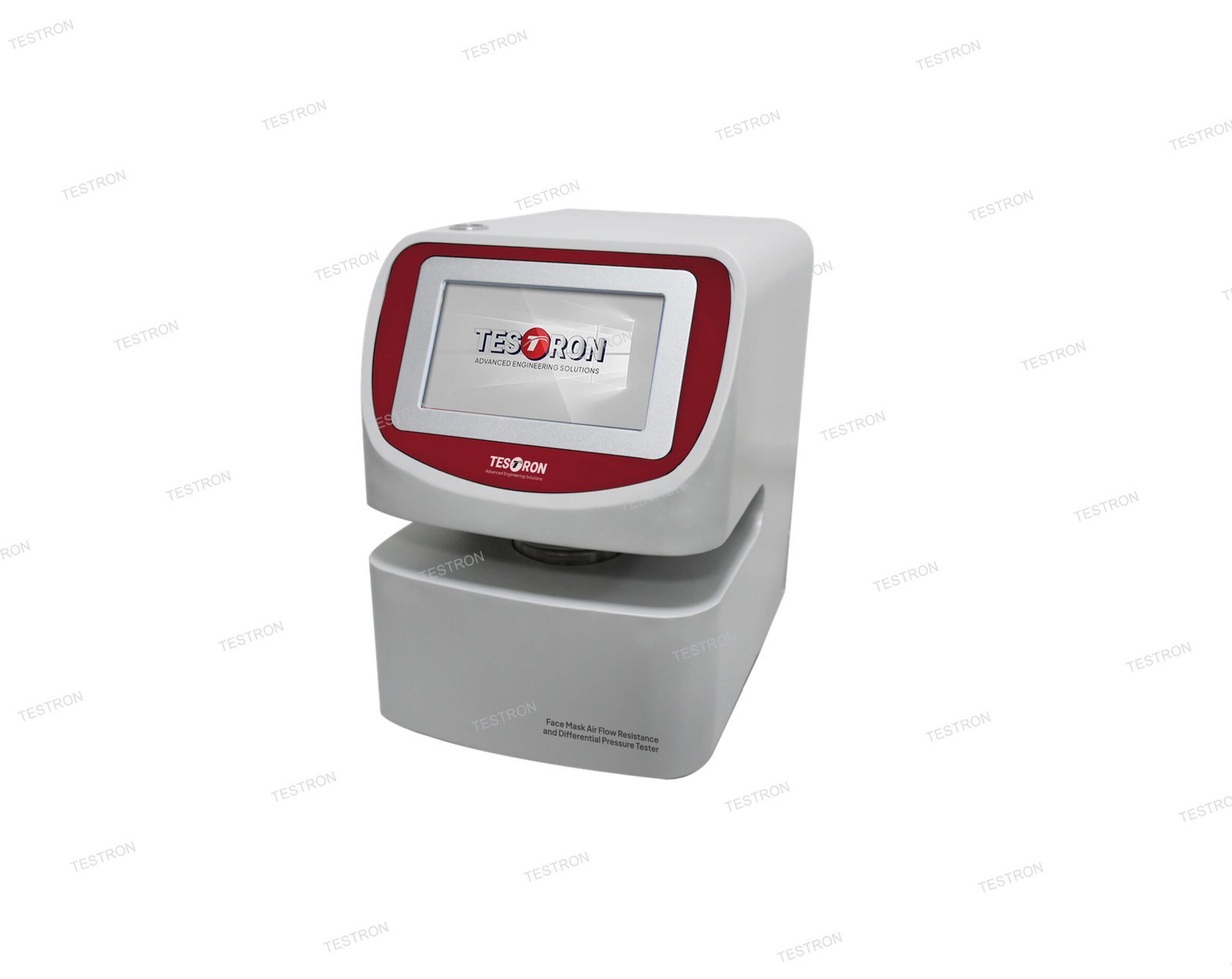

Test Standard of TT-N701 Face Mask Air Flow Resistance and Differential Pressure Tester
YY0469-2011, YY0969-2013
Application of TT-N701 Face Mask Air Flow Resistance and Differential Pressure Tester
It is used for face mask air flow resistance and differential pressure testing to check breathability and can also be used to check differential pressure of textile materials gas exchanger.
Principle of TT-N701 Face Mask Air Flow Resistance and Differential Pressure Tester
The output of the air flow is set by a gas flow meter, the air flow passes through a certain area of the test sample, the current pressure is detected by a pressure sensor, and the pressure difference is calculated.
Features of TT-N701 Face Mask Air Flow Resistance and Differential Pressure Tester
- Equipped with special sample grip, easy to use.
- Built-in HD touch screen.
- Built-in micro printer, easy to print test results.
- Equipped with high-precision differential pressure sensor, digitally display the pressure difference between the two sides of the sample.
- Equipped with high-precision gas flow control, real-time digital display of air flow to stably control air flow, manually setting available.
- Test time can be adjusted according to test requirements
Technical Specifications of TT-N701 Face Mask Air Flow Resistance and Differential Pressure Tester
| Model | TT-N701 |
| Gas Source | Compressed Air |
| Air Flow | Adjustable 1 – 10L/min, (Standard Air Flow 8L/min) |
| Sample Size | Ф25mm |
| Differential Pressure Sensor Range | 0～500Pa |
| Display Mode | Touch Screen |
| Power Supply | 220V, 50Hz |
