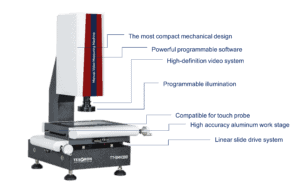

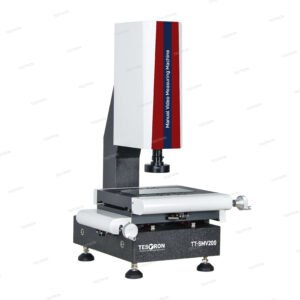

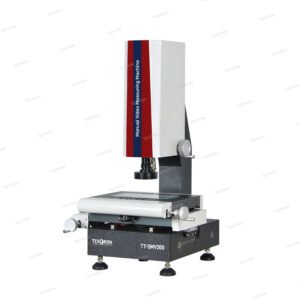

Features of TT-SMV200 Manual Standard Video Measuring Machine
High Accuracy Hardware Configuration
TT-SMV200 is configured with high accuracy linear guide way, provides unique dynamic performance and end user experience. It also includes full programmable 8 sections LEAD surface illumination ring, 3 axis 0.00055mm high resolution transducers and a programmable measuring software
With Reverse Engineering
TT-SMV200 is compatible with Renishaw touch probe as an optional configuration. The users can easily achieve a 2D and 3D measuring function in one machine. The software can calculate the offset between the optical lens and touch probe that makes sure that all measuring results are within one coordinate system. The measuring results can be output as 3D drawing for reverse engineering
Compact and Accurate
TT-SMV200 is fit for small quantity of samples measuring application. It has 3 axis manual control with user-friendly software that allows the user to use the machine in a very short time.
Technical Specifications of TT-SMV200 Manual Standard Video Measuring Machine
| Model | TT-SMV200 | |
| Dimension (mm) (x/y/z) | 540/550/860 | |
| Measuring Range (mm) (x/y/z) | 200/100/150 | |
| Measuring Accuracy (µ/m) | 2.5+L/100 | |
| Repeatability (µ/m) | 2.5µm | |
| Weight (Kg) | 82kg | |
|
Image and measuring | CCD | 1.3M pixel digital camera |
| Lens | Manual dented zoom lens 0.7-4.5X (Optional electronic magnification signal feedback lens) | |
| Magnification | 24.7-160X (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm | |
| Driving System | X/Y axis manual control | |
| Illumination | Programmable LED8 zone ring surface light, LED bottom parallel light (optional coaxial light) | |
