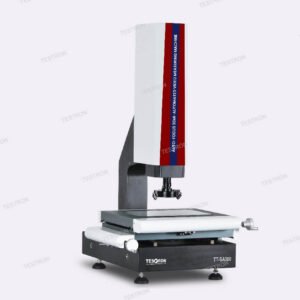

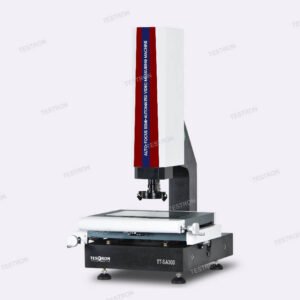

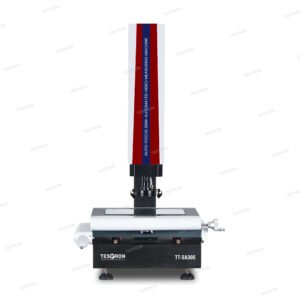

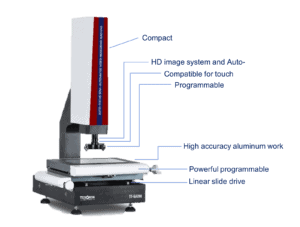

Features of TT-SA300 Auto-Focus Semi-Automated Video Measuring Machine
Smart Design
The mechanical design of the TT-SA300 is based on the principles of being light, compact, and smart, while maintaining rigidity and stability. Despite its small footprint, it offers the highest measuring range.
- High accuracy transmission system
The TT-SA300 uses a high-accuracy linear sideway, which is completely different from the cross-sideway found in other manual video measuring machines. This design ensures more stable and accurate transmission of the work stage, while also eliminating the potential risk of a shortened travel range caused by the cross-sideway.
- 3D measuring function
Working with TESTRON professional 3D measuring software, the TT-SA300 VMM will provide offers strong 3D measuring function, which becomes powerful 2D/3D composite measuring device with extremely reasonable price.
Technical Specifications of TT-SA300 Auto-Focus Semi-Automated Video Measuring Machine
| Mode | TT-SA300 | |
| Dimension (mm) (x/y/z) | 600/667/980 | |
| Measuring Range (mm) (x/y/z) | 300/200/200 | |
| Measuring Accuracy (µ/m) | 2.5+L/100 | |
| Repeatability ((µ/m) | 2.5µm | |
| Weight (Kg) | 123kg | |
| Image and measuring | CCD | 1.3M pixel digital camera |
| Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | |
| Magnification | 24.7-160x (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm | |
| Driving System | X/Y axis manual control, Z axis CNC full closed loop motion control (including auto focus function) | |
| Illumination | Programmable LED 8-zone ring surface light, LED bottom parallel light (optional:8-zone ring light, coaxial light) | |
