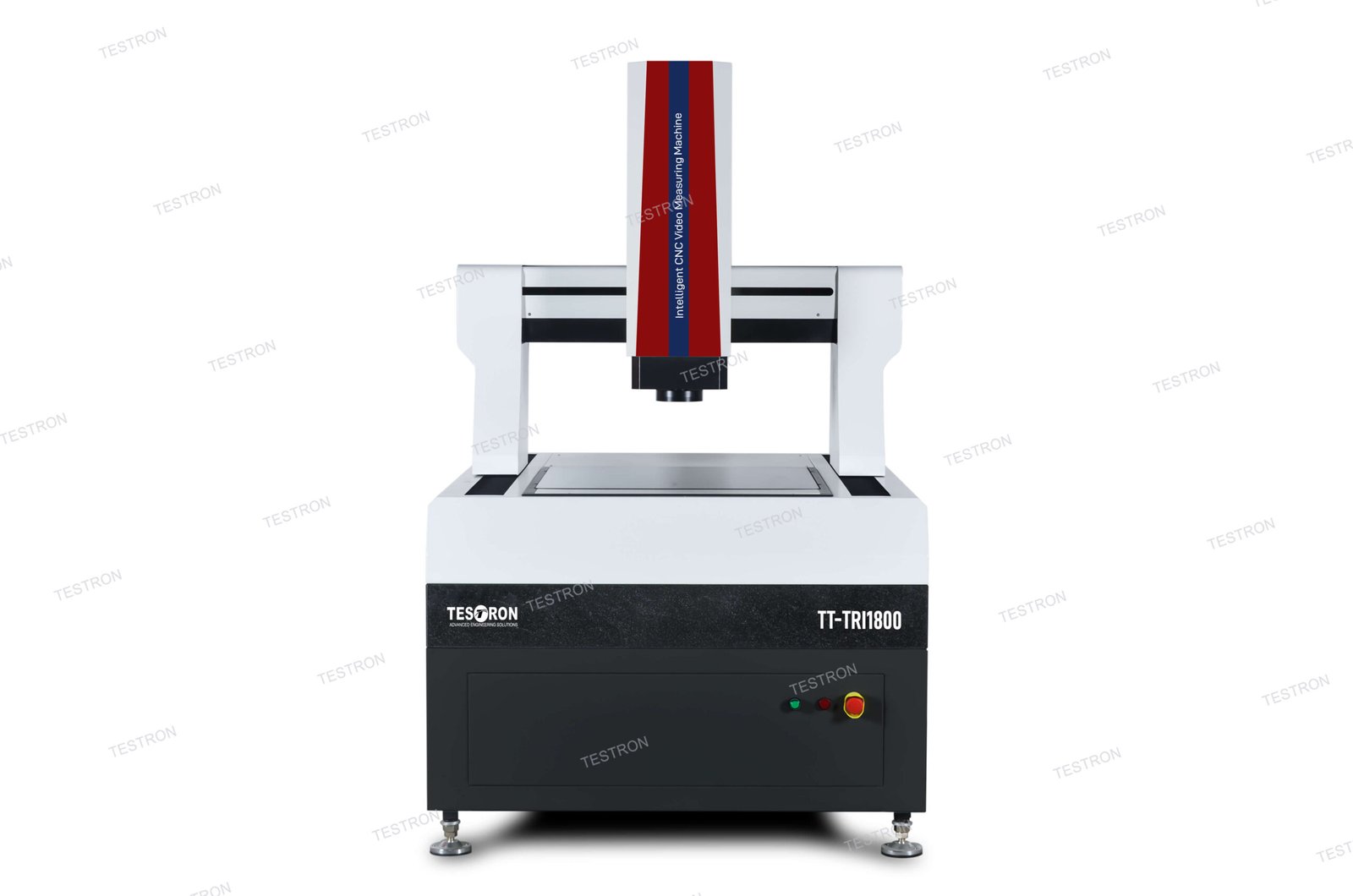

The Testron TT-TRI1800 is a high performance CNC video measuring system built for automated large-part inspection. It integrates a variety of sensors and advanced motion control features , offering flexibility for multiple measurement tasks. The system combines laser, touch probe, and white light sensors to accommodate a wide range of industrial inspection needs with micron-level accuracy.
Backed by a robust granite structure, intelligent software, and high speed optics, this machine empowers quality control teams to meet precision standards across diverse manufacturing sectors.
Applications of TT- TRI1800 Intelligent CNC Video Measuring Machine
The TT-TRI1800 is widely used for non-contact precision measurement in industries that demand high throughput and accuracy for large components, including:
- Pad Glass Production
- LCD & Display Modules
- Solar Panel and Photovoltaic Manufacturing
- Aerospace & Aviation Engineering
- New Energy Equipment
- Thermal Insulation Materials
This intelligent vision measuring system is ideal for first article inspection, in-process verification, and final product validation.
Features of TT- TRI1800 Intelligent CNC Video Measuring Machine
Wide range of accessories
- TT-TRI1800 supports multiple options of accessories, including touch probe, laser sensor, white light sensor, probe rack and laser profiler. It offers more solutions for users of different measuring tasks.
Advanced Multi-Sensor Integration
- Supports interchangeable accessories such as:-
- Touch probe
- Laser sensor
- White light sensor
- Laser profiler
- Probe rack
- Enables flexible and comprehensive measurement capabilities for varied surface types and dimensions.

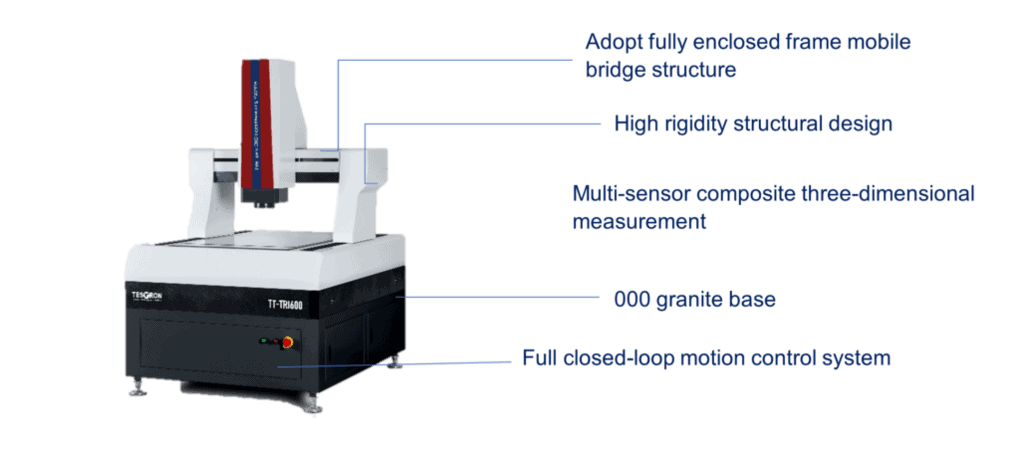

Superior Structural Stability and Rigidity
- Designed using finite element analysis (FEA) for optimal rigidity and mechanical accuracy.
- Features a closed-frame movable bridge structure for better motion stability and heavy-load handling.
- Equipped with a 000 grade granite base , ensuring corrosion resistance, thermal stability, and vibration damping for long-term performance.
Exceptional Measurement Accuracy
- Offers micron-level resolution and precision across all axes.
- Equipped with a full closed-loop motion control system for superior positioning and repeatability.
- Supports multiple fixturing presets and lens combinations to accommodate custom inspection setups and product varieties.
Automated & User-Friendly Operation
- Seamless integration with intelligent CNC metrology software, supporting:-
- Real-time image processing
- Automated measurement sequences
- 3D modeling and reporting
- Reduces operator intervention and increases inspection throughput.
Technical Specifications of TT- TRI1800 Intelligent CNC Video Measuring Machine
| Model | TT-TRI1800 | |
| Dimension (mm) (x/y/z) | 1900/2700/1800 | |
| Measuring Range (mm) (x/y/z) | 1200×1800×200 | |
| Measuring Accuracy (µ/m) | 3+L/200 | |
| Repeatability (µ/m) | 4µm | |
| Weight (Kg) | 4600kg | |
|
Image & measuring |
CCD | 1.3M pixel HD GIGA digital camera (5M pixel HD digital camera for option) |
| Lens | Fully automatic zoom lens 1~10X | |
| Magnification | 28-180X
(For reference only. With different camera and lens the magnification will be different) |
|
| Field of view | 8.5~1.3mm
(For reference only. With different camera and lens combination, the value will be different) |
|
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm (0.1 µm for option) | |
| Driving System | CNC control, AC fully closed loop servo motor drive, Joystick control, mouse/keyboard control | |
| Illumination | Programmable LED8 partition ring surface light, LED bottom parallel light
(optional: 40 partition ring light, coaxial light, adjustable color light source) |
|
