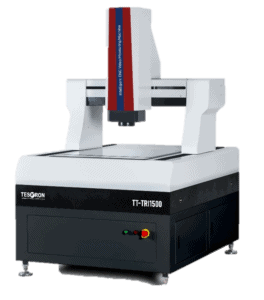

TT- TRI800 Intelligent CNC Video Measuring Machine Overview
The TT-TRI800 CNC video measuring system is engineered for precise measurement tasks that demand reliability and repeatability. With an intuitive design and flexible configuration options , it is ideal for quality control environments where accuracy and speed are critical. This intelligent vision measuring machine integrates multiple sensor technologies and a powerful motion control system, making it suitable for complex inspection applications.
Whether you’re conducting first article inspection, process verification, or final part validation, the TT-TRI800 provides the automation, stability , and performance to streamline your measurement processes.
Applications of TT- TRI800 Intelligent CNC Video Measuring Machine
The TT-TRI800 is ideal for high-precision non-contact dimensional inspection in a wide range of industries , including:-
- Pad Glass Manufacturing
- LCD Module Assembly
- New Energy Technology
- Thermal Insulation Material Evaluation
- Electronics and Micro-Component Fabrication
- Automotive Parts Verification
This CNC video measuring machine supports both routine quality control and specialized measurement needs.
Features of TT- TRI800 Intelligent CNC Video Measuring Machine
Multi-Sensor Capability for Complex Measurements
- Compatible with a variety of sensors, including:-
- Touch probe
- Laser sensor
- White light sensor
- Laser profiler
- Probe rack
- Supports multi-modal inspection tasks for diverse materials and surface types.

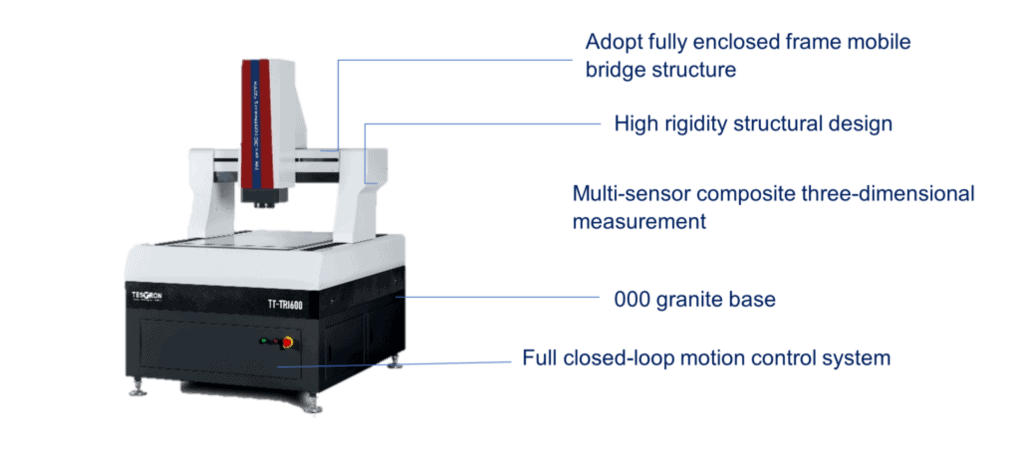

High Structural Rigidity and Stability
- Designed with finite element analysis (FEA) for optimal mechanical stability.
- Built with a closed-frame movable bridge structure to enhance motion precision and load capacity.
- Features a 000 grade granite base offering excellent vibration damping, corrosion resistance, and long-term dimensional stability.
Exceptional Accuracy and Repeatability
- Equipped with a full closed loop motion control system to ensure high-precision movement and positioning.
- Offers micron-level measurement resolution for intricate geometrical analysis.
- Multiple lens combinations and fixturing solutions available for custom setups.
User-Friendly Operation and Automation
- Seamless software integration for:-
- Real-time image analysis
- Automated part measurement sequences
- 3D data generation and reporting
- Reduces inspection time while improving operator productivity.
Technical Specifications of TT- TRI800 Intelligent CNC Video Measuring Machine
| Model | TT-TRI800
| |
| Dimension (mm) (x/y/z) | 1270/1830/1800 | |
| Measuring Range (mm) (x/y/z) | 600×800×200 | |
| Measuring Accuracy (µ/m) | 3+L/200 | |
| Repeatability (µ/m) | 3µm | |
| Weight (Kg) | 1800kg | |
|
Image & measuring | CCD | 1.3M pixel HD GIGA digital camera (5M pixel HD digital camera optional) |
| Lens | Fully automatic zoom lens 1~10X | |
| Magnification | 28-180X (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm (0.1 µm optional) | |
| Driving System | CNC control, AC fully closed loop servo motor drive, Joystick control, mouse/keyboard control | |
| Illumination | Programmable LED8 partition ring surface light, LED bottom parallel light (optional: 40partition ring light, coaxial light, adjustable color light source) | |
