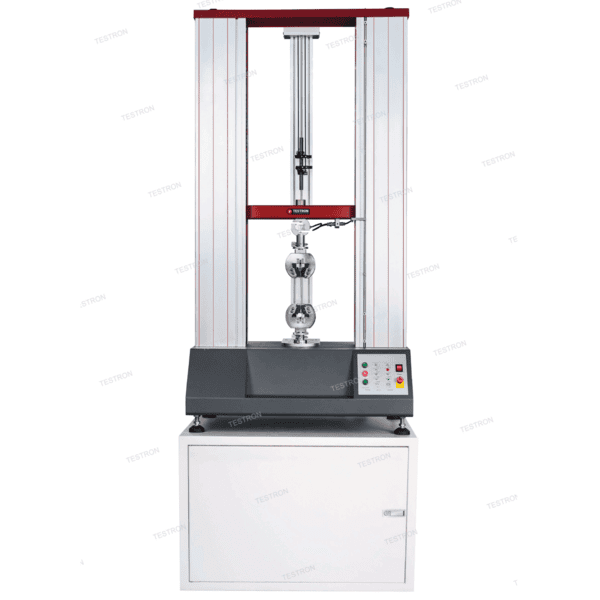

Application of TT-DC0005 5KN Bench-top Double Column Universal Testing Machine
It is commonly applied in material analysis in Auto-parts, fastener, Aerospace, cable and wire, plastic and rubber, paper packing industries
It’s a testing equipment which is needed by scientific research institutes, universities, industrial enterprises, technical supervision, inspection and arbitration department.
Test Standards of TT-DC0005 5KN Bench-top Double Column Universal Testing Machine
GB/T 16491-1996, JJG475-2008
Features of TT-DC0005 5KN Bench-top Double Column Universal Testing Machine
- Advanced chipping technology and Professional design
It is highly integrated, reliable and convenient. The control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity and elongation. With its open formula edition function, it allows automatic calculation of force, tension displacement deformation at any designated point.
- With control mode
Fixed speed, fixed displacement, fixed loading, fixed load increasing rate, fixed tension, fixed tension increase rate.
- Automatic resetting
The measurement system automatically zero after the test starts
- Automatic shift
Automatically switch to the appropriate range according to the load size to ensure the accuracy of the measurement data
- Automatic saving
Automatic storage of test data and test conditions, to eliminate data loss.
- Can conduct batch testing
For the same parameters of the sample, a batch of tests can be completed in sequence after setting.
- Display mode
Data and curve dynamic display with the test process.
- Curve display
After test completion, the curve can be re-analyzed by using the mouse to find out the data corresponding to each point on the test curve.
- With curve selection
Stress-strain, force-displacement, force-time, displacement-time and other curves can be selected for display and printing.
- Unit switching
Force unit: (g, kg, N, lb), Stress unit: (kg/mm2, N/mm2, Mpa, lbf/in2), Displacement unit: (m, mm, in)
- Test report format options
Test reports are editable and can be printed according to the desired format (Excel, Word etc)
- Security protection
More than 2 ~ 10% of the maximum load, automatic security protection.
It can automatically detect and calculate the mechanical properties of the sample and can also manually intervene in the analysis process to correct the automatic analysis results according to the requirements of relevant standards to improve the accuracy of the data
Technical Specifications of TT-DC0005 5KN Bench-top Double Column Universal Testing Machine
| Model | TT-DC0005 |
| Maximum testing force | 5kN |
| Precision level | greater than 0.5 |
| Range of testing force | 2%—100%FS |
| Relative force indication deviation | ±0.5% within indication |
| Test force resolution | 1 / ±500000 maximum test force unchanged (resolution) |
| Relative deviation of displacement | ±0.5% within indication |
| Displacement resolution | 0.0005mm |
| Regulation range of force control rate | 0.1-2%FS/S |
| Relative deviation of force control speed | within ±0.5% of set value |
| Crossbeam speed adjusting range | 0.05-500mm/min |
| Relative deviation of crossbeam speed | 0.5% within set value |
| Constant force, constant deformation and constant displacement control range | 0.5%–100%FS |
| Constant force, constant deformation, constant displacement control precision | when set value <10%FS, it is within ±0.5% of the set value when set value ≥10%FS, it is within ±0.1% of the set value |
| Maximum stretch stroke | 1100mm |
| Effective stretching space (net space) | 680mm |
| Effective testing width | 420*420mm |
| Dimension | 840*500*1650mm |
| Power | 220V 50Hz 0.75kW |
| Weight | about 180kg |
Standard Configuration of TT-DC0005 5KN Bench-top Double Column Universal Testing Machine
| Item | Description | Qty |
| Load sensor | USA Keli high precision sensor 5kN | 1set |
| Testing software | 64bit test board + English interface | 1set |
| Motor control | Taiwan Delta B2 servo motor + servo driver | 1 set |
| Deceleration system | Jiaoxing precision reducer | 1 set |
| Drive rod | Taiwan TBI high-precision ball screw | 2pcs |
| Testing computer | Lenovo business computer M2601C 4g rom + HP printer | 1set |
| Test fixture | Customized | 1set |
| Operation manual | – | 1pc |
| Quality certificate | – | 1pc |
| Warranty card | – | 1pc |
