Test Standards:
ASTM D4809, ASTM D240, GBT/384, GBT/21

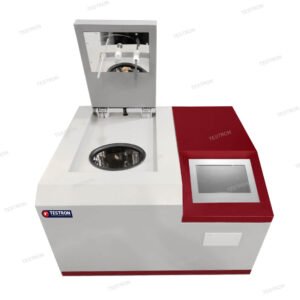

Features of TT-BC1.5A Automatic Bomb Calorimeter:
- Simple structure, reliable performance and strong anti-interference ability.
- Automatic control to avoid human error and improves accuracy and precision.
- With unique calibration technology makes the requirements of the instrument to the environment relatively relaxed. The accuracy of the test is improved and ensures the stability of long-term operation.
Product Structure of TT-BC1.5A Automatic Bomb Calorimeter:
- Main structure of calorimeter: The host of calorimeter includes shell, water tank, control system, user interface and so on .
- The water tank is made of stainless steel and plastic.
Technical Specification of TT-BC1.5A Automatic Bomb Calorimeter:
| Model | TT-BC1.5A |
|---|---|
| Heat capacity | about 10500 J/K |
| Oxygen bomb capacity | 300ml |
| Oxygen charging pressure | 2.8 ~ 3.2 MPa |
| Pressure resistance | water pressure 20MPa |
| Temperature range | 0~40℃ |
| Response time | < 4 S |
| Resolution | 0.0001 ℃ |
| Linearity | < 0.08% per 5 ℃ temperature rise range |
| Temperature measurement error | ± 0.003 ℃ for every 5 ℃ temperature rise range |
| Humidity | ≤ 80% |
| Overall dimension | 650 * 450 * 500 mm |
| Weight | 2.5 kg |
| Power supply voltage | AC220V ± 10% |
| Power | 30W |
| Ignition voltage | AC24 V |
| Ignition time | 5s |
Standard Configuration of TT-BC1.5A Automatic Bomb Calorimeter:
| Item | Quantity |
|---|---|
| Main host | 1 |
| Power cord | 1 |
| Oxygen bomb | 1 |
| Oxygen flushing instrument | 1 |
| Pressure gauge | 1 |
| Ignition wire | 2 |
| Cotton | 1 |
| Benzoic acid | 1 |
| Tweezers | 1 |
| Sample injector | 2 |
| Printing paper | 2 |
| Oxygen bomb support | 1 |
| Crucibles | 3 |
| Oxygen bomb sealing ring | 2 |
| Small scissors/td> | 1 |
| Operating manual | 1 |
| Warranty certificate | 3 |
| Quality certificate | 3 |
| Inspection & Calibration report | 1 |
