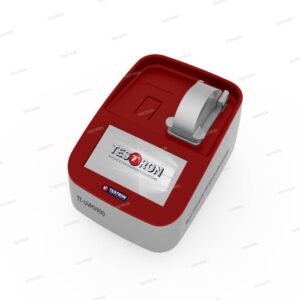

Application of TT-UVMV900 Micro-Volume UV-VIS Spectrophotometer
TESTRON TT-UVMV900 Micro-Volume UV-VIS Spectrophotometer is an instrument used for quantitative and quantitative analysis by spectrophotometry and is usually used in qualitative research of nucleic acid, proteins and bacterial concentration.
It is wildly applied in research of physics, chemistry, biology, medicine, material, environment and modern production management of chemistry, environment test and metallurgy.
Features of TT-UVMV900 Micro-Volume UV-VIS Spectrophotometer
- Microscale sample test minimum 0.3ul, ultromicro and cuvette are applicable.
- Wildly test area, 500 times of the traditional spectrophotometer.
- No need to dilute samples.
- Can do the test directly and no need to warm-up the device.
- The whole wavelength is 190-1100nm, accuracy 1nm and auto scanning wavelength is 190-900nm.
- Compact size and portable, fit for on-site test.
- Accurate and flexible measurement is achieved through PC control.
Technical Specifications of TT-UVMV900 Micro-Volume UV-VIS Spectrophotometer
| Model | TT-UVMV90 |
| Minimum sample size | 0.5ul-2ul |
| Wavelength range | 190-900nm |
| Optical distance | 0.02-1mm continuous exposure, automatic switching |
| Cuvette optical distance | 10mm/5mm/2mm/1mm |
| Wavelength accuracy | 1nm |
| Wavelength resolution | 1nm |
| Absorbance accuracy | +1% (0.76 at 260nm) |
| Absorbance resolution | 0.002Abs (at 1mm optical distance) |
| Absorbance range | 0-750A (10mm equivalent) |
| OD600 absorbance range | 0-4.000Abs |
| OD600 absorbance stability | [0,3) < 0.5%, [3,4) <2% |
| OD600 absorbance repeatability | [0, 3) < 0.5%, [3, 4) <2% |
| Nucleic acid detection range | 1.5-37500ng/ul(dsDNA), Lower limit 1.5ng/ul |
| Protein detection range | 0.05-1110mg/ml (BSA),0.03-540mg/ml(gG) |
| Linearity of fluorescence detection | R2>0.996(UL-5000F) |
| Measurement of time | <3S |
| LCD | 7-inch touch screen Android System |
| Detector | UV-enhanced CMOS linear array sensor |
| Light source | Xenon flash lamp Flicker 10° times, life up to 10 years |
| Dimension | 310*221*176mm |
| Peculiarity | The principle of fixed optical path lifetime without correction, can detect volatile solvent samples |
