Application of TT-ICP-S58 Inductively Coupled Plasma Emission Spectrometer – Sequence Scanning
- Rare earth metal
- Silicon materials, magnetic materials processing industry
- Metallurgical industry: analysis of impurity elements influencing the quality of metal materials Water quality control
- Geology, mineral
- Petrochemical: measurements of more than 30 elements in crude oil
- Pharmacy, hygiene, agriculture, environmental protection, commodities and food industry
Features of TT-ICP-S58 Inductively Coupled Plasma Emission Spectrometer – Sequence Scanning
- Over 70 elements can be measured
- Fast analysis, 5-8 elements per minute
- Excellent detection limits, at ppb level for most elements
- Wide linear dynamic range, reaching 6 orders of magnitude, from ppb to percentage
- Lower gas consumption: Each argon gas cylinder can be used for 8 hours
Advanced Structure & Optimized details for accuracy, stability and reliability.
- Advanced optical design with a fully illuminated holographic grating, with spectral interference correction and high light throughput for improved detection limits.
- Wide wavelength range:
:190nm to 500nm with 3600-line grating
:190nm to 800nm with 2400-line grating
- Computer controlled plasma platform optimizes the viewing position to reduce interferences, improve SNR and minimize background emissions.
- Software controlled flow of carrier gas, plasma and auxiliary gas provide real time monitor as well as highly stability of flux
- Various types of torches, nebulizer as well as spray chamber are optional
- Choice of auto sampler greatly improves efficiency
- Sample waste drained by peristaltic pump ensures stable flow rate; fast pump mode improves productivity
- The brand new robust free running, 27.12 MHz RF generator that delivers unsurpassed performance
Rapid and accurate automatic coupling system ensures the ultimate power transfer efficiency and stability

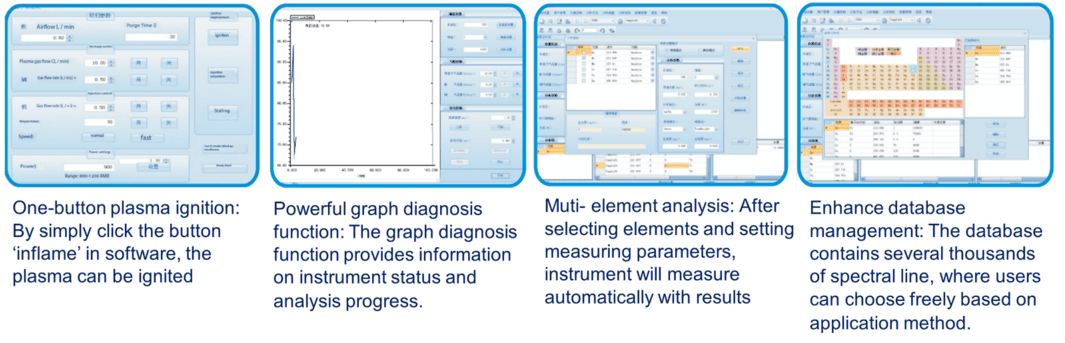

Strong and User-friendly software
The professional software provides excellent features and multi access to functions as follow:
Data management quantitative analysis, test parameter setting, one button report generation, background and interference correction, fast calibration mode, instrument status indication, and online self-diagnostic
Software with simple design and easy to operate
Technical Specifications of TT-ICP-S58 Inductively Coupled Plasma Emission Spectrometer – Sequence Scanning
| Model | TT-ICP-S58 | ||
| Suitable sample content image | Liquid sample: 0.01ppm ~ several thousand ppm | ||
| Solid or powder sample: 0.001% ~ 70% | |||
| Repeatability | Short-term stability, RSD ≤1.5% | ||
| Long term stability, RSD ≤2 % | |||
| Test speed | 5~8 elements/min | ||
| Limitation of detection (LOD, µG/L) for typical elements | 1ppb~10ppb | ||
| Solid State Power | Frequency | 27.12 MHZ | |
| Frequency Stability | >0.05% | ||
| Matching | Auto match | ||
| Output Power | 800w~1600w, continuously adjustable with power efficiency more than 65% | ||
| Output Power Stability | ≤0.05% | ||
| Induction Coil | ID 25mm×3, equipped with three concentric quartz torch tubes of ED 35MM(ID: internal diameter; ED external diameter | ||
| Spray Chamber | Scott double pass spray chamber | ||
| Monochromator | Optical type | Czery turner | |
| Focal length | 1000mm | ||
| Resolution | ≤ 0.015nm (3600 line grating) ≤ 0.030nm (2400 line grating) | ||
| Grating specification | Huge holographic grating with 3600L/mil or 2400L/mil and 80mmx100mm of ruling area | ||
| Wavelength range | 195-500 nm for 3600-line grating | ||
| 195-800 nm for 2400-line grating | |||
| Electronic Measurement Control Circuit | Photomultiplier tube specification | R212/R928 | |
| Negative high voltage | (-50~-1000) V | ||
| Circuit measuring range | (10-12 ~ 10-4) A | ||
| Signal acquisition | VF conversion | ||
| Computer | Lenovo PC | ||
| Monitor | 17 Inches LCD Monitor | ||
| Printer | Canon inkjet | ||
| Main power supply | AC 220V, Current:20A | ||
| Machine Size | Desktop, 1.5m×0.8m×0.8m | ||
| Working Environment | Temperature for storage and transportation | 15 ֠C- 25 ֠C | |
| Humidity for storage and transportation | ≤70% | ||
| Power stability | 220±10V | ||
| Humidity | ≤70% | ||
| Temperature | 15 ֠C- 30 ֠C | ||

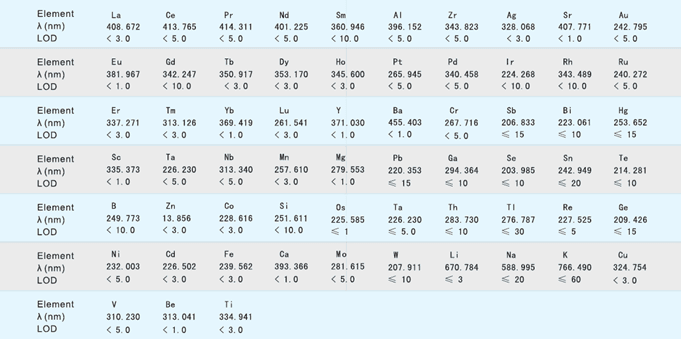

Detection limits for typical elements (here λ refers to wavelength) ( µG/L):

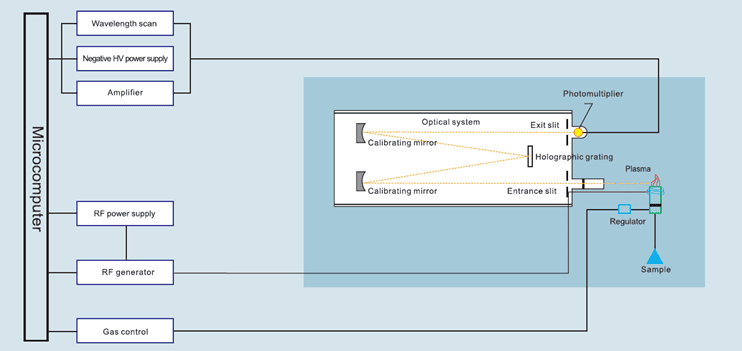

Product Structure Diagram of TT-ICP-S58 Inductively Coupled Plasma Emission Spectrometer – Sequence Scanning
Optional Accessories of TT-ICP-S58 Inductively Coupled Plasma Emission Spectrometer – Sequence Scanning
| Name | Qty |
| Windpipe | 1 |
| Gas pressure regulator | 1 |
| Water cooling system | 1 |
| Sampling system include nebulizer, spray chamber, plasma torch | 1 |
| Voltage stabilizer | 1 |
| Power cable | 1 |
| Copper cable for ground | 1 |
