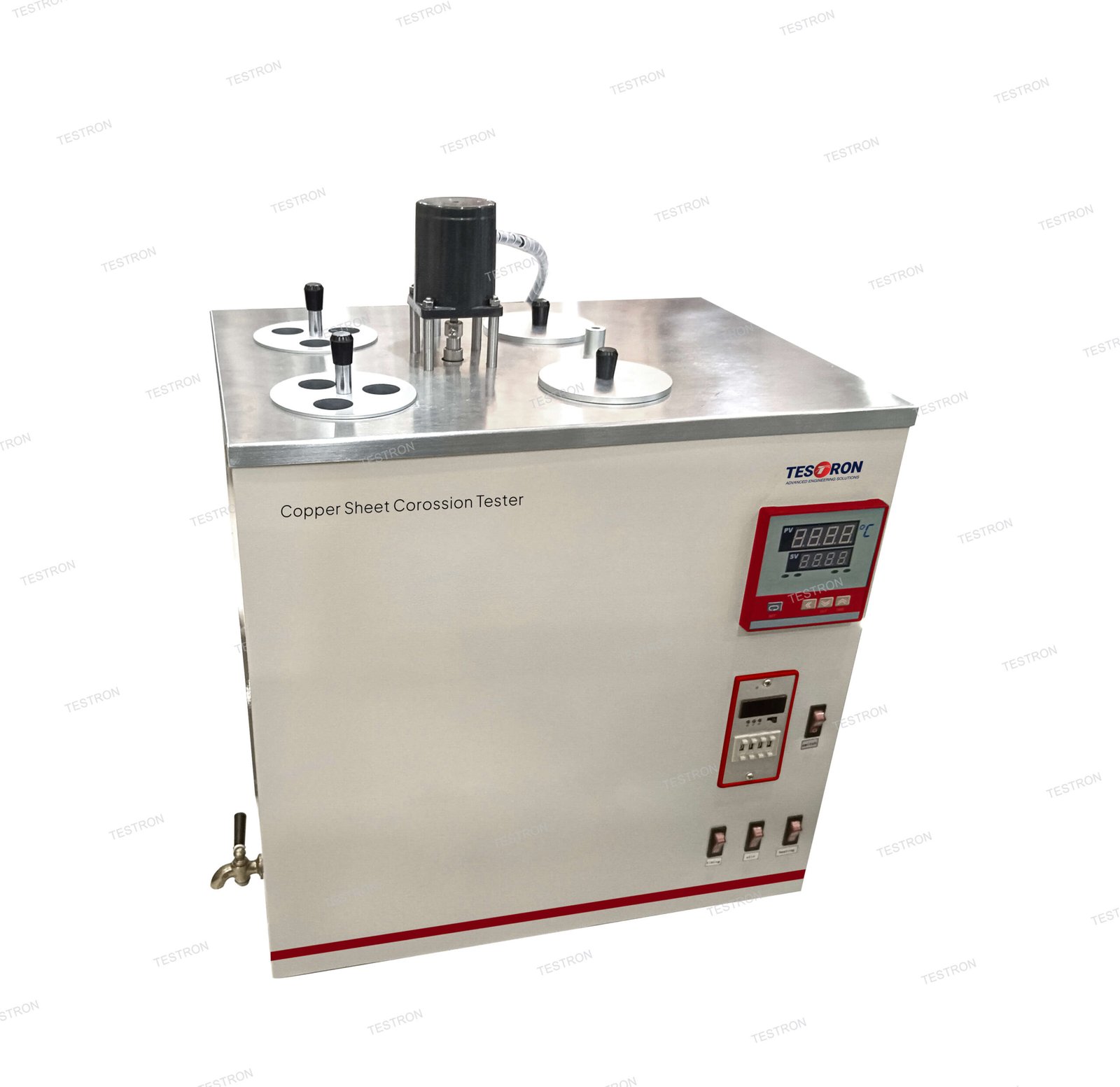

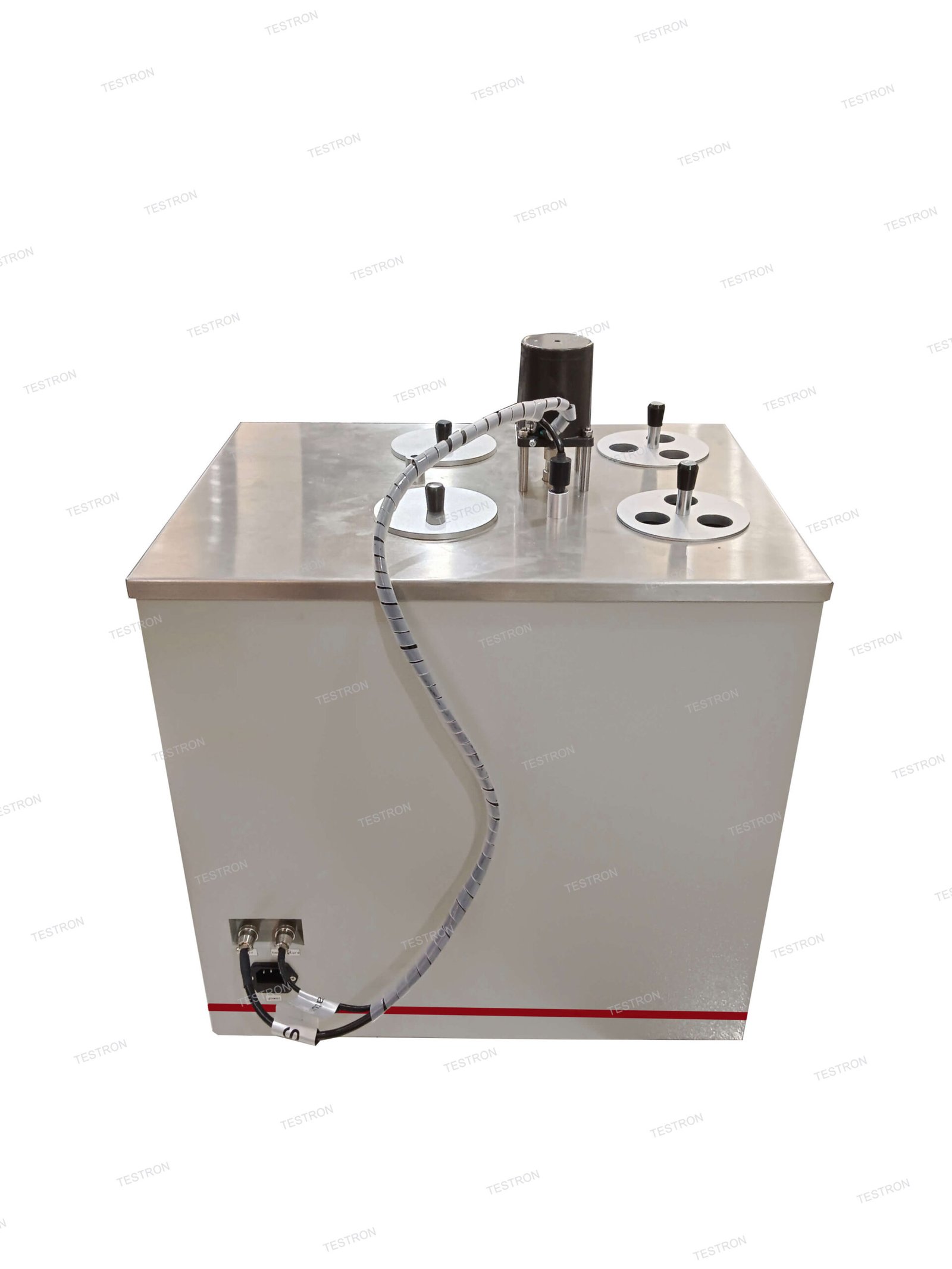

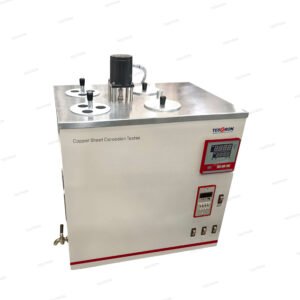

Test Standard of TT-HZ582 Copper Sheet Corrosion Tester
GB/T 5096 and ASTM D130
Application of TT-HZ582 Copper Sheet Corrosion Tester
It is a specialized instrument or test method used to evaluate the corrosive effects of gases, liquids, or environmental conditions on materials—typically lubricants, fuels, or fluids—by observing their impact on a copper test strip or coupon. It is commonly referred to in standards like the ASTM D130 Copper Strip Corrosion Test.
Features of TT-HZ582 Copper Sheet Corrosion Tester
- The instrument adopts intelligent measurement and control system with self-diagnosis function.
- The test bath is metal bath with precise temperature control.
- Copper strip corrosion test time and alarm can be set.
- PID temperature control technology is adopted.
Technical Specifications of TT-HZ582 Copper Sheet Corrosion Tester
| Model | TT-HZ582 |
| Temperature sensors | Industrial platinum resistance, with graduation number Pt100 |
| Temperature control range | Room temperature ~ 150℃ |
| Temperature control precision | ±0.1℃ |
| Temperature display | LED digital display |
| Heating power | 1500W |
| Timing range | 1 minute -24 hours |
| Time display
| LED digital display |
| Sample hole | 4 |
| Number of samples | 4-12 |
| Ambient temperature | Room temperature ~ 35.0℃ |
| Relative humidity | ≤85% |
| Overall power consumption | not more than 1800W |
| Working power supply | AC (220V±22V), 50Hz±5Hz |
| Overall dimension | 480mm×360mm×520mm (L×W×H) |
