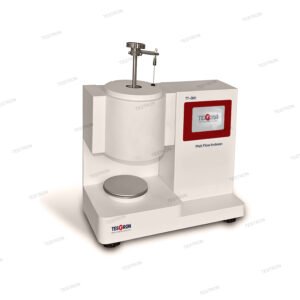

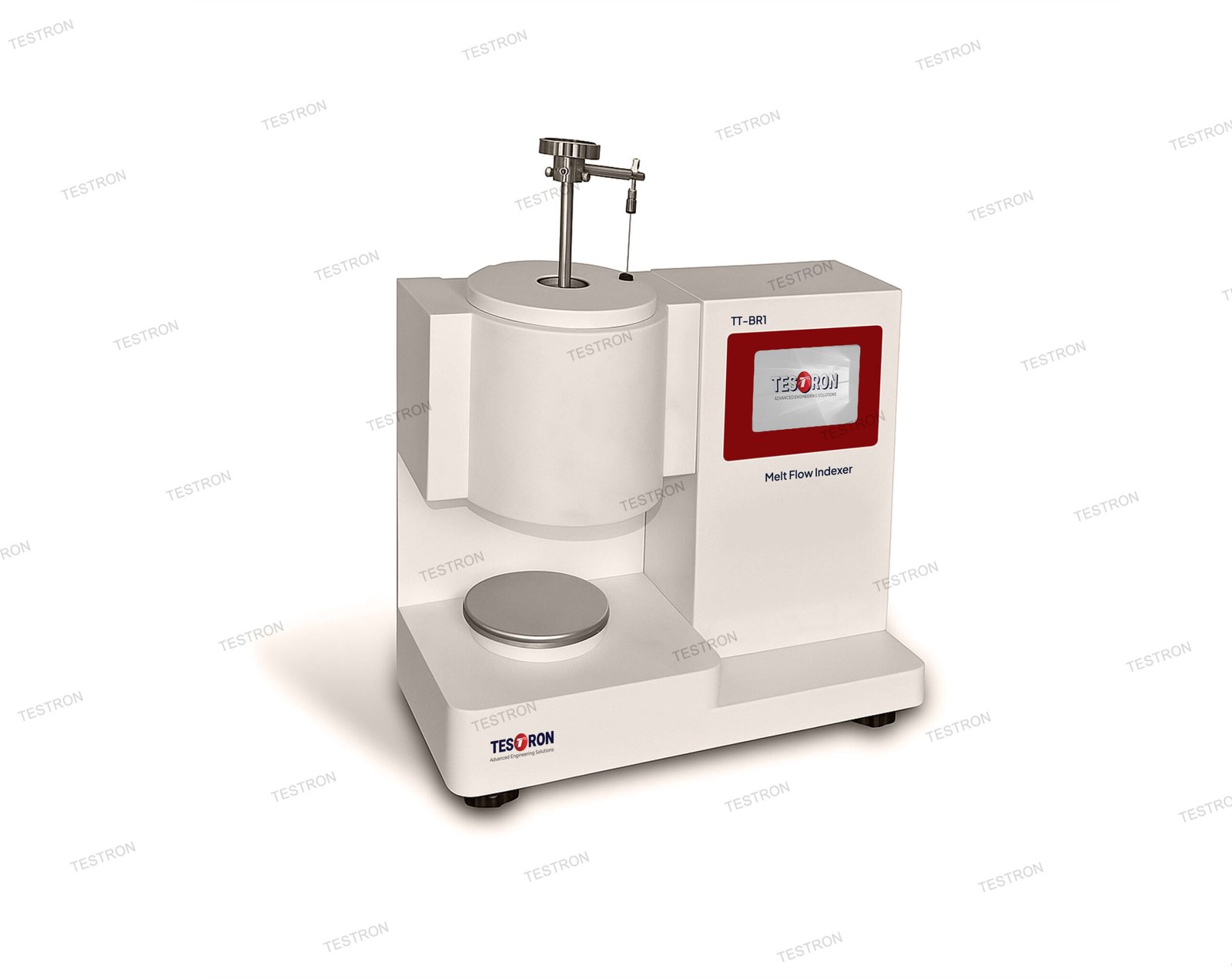

TT-BBR Melt Flow Indexer

Melt Flow Indexer to test the melt flow rate (MFR, unit: g/10min) of thermoplastic material in high temperature, such as polyethylene, polystyrene, polypropylene, ABS resin, acetal resin, polycarbonate, nylon, and fluoroplastic etc, widely used in industries of plastic material, plastic products, petroleum, chemicals, research institute, inspection agency and so son.

Melt Flow Indexer Standards:

ISO 1133, JG T5456, GB T9643, GB T3682

Melt Flow Indexer Working Principle:

Melt Flow Indexer makes the test material reach a molten state at a prescribed temperature in the high-temperature furnace. Such melt test material goes through a small hole of a specific diameter at a normative load, subjected to extrusion test. In the production of plastics, MFI is usually used to indicate the fluidity, viscosity, and other physical properties of polymers. Melt flow rate is expressed in the weight or volume of polymer per 10 minutes of the test or the average weight of each extruded material.

Melt Flow Indexer Specifications:

Test method	melt-mass flow rate method (MFR); melt-volume flow rate method (MVR)
Test range for MFR method	0~200g
Test range for MVR method	0~80cm3
Test accuracy of mess	0.01g
Auto test timing	0.1~999.9s
Temperature range	room temperature ~ 450 ℃
Temperature accuracy	± 0.1 ℃
Temperature fluctuation	≤ 0.5 ℃
Displacement accuracy	0.1mm
Material barrel temperature recovery time after adding sample	≤ 4min
Cutting mode	automatic timed cutting (0.1 ~ 999s)
Diameter of inside die	Φ2.095 ± 0.005mm
Diameter of material barrel	Φ9.550 ± 0.025mm
Standard load	3.187~211.82N (eight grades),load accuracy ≤ ±0.5%
Power	1000W
Power supply	AC 220V 50Hz
Instrument size	450mm x 200mm x 550mm
