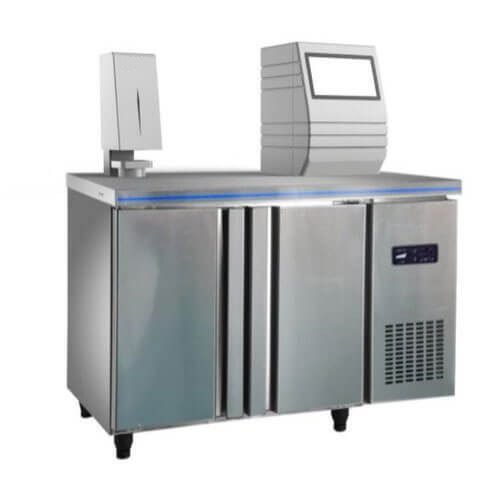

TT-KF 30010 Mask Particulate Filtration Efficiency Tester Standards:
ASTM F2100, ASTM F2299, NIOSH 42CFR, EN 149
TT-KF 30010 Mask Particulate Filtration Efficiency Tester Test Challenge:
| Particle Size(microns) | Test Challenge | Sensor Brand |
|---|---|---|
| 0.3 | Single Channel: NaCl | Temptop (USA) |
| 0.3 | Single Channel: DOP | Temptop (USA) |
| 0.3 | Two Channels: NACL+DOP with basic counter | Temptop (USA) |
| 0.3 | Single Channel: NaCl | PCE (USA) |
| 0.3 | Single Channel: DOP | PCE (USA) |
| 0.3 | Two Channels: NACL+DOP with advanced counter | PCE (USA) |
| 0.1 | Single Channel: LATEX | Thermo Fisher (USA) |
| 0.1 | Single Channel: LATEX with single light scattering counter | Kanomax, (Japan) |
TT-KF 30010 Mask Particulate Filtration Efficiency Tester Specifications:
| Item | Specification |
|---|---|
| Filtration Efficiency Detection Range | 0-99.999 % |
| Filtration Efficiency Detection Flowmeter Range | 10-100L/min |
| Pressure test range | 0-1000 pa |
| Filter Material Detection Particle Size | 0.1~10.0 µm |
| Particle counter test range | 0-400mg/m3 |
| Temperature range | 21℃±3℃ |
| Relative humidity range | 30 %~(50%±5% ) |
| Test challenge | Latex sphere, NACL, DOP |
| Standard Test Area | 100 cm 2 |
| Size | 1220*630*1225 mm |
| System Power Consumption | ＜1500 W |
| Weight | 250 kg |
| Power Supply | AC 220V / 50 HZ |
TT-KF 30010 Mask Particulate Filtration Efficiency Tester Features:
- Adopt cold-generation aerosol generator to produce continuous and stable aerosol particles, which is convenient for filling solution.
- The anti-leakage design of the whole particle to protect the safety of the experimenters.
- Aerosol generator: can produce salty particulate matter and oily particulate matter aerosol.
- Equipped with aerosol particulate static neutralization device.
- The pneumatic fixture is equipped with protection device, which is safe and convenient to use.
- Equipped with glass rotor flowmeter, vacuum pump and laser dust particle counter.
- Control system: The computer controls the test process, automatically collects data, and configures special computers and test software.
- The computer automatically tests the gas concentration and automatically calculates the filtration efficiency; it can save, output, query and print the test data.
- Touch screen control, simple and intuitive operation.
TT-KF 30010 Mask Particulate Filtration Efficiency Tester Configuration:
- Integrated aerosol generator
- Air dryer
- Vacuum pump
- Particle counter
