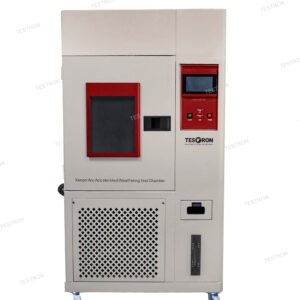

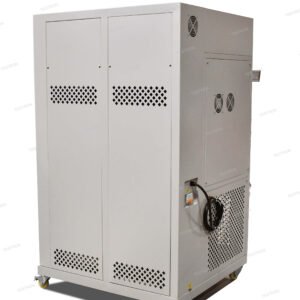

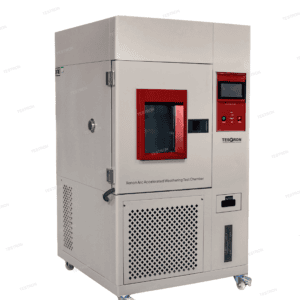

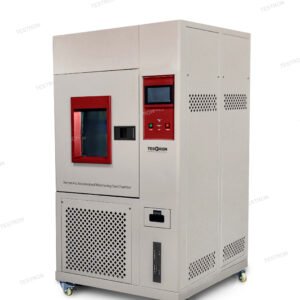

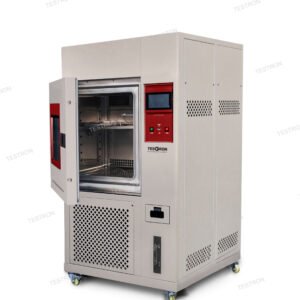

Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber
Xenon Arc Accelerated Weathering Test Chamber

Xenon Arc Accelerated Weathering Test Chamber

To perform weathering test, colorfastness tests, aging test, hardening test, softening test, and crack. Accelerated weathering test methods included ISO4892, ASTM G155-1/155-4, ISO 105-B02/B04/B06, ISO11341, AATCC TM16, TM169, JIS L0843, SAEJ1960/1885, JASOM346, and many others. Furthermore, xenon weathering chambers can place 42 pieces of specimens, are an upgrade to a programmable controller and Ethernet access.

Inquiry Now

Categories: , Tags: , , ,

Xenon Arc Test Chamber Features:

  • 4500 W water-cooled Xenon arc lamp system
  • Total 42 pieces of specimens capacity
  • Measurement and control of Irradiance: 340nm, 420nm or 300-400 nm, 280-800nm
  • Measurement and control of Black Panel Temperature( BPT)
  • Measurement and control of Chamber Temperature
  • Measurement and control of Chamber relative humidity
  • Programmable color display touch screen controller
  • Ethernet & USB
  • Automatic water spraying system
  • Build-in water reservoir and automatic water supply
  • Large viewing window on the door
  • Sample holders and casters are standard
  • Safety protection system
  • Test methods included ISO4892, ASTM G155-1/155-4, and many others.
  • CE mark, ISO17025 calibration

Xenon Arc Test Chamber Models:


Model Internal Dimensions D*W*H Overall Dimensions D*W*H Chamber Temperature Range Irradiance Range
XL-S-750 950*950*850 mm 1300*1420*1800 mm Ambient ~100℃±2°C 35 ~ 150 W/㎡@300-420nm, 340nm, 420nm
XL-750 950*950*850 mm 1300*1420*1800 mm Ambient ~100℃±2°C 100~1200 W/m2 @ 280nm ~800nm

Xenon Arc Test Chamber Accessories:

Number Name Description
No.1 Xenon lamp Water Cool Xenon Arc Lamp 4500W
No.2 Sample holder Material: 304 stainless steel; Xenon-holder size : 95*200mm; Thickness: 5mm
No.3 Temperature heater Temperature heater Description: Nichrome heater Power：2000W, and more
No.4 Humidity heater Humidity heater Description: Nichrome heater Power：1000W

Related products

Walk-In Chambers walk in chamberWalk-In Chambers walk in chamber

Walk-In Chambers

Read more
UV Weathering Resistance Test Chamber supplier in USA, Canada, Germany, Italy, UAE, Egypt, Nigeria, AfricaUV Weathering Resistance Test Chamber supplier in USA, Canada, Germany, Italy, UAE, Egypt, Nigeria, Africa

UV Weathering Resistance Test Chamber

Read more
Rain and Spray Test ChamberRain and Spray Test Chamber

Rain and Spray Test Chamber

Read more
Water Immersion Tank, waterproof chamberIPX7 IPX8 Water Immersion Tank

IPX7 IPX8 Water Immersion Tank

Read more
Testron-high pressure high temperature water spray test chamberTestron-high pressure high temperature water spray test chamber

IPX9K High Pressure High Temperature Water Spray Test Chamber

Read more
testron Larger Sand and Dust Test Chamberstestron Larger Sand and Dust Test Chambers

Larger Sand and Dust Test Chambers

Read more
temp drying oven High Temperature Industry Drying Ovenstemp drying oven High Temperature Industry Drying Ovens

High Temperature Industry Drying Ovens

Read more
TT-5565HAST High Pressure Accelerated Aging Test ChamberTT-5565HAST High Pressure Accelerated Aging Test Chamber

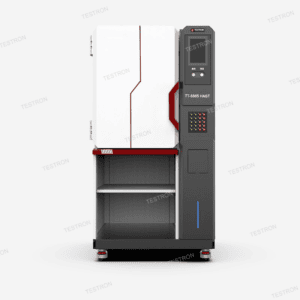

TT-5565HAST High Pressure Accelerated Aging Test Chamber
