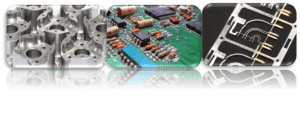

Application of TT-P400 Digital Vertical Profile Projector
It is widely used in mechanical manufacturing, mold and tool industries, electronics, and watchmaking for inspecting parts like cams, gears, threads, cutting tools, and stamped components.
Features of TT-P400 Digital Vertical Profile Projector
- Lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable.
- Coating process reflector, clearer image and great dustproof
- Adjustable contour and surface illumination, to meet with difference workpiece demand
- Imported high light and long using life LED illumination, to ensure precision measurement demand
- High resolution optical system with clear image and magnification error is less than 0.08%
- Powerful Bi-axial fan cooling system, highly increase using life
- Powerful and colorful DRO DP400, realized fast and accurate 2D Measurement
- Built-in Mini printer, can print and save data
- With standard 10X objective, optional 5X,20X,50X objective, rotary table, foot switch, clamp, etc.

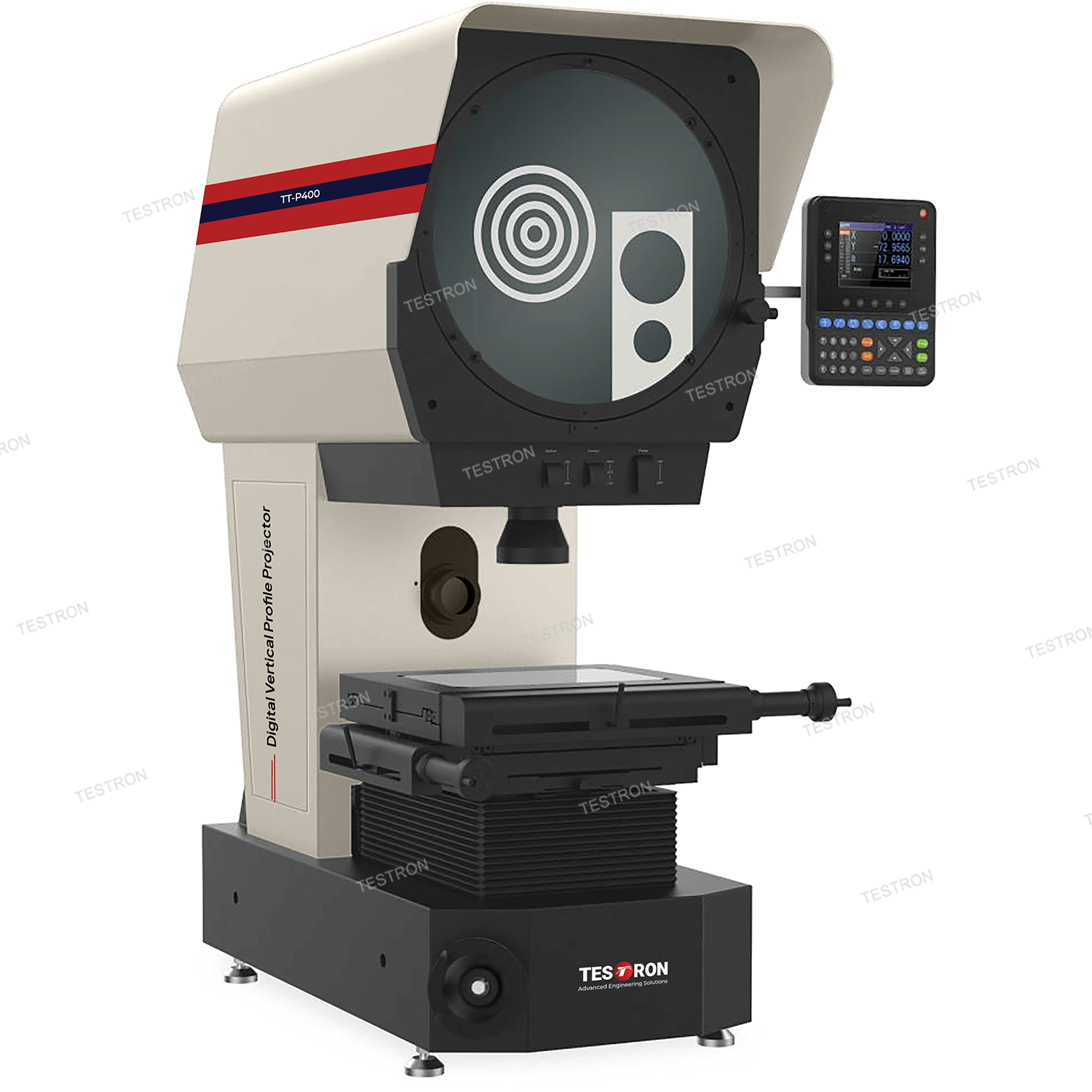

TT-P400 Digital Vertical Profile Projector Description:
●400mm diameter screen with digital protractor;
●Working stage lifting system to focus;
●Precision movement work-stage;
●Halogen profile and surface illumination adjustable;
●Geometric multifunction data processing system upgrade to DRO DP300;
●Built-in Mini-printer;
●Available 10x,20x,50x objective, rotary table, foot-switch, etc.
Technical Specifications of TT-P400 Digital Vertical Profile Projector
| Model | TT-P400 | |
| Reverse Image | TT-P400-2010 | |
| Obverse Image | TT-P400-2010Z | |
| Metal Stage Size | 308 x 408mm | |
| Glass Stage Size | 198 x 306mm | |
| Stage Travel: X and Y-axis | 200 x 100mm | |
| Product Dimension(L×W×H) | 1003x617x1309mm | |
| Packing Dimension(L×W×H) | 1200x800x1580mm | |
| Focusing | 100mm (for focusing) | |
| Accuracy | ≤3+L/200(um) | |
| Resolution of X and Y-scale | 0.0005 mm | |
| Screen | Diameter: Ø412mm, Measurement Range ≥ Ø400 | |
| Rotation angle: 0~360°; Resolution: 1’ or 0.01° Accuracy: 6 | ||
| Digital Readout | DP 400 Multifunctional colorful LCD digital readout | |
| Illumination | Contour Illumination | 3.2V/10W LED |
| Surface Illumination | 3.2V/10W LED | |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH | |
| Power Supply | AC110V/60Hz; 220V/50Hz, 650W | |
| Gross/Net Weight | 280/230Kg | |
Objective Lens of TT-P400 Digital Vertical Profile Projector
| Magnification | 5X(OPT) | 10X(STD) | 20X(OPT) | 50X(OPT) |
| Field of view | φ80mm | Φ40mm | Φ20mm | Φ8mm |
| Working Distance | 65mm | 80mm | 67.7mm | 51.4mm |
Standard Configuration of TT-P400 Digital Vertical Profile Projector
| Items | Qty |
| Digital Readout DP400 | 1 |
| Built-in Mini-printer | 1 |
| Anti Dust Cover | 1 |
| 10X Objective Lens | 1 |
| Power Cable | 1 |
| Screen Clamp Device | 1 |
| Warranty Card | 1 |
Optional Accessories of TT-P400 Digital Vertical Profile Projector
| Items | |
| 5X Objective Lens | Swivel Center Support
|
| 20X Objective Lens | Holder with Clamp
|
| 50X Objective Lens | V-block with Clamp
|
| Φ400mm Over-Chart
|
Foot Switch ST150
|
| 300mm Reading Scale
|
Edge Finder SED-400
|
| Working Cupboard
|
Rotary Tables RT1
|
| Rotary Tables RT2
|
Rotary Tables RT3
|
