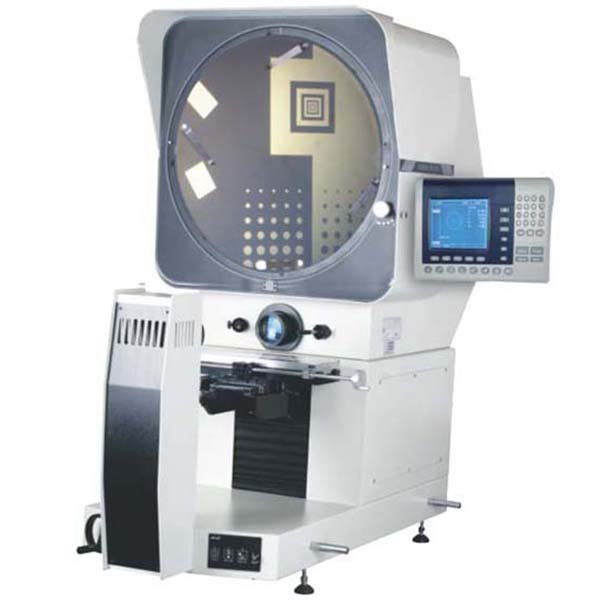

TT-B600 Digital Horizontal Profile Projector Description:
- 600mm diameter screen with digital protractor;
●300x150mm precision movement work-stage, 300x200mm optional;
●Work-stage sway range between 15°;
●Halogen profile and fiber surface illumination adjustable;
●Geometric multifunction data processing system DRO DP300;
●Built-in Mini-printer;
●Available 10x,20x objective rotary table, working cupboard and foot-switch, etc.
TT-B600 Digital Horizontal Profile Projector Specifications:
| Reverse Image | TT-B600-3015 |
| Obverse Image | TT-B600-3015Z |
| Metal Stage Size | 455 x 126mm |
| Stage Travel: X and Y-axis | 300 x 150mm |
| Stage Travel:Z-axis | 75mm (for focusing) |
| X and Z Linear Resolution | 0.0005 mm |
| Sway Range | ±15° |
| Accuracy | ≤3+L/200(um) |
| Screen | Diameter :Ø625mm,Effective Range ≥ Ø600(with “* ” Reticle) |
| Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | |
| Digital Readout | DP 300 (561-301) Multifunctional Data Processing System |
| Illumination | Contour illumination:24v/150w (halogen Lamp ) |
| Surface illumination:21v/150w (Optical Fiber) | |
| Power Supply | AC110V/60Hz; 220V/50Hz, 650W |
| Dimension (D×W×H) | 1620 x750 x 1400mm |
| Packing Dimension (L×W×H) | 1790 x 890 x 1520mm |
| Gross/Net Weight | 300/250Kg |
TT-B600 Digital Horizontal Profile Projector Standard Delivery:
| Product Name | Product Name | Product Name |
| Digital Readout DP300 | 10X Objective | Screen Clamp Device |
| Built-in Mini-printer | Power Cable | Operation Manual |
