Application of TT-B400 Digital Horizontal Profile Projector
It is used for accurately measuring complex shapes and external dimensions of machine parts. It is essential in quality control, precision inspection, and reverse engineering processes. This instrument is commonly applied across various industries such as aerospace, automotive, tool and die making, and medical equipment manufacturing. It is particularly effective for inspecting components like gears, threads, cams, shafts, cutting tools, and turned parts, ensuring that they meet design specifications and manufacturing tolerances.
Features of TT-B400 Digital Horizontal Profile Projector
- Lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable.
- With precision toothless rod and fast movement locking device, ensure return error is within 2um.
- High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200um.
- HD zoom lens and HD color digital camera, ensure clear image without distortion.
- With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently.
- With powerful Measuring software system, to enhance the control quality.
- Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine.

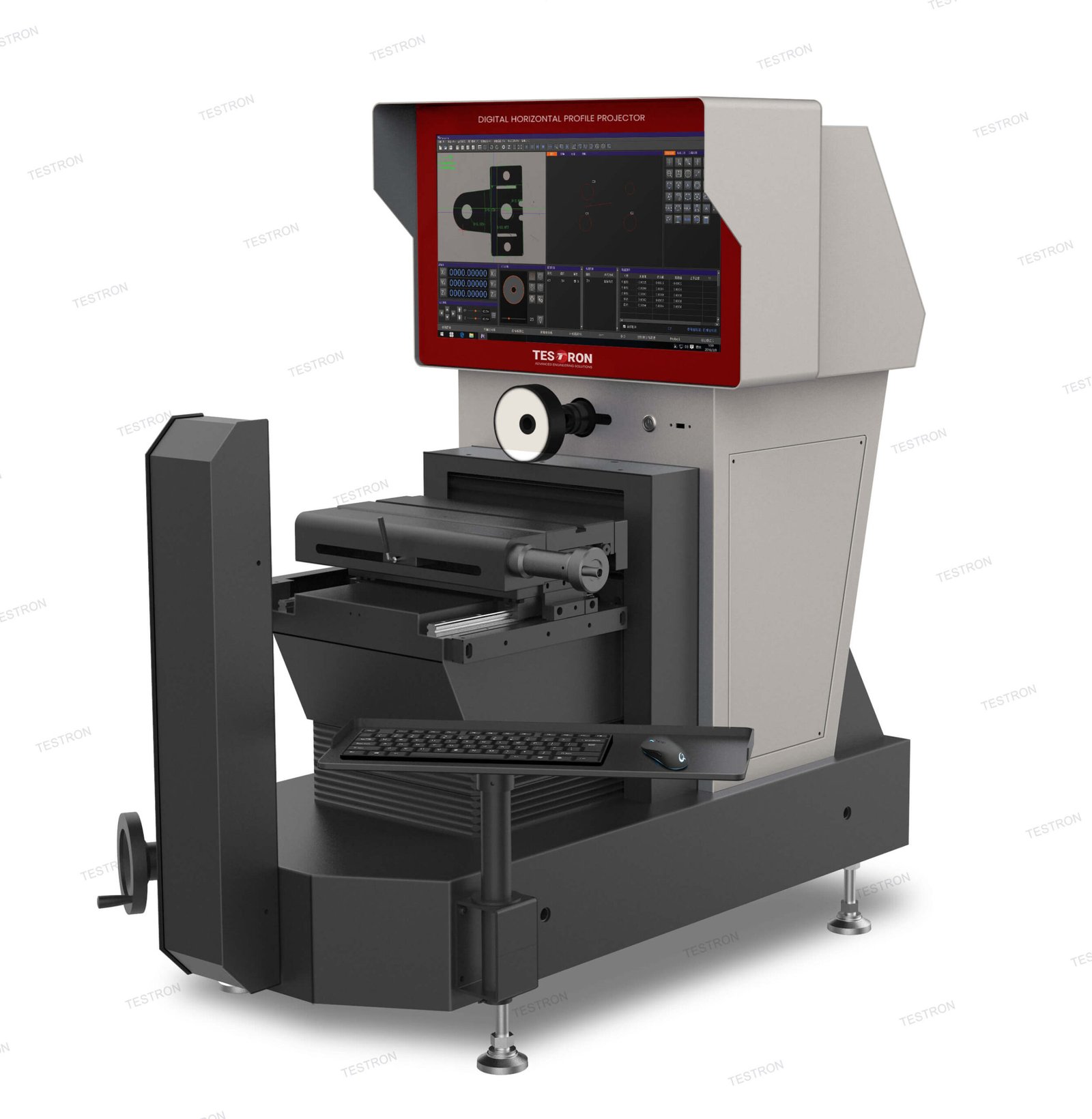

TT-B400 Digital Horizontal Profile Projector Description:
- 400mm diameter screen with digital protractor
- 300x150mm precision movement work-stage, 300x200mm optional
- Work-stage sway range between 15°
- Halogen profile and fiber surface illumination adjustable;
- Geometric multifunction data processing system DRO DP300
- Built-in Mini-printer
- Available 10x,20x,50x, objective rotary table and foot-switch, etc.
Technical Specifications of TT-B400 Digital Horizontal Profile Projector
| Model | TT-B400 |
| Code | #542-310
|
| Working Stage Travel | 355 x 125mm |
| Stage Travel: X and Y-axis | 200 x 120mm |
| Z Axis | 110mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005 mm |
| Camera | DDC 129 |
| Zoom Lens | HD 6.5X Detented Zoom Lens
|
| Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X
|
|
| Illuminating System
(Software Control) |
Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination
|
| Contour: LED Parallel illumination
|
|
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr，
Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ |
| Measurement Software | AC110V/60Hz; 220V/50Hz, 650W |
| System
|
Support XP, WIN7, WIN8，WIN10 32/64 Bit
|
| Power
|
AC110V/60Hz; 220V/50Hz,600W
|
| Dimension
|
1120X720X1100mm
|
| Weight | 165Kg |
Standard Configuration of TT-B400 Digital Horizontal Profile Projector
| Items | Qty |
| Main Unit | 1 set |
| Optical Calibration Plate | 1 pc |
| Dongle | 1 pc |
| Warranty Card | 1 pc |
| Instructional Manual | 1 pc |
