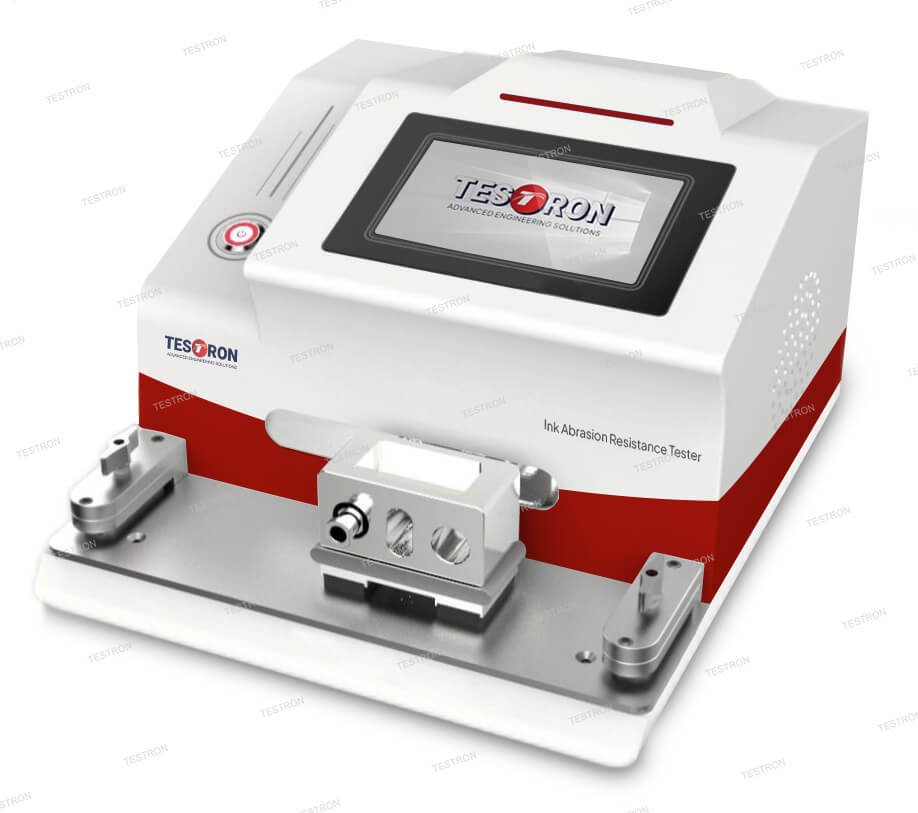

Test Principle of TT-XC2 Ink Abrasion Resistance Tester
Under a certain pressure, the sample is rubbed against the paper, and the degree of ink off the sample after a number of frictions is checked, and the scratch resistance of the sample can be known.
Test Standards of TT-XC2 Ink Abrasion Resistance Tester
GBT 17497.1, GBT 7705, GBT 7706

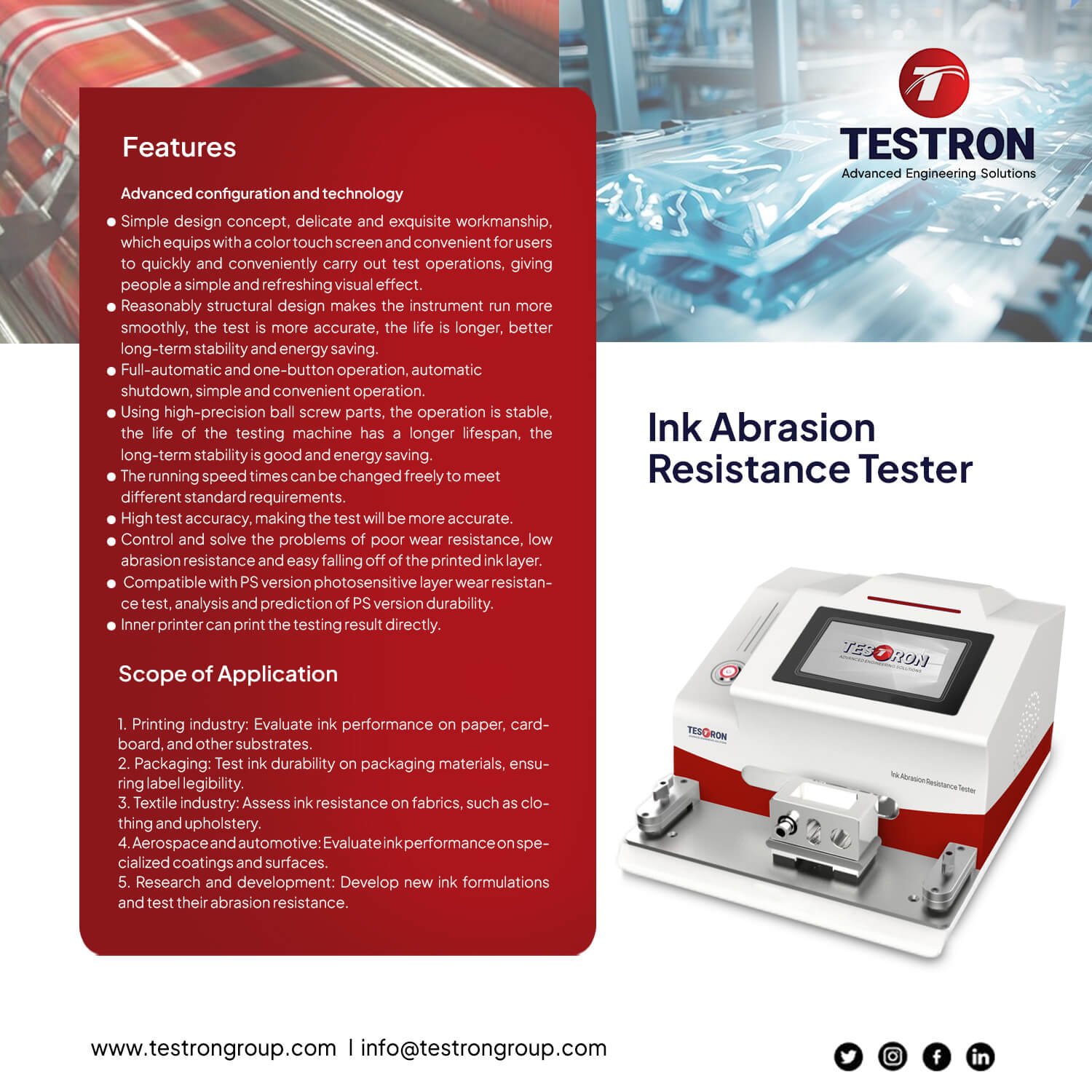

Features of TT-XC2 Ink Abrasion Resistance Tester
Advanced Configuration and Technology
- Simple design concept, delicate and exquisite workmanship, which equips with a color touch screen and convenient for users to quickly and conveniently carry out test operations, giving people a simple and refreshing visual effect.
- Reasonably structural design makes the instrument run more smoothly, the test is more accurate, the life is longer, long-term stability and energy saving.
- Full-automatic and one-button operation, automatic shutdown, simple and convenient operation.
- Using high-precision ball screw parts, the operation is stable, the life of the testing machine has a longer lifespan, the long-term stability is good and energy saving.
- The speed of running can be changed freely to meet different standard requirements.
- High test accuracy, making the test will be more accurate.
- Control and solve the problems of poor wear resistance, low abrasion resistance and easy falling from the printed ink layer.
- Compatible with PS version photosensitive layer wear resistance test, analysis and prediction of PS version durability.
- The inner printer can print the testing result directly.
Technical Specifications of TT-XC2 Ink Abrasion Resistance Tester
| Model | TT-XC2 |
| Friction pressure | 20±0.2N |
| Friction speed | 43 cpm (Times/ Min) |
| Friction area | 240 (L) ✕50 (W) mm |
| Number of rubs | 1~999999 times |
| Sample size | 320 (L) × 50 (W) mm (short specimens can be spliced) |
| Device size L×W×H | 440 mm × 400 mm × 200 mm |
| Power | 350W |
| Power supply | AC 220V，50 Hz |
| Weight | 20 kg |
Standard Configuration of TT-XC2 Ink Abrasion Resistance Tester
| Item | Description | Qty |
| Main unit | – | 1 |
| Power cord | – | 1 |
| Scratch seat | – | 1 |
| Power supply | 500w 220V, 10A | 1 |
| three-hole socket | ||
| grounding wire | ||
| Operating manual | – | 1 |
| Quality certificate | – | 1 |
| Warranty card | – | 1 |
