TT- X5000 Handheld Portable XRF Alloy Analyzer adopts photoelectron, microelectronics and semiconductor technology to deliver results in less than 2 seconds. TT- X5000 handheld alloy analyzer is the first to use large high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance equal to Desktop XRF. Small and lightweight , TT- X5000 can analyze any sample large or small, on the factory floor or in the field.
Application Field:
- Precious metal alloy
- Iron and steel smelting
- Aerospace industry
- Boiler pressure vessel
- Machinery manufacturing and processing
- Waste metal recycling
TT- X5000 Alloy Analyzer Advantages:
Easy Operation
- Lightweight and ergonomic design is more convenient to use in the field, heavy duty travel case ensures safe transportation of the instrument
- 5 inch high-definition screen with 360 degree rotation displays results clearly at low visibility conditions
- Waterproof and dustproof design, TT- X5000 XRF can be used in harsh environments
- Avoid sample preparation and directly measure raw materials in the field or in the lab with Portable table stand
Best Performance
- Rapid nondestructive detection and quick measurement with results within two seconds. With performance similar to most benchtop XRF Models, Explorer XRF sets a new standard for Handheld XRF Analyzers
- Fast analysis of Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S. Other elements can be easily added as per customers application
- Detect the light elements without helium gas
Extended Battery Life
- Rechargeable 9000mAh lithium battery with up to 12 hours work time on a single charge
- Optional 27000mAh lithium battery with up to 3 days work time on a single charge
Intelligent Software
- TT- X5000 XRF analyzer comes with our newest software which simplifies user training and operation. Unlike other Handheld XRF Spectrometers , Explorers easy-to-use interface allows anyone to operate the instrument
- The software features two user modes: Operator mode-simplifies operation with one step testing for quick day-to-day testing by inexperienced staff. Expert mode – for experienced users looking for in-depth analysis and advanced features
Technical Specifications:
| Analytical Method | Energy dispersive X ray fluorescence analytical Method |
| Elements Measuring Range | Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured |
| Simultaneous detector elements | Simultaneous analysis 40 elements |
| Microcomputer system | Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data |
| The content range | ppm～99.99% |
| The detection time | 1-60 seconds (a second report results) |
| A built-in system | GPS, WIFI, Bluetooth |
| Power Supply | Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh super battery with wide voltage 110V ~ 220V universal adapter for recharging power supply |
| Detection Objective | Solid, liquid, powder |
| Detector | SDD detector or Fast-SDD detector (optional) |
| Detector resolution | Minimum can reach 128eV |
| The excitation source | 50KV/200uA- silver target end window integrated miniature X ray tube and high voltage power supply |
| Collimator and filter | Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions |
| Video system | 500W pixel high resolution camera |
| Display screen | Brand new 5 inch transflective LCD touch screen, the resolution is 1080×720 |
| Detection limit | The minimum detection limits at 1 ~ 500 ppm |
| Safety | Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument |
| Specialty | Ore special edition analysis software, using intelligent one key test |
| Convenience of application | Key intelligent matching the best curve that no need to select curve |
| Data transmission | Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected with a desktop computer |
| Operating ambient humidity | ≤90% |
| Operating environmental temperature | -20℃～+50℃ |
| Instrument dimension | 244mm（Length）x 90mm（Width）x 330mm（Height） |
| Instrument weight | 1.7Kg |
| Intelligent warning signals Indicator system | Green light means power on, red flushing means testing and yellow flushing means the problems |

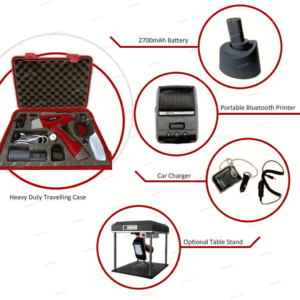

| Accessories | Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger, 4G SD memory card and card reader Two lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and other options can to choose… |
