Application of TT-VB Series Video Borescope
It is widely used in aerospace, automobile manufacturing, automotive aftermarket, police safety, energy and power, military manufacturing, special inspection system, petrochemicals, food medicines machines, machine casting, rail transportation, municipal pipelines, etc

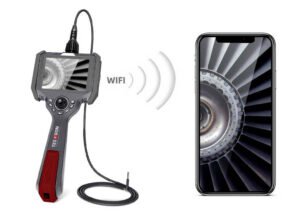

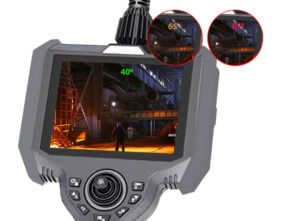

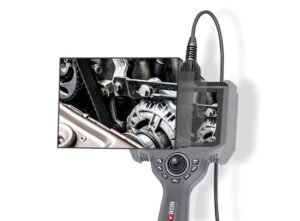

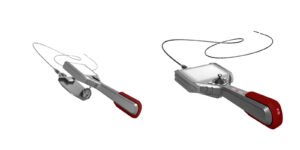

Features of TT-VB Series Video Borescope
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Technical Specifications of TT-VB Series Video Borescope
| Model | TT-VB170 | TT-VB150 | TT-VB130 | TT-VB110 | TT-VB90 | TT-VB60 | ||

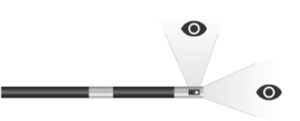

| Lens | Direction | Direct view/Side view/Double view | ||||||

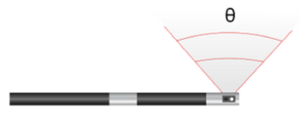

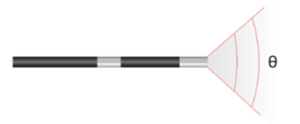

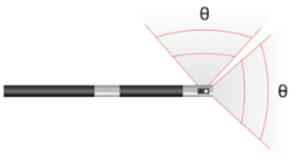

| View angle | 120° | |||||||

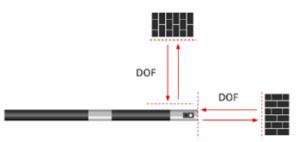

| DOF | 8mm~150mm | |||||||
| Pixel | 1MP | |||||||

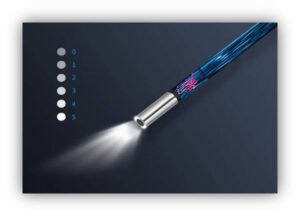

| Illuminating system | Rear high-power LED fiber optic transmission | |||||||
| Probe | Length(L) | Direct view/Side view:12±0.5mm | ||||||
| Double view:19±0.5mm | ||||||||
| Diameter(D) | 3.9mm | |||||||
| Articulating | 360° full direction articulation | |||||||
| Bending Angle(ɑ) | 170°±10° | 150°±10° | 130°±10° | 110°±10° | 90°±10° | 60°±10° | ||
| Brightness of Illumination | 1m | 1m<L≤2m | 2m<L≤4m | 4m<L≤6m | >6m | |||
| Direct view | ≥60000Lux | ≥50000Lux | ≥40000Lux | ≥30000Lux | / | |||
| Double view | ≥40000/10000Lux | ≥30000/10000Lux | ≥20000/10000Lux | / | / | |||
| IP grade | IP67 | |||||||
| Working temperature | -20°C~70°C | |||||||
| Inserting tube | Length | 1m | 2m | 3m | 4m | 5m | 6m | |
| Double view:3m | ||||||||
| Material | Flexible (tungsten braided tube) | |||||||
| Host | Dimension | 350*155*59mm | ||||||
| Display | 5-inch industrial touch LCD screen | |||||||
| Output port | HDMI video output,Micro USB、TF card slot | |||||||
| Storage | 32G | |||||||
| Power | Special rechargeable lithium battery pack, online charging, battery life ≧4 hours | |||||||
| IP grade | IP54 | |||||||
| Working temperature | -10℃~50℃ | |||||||
| Storage temperature | −20℃~60℃ | |||||||
| Relative humidity | Max 95%,No condensation | |||||||
| System | Operation System | Multifunctional operating system | ||||||
| Operation method | Button navigation, dual camera and video buttons | |||||||
| Support Function | With freeze, zoom, photo, flip, video playback, analog ruler functions | |||||||
| File Format | Image: JPEG (JPG),Video: AVI | |||||||
| Support Language | Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese | |||||||
| Packing Case | Weight | 3.9kg | ||||||
| L*W*H | 47.9*38.7*15.5cm | |||||||
