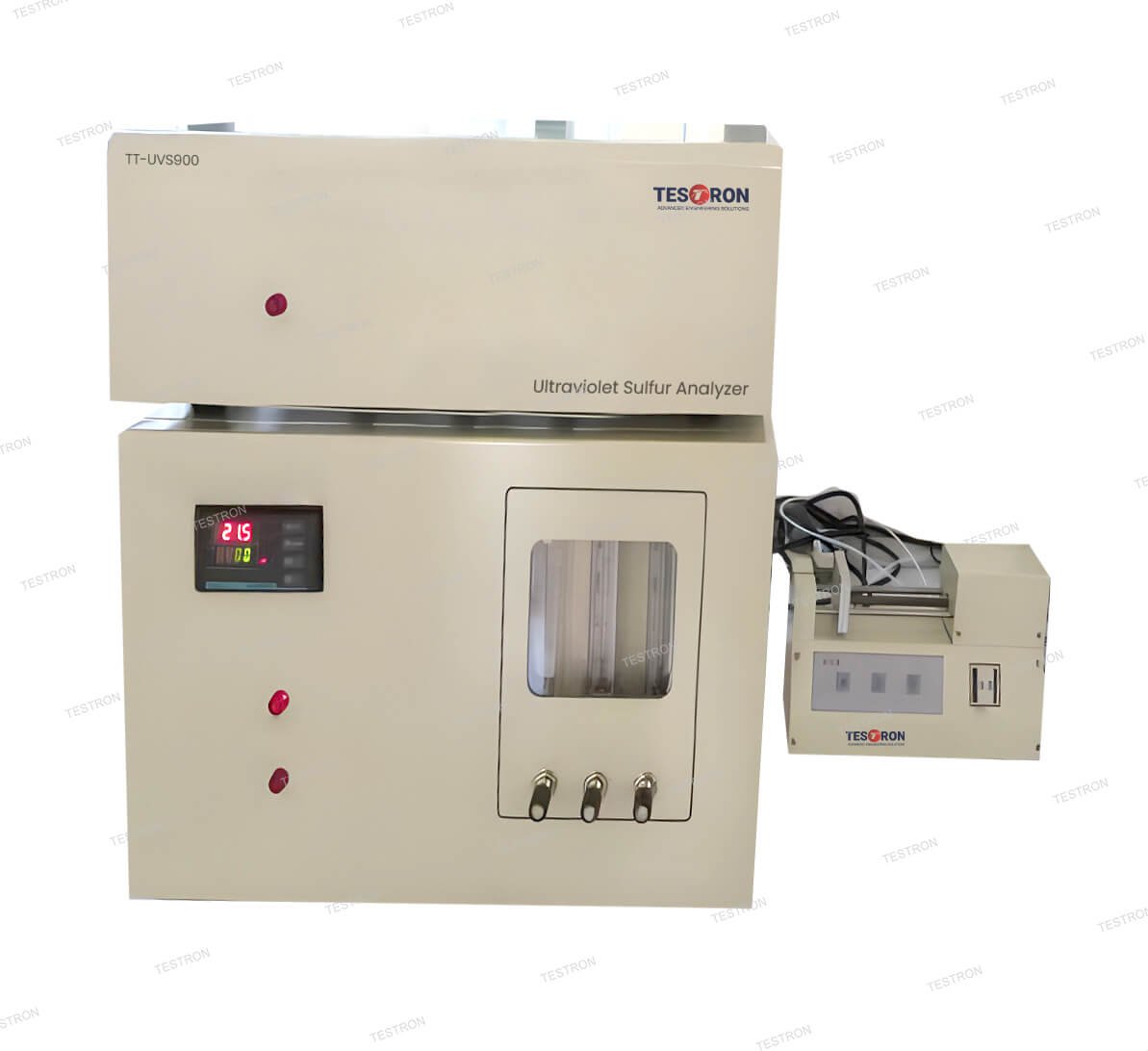

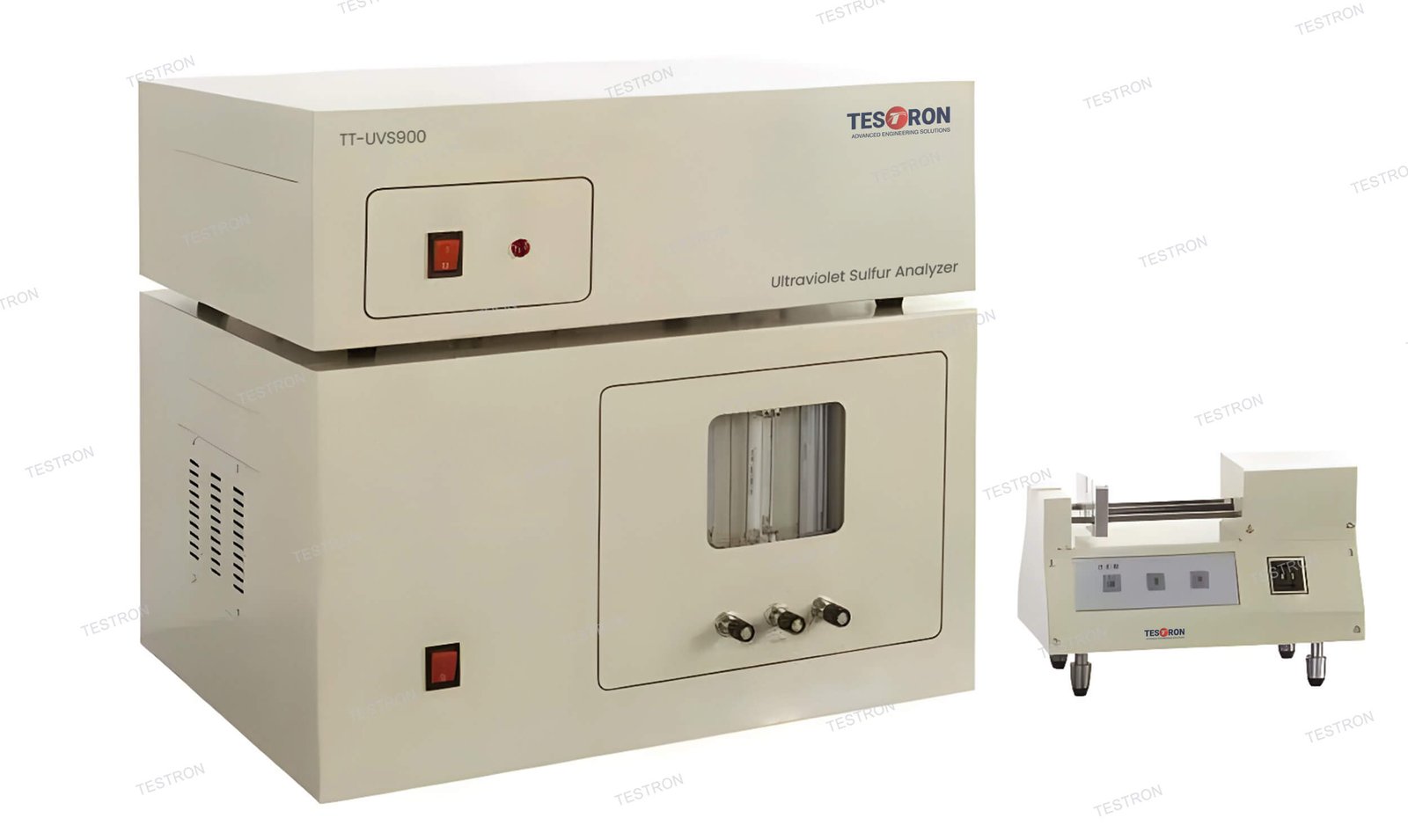

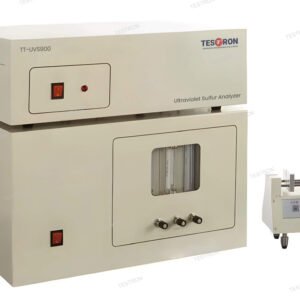

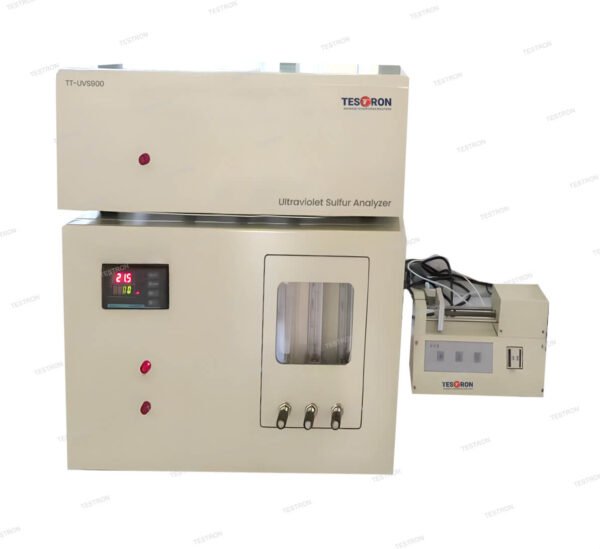

Test Standard of TT-UVS900 Ultraviolet Sulfur Analyzer
ASTM D4629, ASTM D5453, SH/T 0689-2000

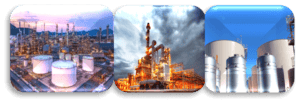

Application of TT-UVS900 Ultraviolet Sulfur Analyzer
It is widely used for determining sulfur in fuels, oils, gases, plastics, and other products, ensuring compliance with environmental regulations such as National V and VI fuel standards. It is ideal for petroleum refineries, chemical plants, environmental monitoring agencies, research laboratories, and quality control departments.
Features of TT-UVS900 Ultraviolet Sulfur Analyzer
- Computer control operation can realize man-machine dialogue, data, peak shape can be automatically stored and printed.
- The operating software can relate to LIMIS system to realize automatic data transmission.
- The instrument adopts a new type of quartz cracking tube, which can increase the injection volume and reduce the measurement error.
- The cooling fan automatic switch, saves the trouble of waiting for the sample shutdown, saves time and effort.
- The darkroom system adopts the latest foreign technology, and the key components adopt imported detection components, which improves the detection accuracy of the instrument
- The instrument adopts imported membrane dryers to absorb moisture, saving the trouble of replacing magnesium perchlorate frequently, and reducing the problem of air leakage.
- The use of computer control temperature improves the instrument temperature control precision, and not easy to overtemperature.
- The use of air cooling instead of water cooling, save water resources.
- You can take the existing calibration curve with standard sample calibration for sample analysis
Working Principle of TT-UVS900 Ultraviolet Sulfur Analyzer
- A measured sample is introduced into a high-temperature cracking furnace (~1000 °C), where it undergoes complete combustion and oxidation. Sulfur compounds present are quantitatively converted into sulfur dioxide (SO₂). The reaction gas, carried by an inert carrier gas, passes through a membrane dryer to remove moisture before entering the reaction chamber.
- Inside the chamber, SO₂ molecules are irradiated by ultraviolet light at specific wavelengths, exciting their electrons to higher energy states. As these electrons return to their original energy levels, they emit characteristic fluorescence specific to sulfur. This light is detected by a photomultiplier tube, amplified, and converted into an electrical signal proportional to the sulfur concentration. The instrument’s software processes this data to calculate the total sulfur content in the sample.
Technical Specification of TT-UVS900 Ultraviolet Sulfur Analyzer
| Model | TT-UVS900 |
| Measurement range | 0.1mg/L~10000mg/L ~% |
| Sample state can be measured | Solid, liquid, gas (corresponding sample injector is optional) |
| PMT high voltage range | DC400V~900V (according to the level of the measured concentration, set the required value through the operation system.) |
| Temperature control range | Room temperature to 1200℃ |
| Temperature control accuracy | ±1℃ |
| Repeatability error
| 1.0mg/L＜X≤10mg/L, Cv≤±10% 10mg/L＜X , Cv≤±5% |
| Host size | 550 ×560× 200 (mm) |
| Host weight | 9kg |
| Temperature control size | 550 ×560× 400 (mm) |
| Temperature control weight | 10kg |
| Lower detection limit | 0.1ppm (sulfur) |
| Air source requirements | high purity oxygen: more than 99.98% |
| High purity argon | more than 99.98% |
| Power supply | AC220V±10% 50Hz |
| Environmental requirements | Temperature 15 ~ 40℃; |
| Humidity | 85% or less |
| Configuration | Host (data acquisition, control system), cracking furnace, autosampler and computer (operating software included). |
