Application of TT- TRI600 Intelligent CNC Video Measuring Machine
The TT-TRI600 is widely applied in various industrial sectors that require non-contact dimensional measurement and automated geometric analysis , such as:-
- Pad Glass Manufacturing
- LCD Module Inspection
- Solar Panel Production
- Aviation and Aerospace Components
- New Energy Equipment
- Thermal and Acoustic Insulation Materials
- Automotive and Electronic Components
- Precision Engineering & Assembly Verification
Its versatility makes it an ideal choice for both R&D labs and mass production lines.

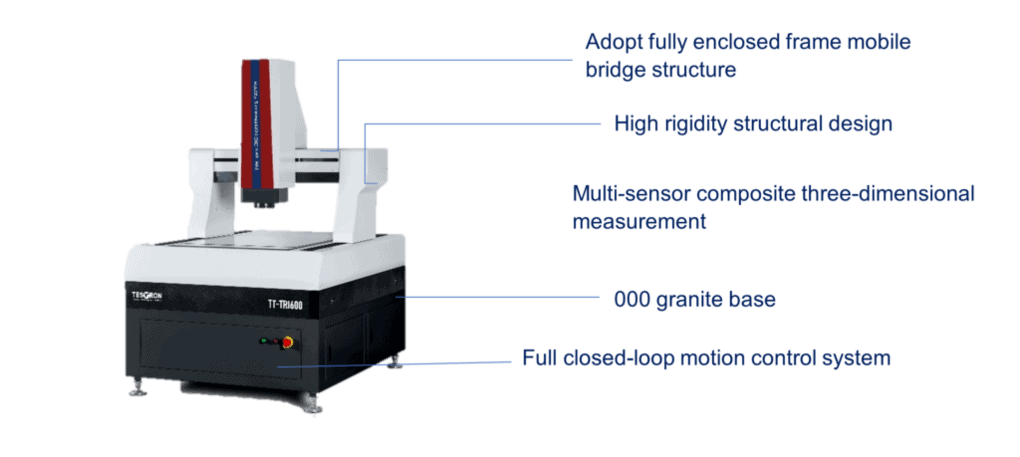

Features of TT- TRI600 Intelligent CNC Video Measuring Machine
Multi-Sensor Flexibility
- Supports various sensor modules for comprehensive measurement needs:-
- Touch Probe
- Laser Sensor
- Laser Profiler
- Probe Rack
- Ideal for measuring components with varied materials, shapes , and surfaces.
High Rigidity and Structural Stability
- Developed using Finite Element Analysis (FEA) for precision engineered rigidity.
- 000 Grade Granite base ensures:-
- Excellent vibration absorption
- Corrosion resistance
- Long term structural stability
Precision and Repeatability
- Full closed-loop motion control system ensures consistent positioning and movement accuracy.
- Allows multiple lens combinations and product-specific fixturing solutions.
- Ensures ultra-precise measurements with minimal human error.
User-Centric Automation
- Equipped with intelligent software for:-
- CNC automation
- Image analysis
- Multi layer data output
- Comprehensive report generation
- Enhances operational efficiency and minimizes manual workload.
Technical Specifications of TT- TRI600 Intelligent CNC Video Measuring Machine
| Model | TT-TRI600 | |
| Dimension (mm) (x/y/z) | 1170/1630/1800 | |
| Measuring Range (mm) (x/y/z) | 500×600×200 | |
| Measuring Accuracy (µ/m) | 3+L/200 | |
| Repeatability (µ/m) | 3µm | |
| Weight (Kg) | 1200kg | |
|
Image & measuring |
CCD | 1.3M pixel HD GIGA digital camera (5M pixel HD digital camera for option) |
| Lens | Fully automatic zoom lens 1~10X | |
| Magnification | 28-180X
(For reference only. With different camera and lens the magnification will be different) |
|
| Field of view | 8.5~1.3mm
(For reference only. With different camera and lens combination, the value will be different) |
|
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm (0.1 µm for option) | |
| Driving System | CNC control, AC fully closed loop servo motor drive, Joystick control, mouse/keyboard control | |
| Illumination | Programmable LED8 partition ring surface light, LED bottom parallel light
(optional: 40 partition ring light, coaxial light, adjustable color light source) |
|
