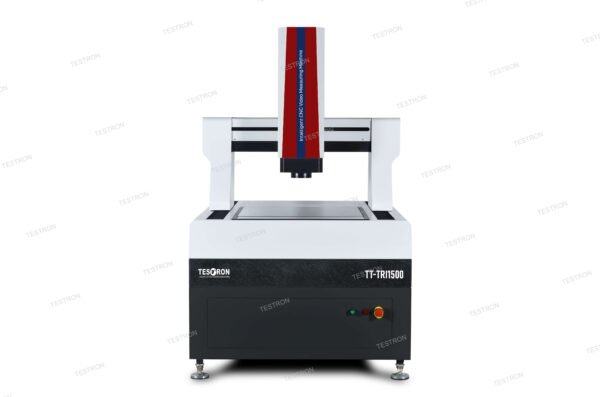

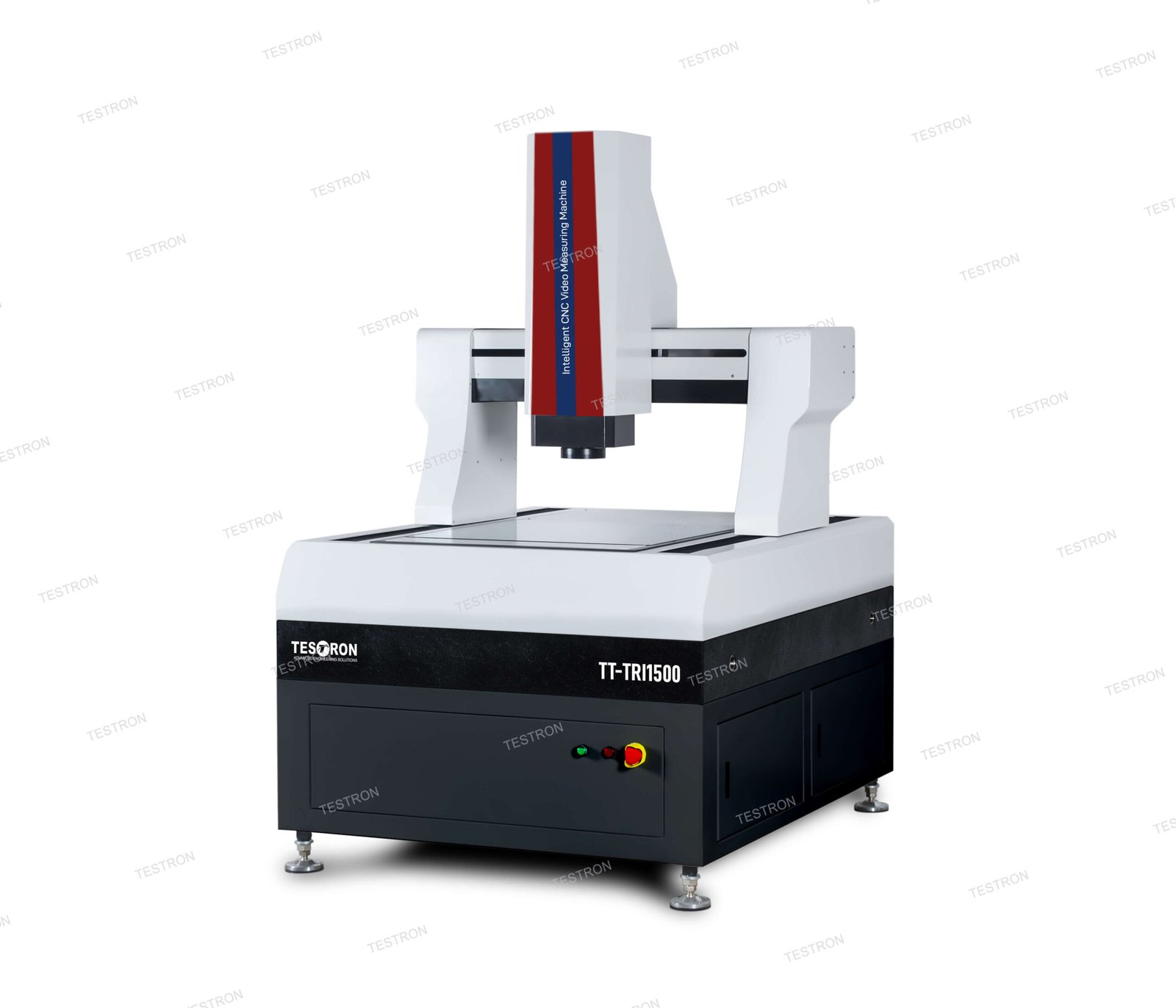

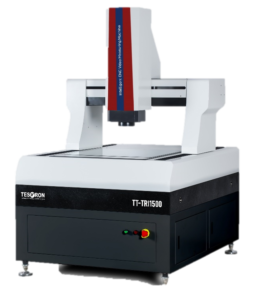

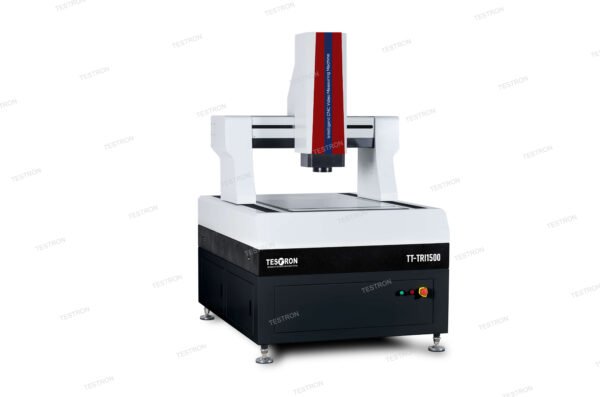

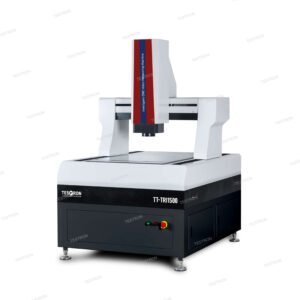

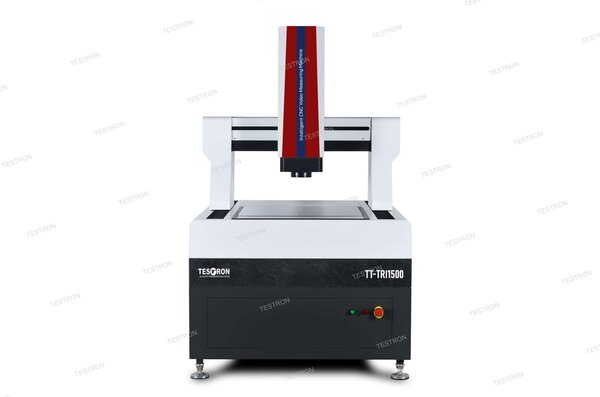

Applications of TT- TRI1500 Intelligent CNC Video Measuring Machine
The TT- TRI1500 Intelligent CNC Video Measuring Machine is widely adopted for non contact measurement and automated inspection in industries that require precision in large-scale components:-
- LCD & Display Module Assembly
- Solar Panel & Semiconductor Industry
- Aerospace & Aviation
- New Energy Components
- Thermal and Insulation Materials
- Automotive Engineering
- Industrial Electronics

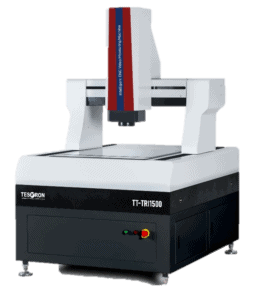

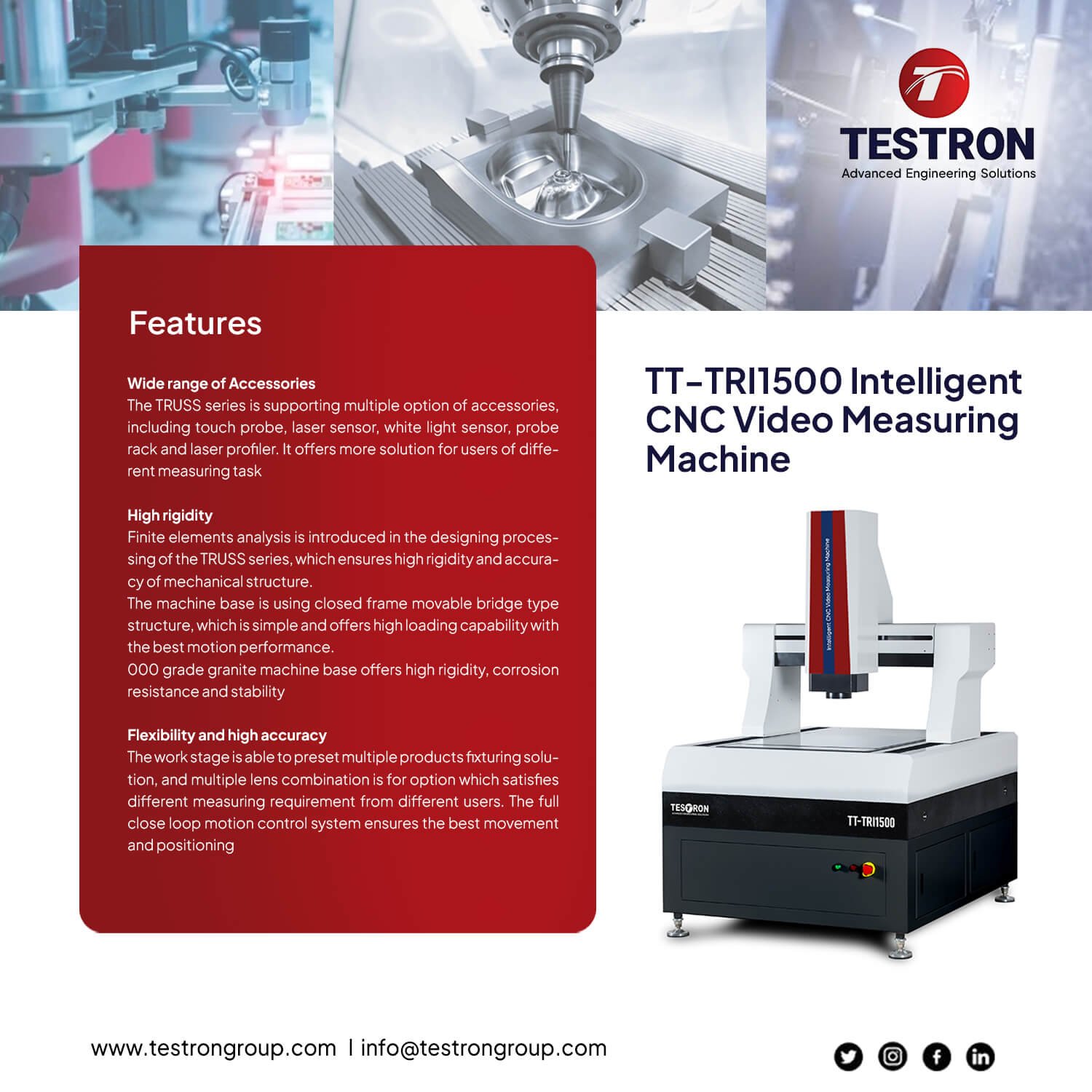

Features of TT- TRI1500 Intelligent CNC Video Measuring Machine
Wide range of accessories
- TT-TRI1500 supports multiple options of accessories, including touch probe, laser sensor, white light sensor, probe rack and laser profiler. It offers more solutions for users of different measuring tasks.

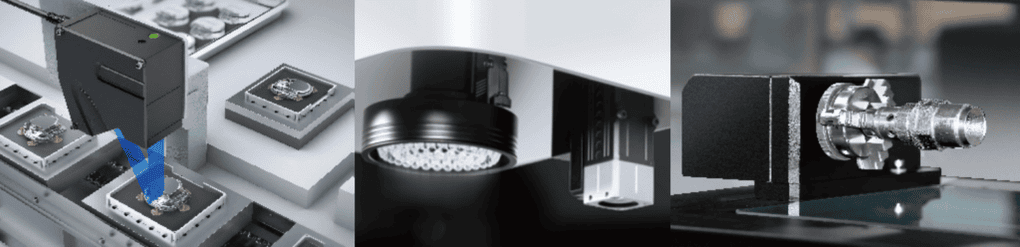

Multi-Sensor Configuration
- Supports an array of interchangeable accessories, including:
1. Touch probe
2. Laser sensor
3. White light sensor
4. Laser profiler
5. Probe rack
Offers flexible measurement solutions tailored to complex metrology tasks

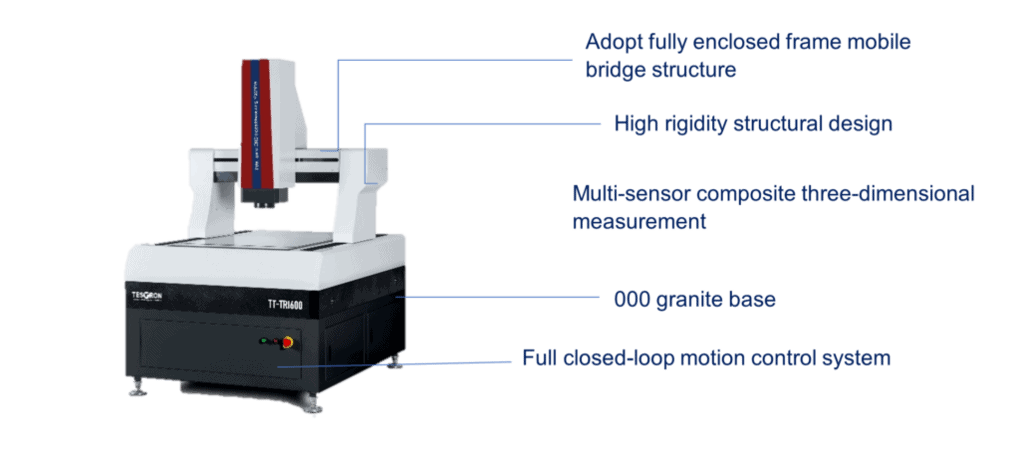

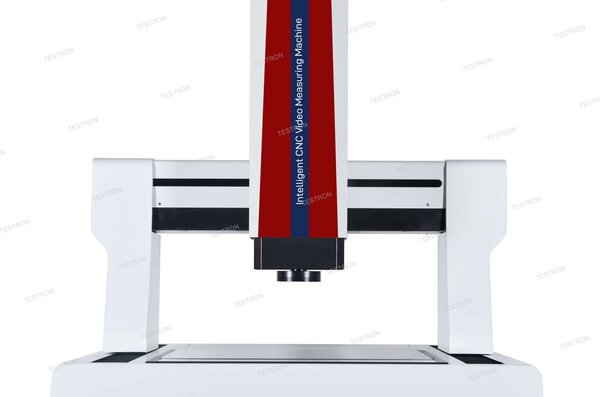

High Structural Rigidity
- Built using finite element analysis (FEA) to optimize structural strength and accuracy.
- Designed with a closed-frame movable bridge structure for enhanced stability and load handling.
- Constructed on a 000 grade granite base for corrosion resistance, long-term durability, and high thermal stability.
Superior Accuracy and Repeatability
- Equipped with a full closed-loop motion control system for precise positioning and consistent performance.
- Multiple fixturing options and lens configurations support diverse component types.
- Ideal for precision inspection in production environments requiring high throughput.
User-Friendly Software Integration
- Seamlessly integrates with automated metrology software that supports measurement programming, 3D rendering, and advanced image processing.
- Enables fast setup, batch processing, and real-time feedback for quality control teams.
Technical Specifications of TT- TRI1500 Intelligent CNC Video Measuring Machine
| Model | TT-TRI1500 | |
| Dimension (mm) (x/y/z) | 1900/2500/1800 | |
| Measuring Range (mm) (x/y/z) | 1200×1500×200 | |
| Measuring Accuracy (µ/m) | 3+L/200 | |
| Repeatability (µ/m) | 4µm | |
| Weight (Kg) | 4200kg | |
|
Image & measuring | CCD | 1.3M pixel HD GIGA digital camera (5M pixel HD digital camera optional) |
| Lens | Fully automatic zoom lens 1~10X | |
| Magnification | 28-180X (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm (0.1 µm optional) | |
| Driving System | CNC control, AC fully closed loop servo motor drive, Joystick control, mouse/keyboard control | |
| Illumination | Programmable LED8 partition ring surface light, LED bottom parallel light (optional: 40 partition ring light, coaxial light, adjustable color light source) | |
