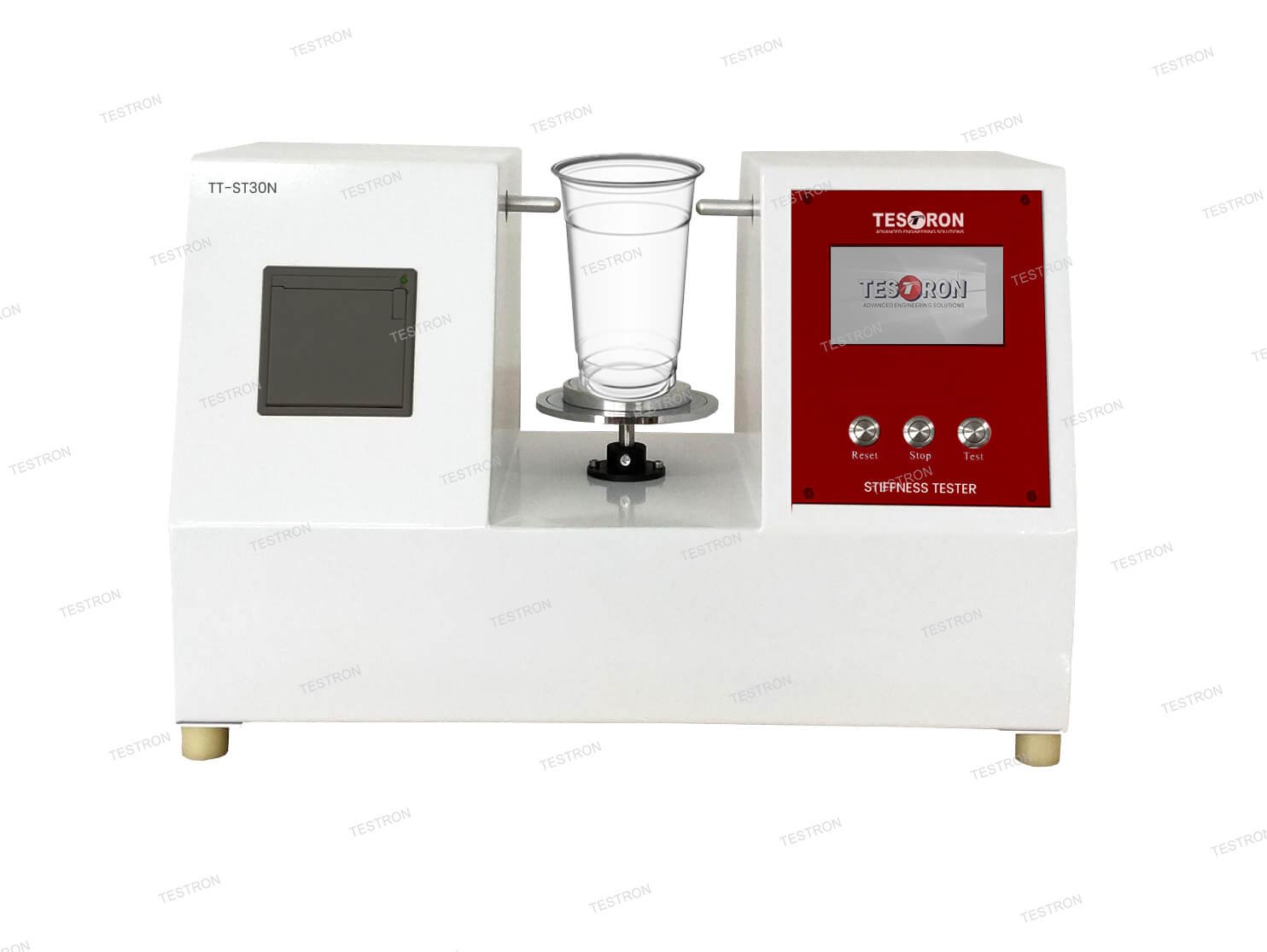

Test Standard of TT-ST30N Stiffness Tester
QB/T 2294, GB/T27590, JJG157
Application of TT-ST30N Stiffness Tester
Suitable for all kinds of paper cups, plastic cups and bowls.
Features of TT-ST30N Stiffness Tester
- Adopts high precision strain sensors and the United States imported chip processing system, measuring accurate value.
- Test system, the two-measuring head through relative motion precision lead screw drive, accurate and constant test speed. Repeatability test result is good.
- High resolution color touch screen displayed in English, friendly man-machine interface operation. Automatic test, the test data statistical handling function, miniature printer output can also be connected to PC. Results when connected to a computer, in addition to the automatic memory storage, can also show that the compressive curves and save.
- Calibration instruments are specially configured with probe cushion, convenient user or measurement, the calibration department (third party) with standard weight force calibration value.
Technical Specifications of TT-ST30N Stiffness Tester
| Model | TT-ST30N |
| Measure Range | (1-30) N |
| Resolution | 0.01N |
| Accuracy | Indication error±0.5%，Indication fluctuation≤0.5% |
| Test Speed | (50±0.1) mm/min (Standard) (30~80) mm/min (Adjustable) |
| Relative moving distance | (9.5±0.5) mm (1~20) mm (Adjustable) |
| Midpoint Alignment | ≤0.2mm |
| Beginning distance | （40～120）mm |
| Dimensions (LxWxH) | 500×270×330mm |
| Weights | About 18kg |
| Power | AC110~240V |
