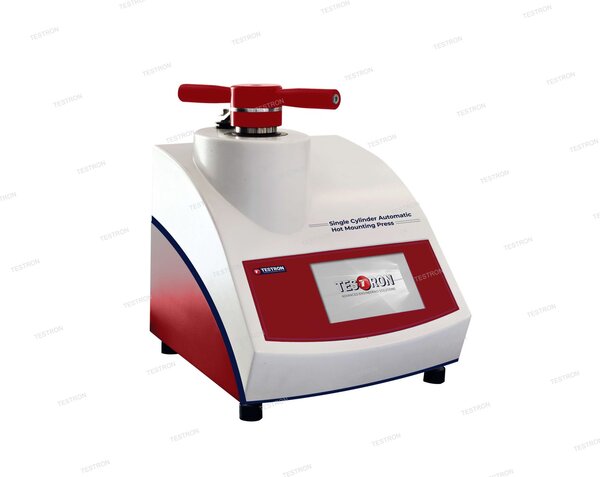

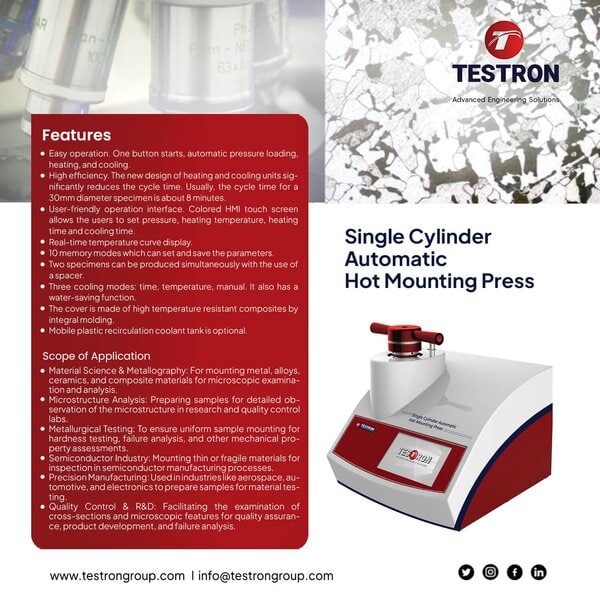

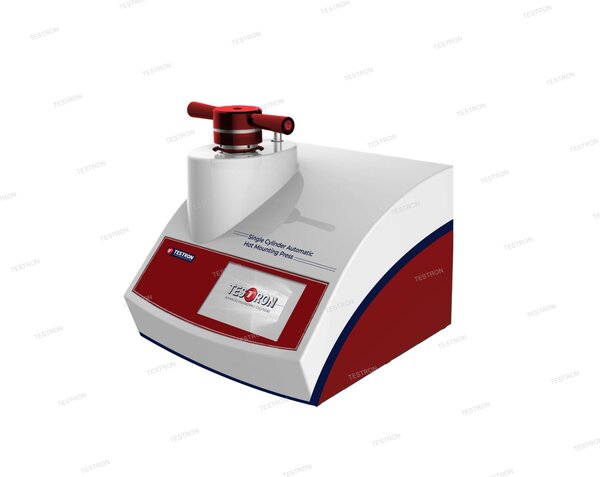

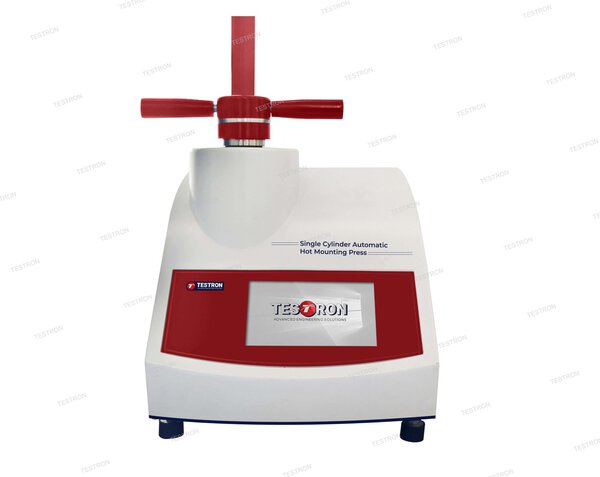

Features of TT-SAHM Series Single Cylinder Automatic Hot Mounting Press
- Easy operation. One button starts, automatic pressure loading, heating, and cooling.
- High efficiency. The new design of heating and cooling units significantly reduces the cycle time. Usually, the cycle time for a 30mm diameter specimen is about 8 minutes.

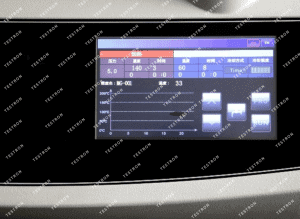

- User-friendly operation interface. Colored HMI touch screen allows the users to set pressure, heating temperature, heating time and cooling time.

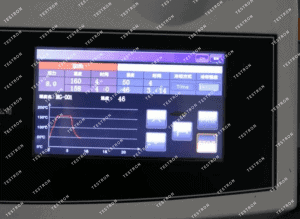

- Real-time temperature curve display.

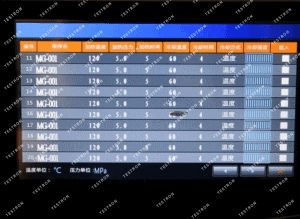

- 10 memory modes which can set and save the parameters.
- Two specimens can be produced simultaneously with the use of a spacer.
- Three cooling modes: time, temperature, manual. It also has a water-saving function.
- The cover is made of high temperature resistant composites by integral molding.
- Mobile plastic recirculation coolant tank is optional.
Diameter of TT-SAHM Series Single Cylinder Automatic Hot Mounting Press
- ø1.0in（25.4mm）
- ø30mm
- ø1.25in（31.75mm）
- ø1.5in（38.1mm）
- ø40mm
- ø2.0in（50.8mm
Technical Specifications of TT-SAHM Series Single Cylinder Automatic Hot Mounting Press
| Models | TT-SAHM1 | TT-SAHM2 | TT-SAHM3 |
| Operation mode | Automatic | ||
| Pressure | Air | Hydraulic | Hydraulic |
| Cooling | Automatic/manual | ||
| Mold | ○25 ●30 ○40 ○50mm, others can be customized | ||
| Max Force (kg） | 500 | 1200 | 4000 |
| Max Temperature（℃） | 180 | 200 | 200 |
| Heater | 1.2KW | 1.2KW | 1.5KW |
| Dimension (WxDxH) | 400x400x420 | 350x400x420 | 410x480x430 |
| Weight | 25Kg | 30Kg | 48Kg |
| Power | 220V50Hz | ||
| Air source | Need | – | – |
| Cooling Water | Need | ||
| Mold Release | ○ | ○ | ○ |
| Black Resin | ● | ● | ● |
| Green Resin | ○ | ○ | ○ |
| Red Resin | ○ | ○ | ○ |
| Conductive Resin | ○ | ○ | ○ |
| Edge-protection Resin | ○ | ○ | ○ |
| Transparent Resin | ○ | ○ | ○ |
| Air filter | ● | – | – |
| Funnel &Spoon | ● | ● | ● |
| Drains | ● | ● | ● |
- Standard ○Optional

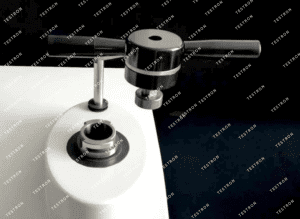

Details of TT-SAHM Series Single Cylinder Automatic Hot Mounting Press
 |
 |
 |
 |
 |
 |
