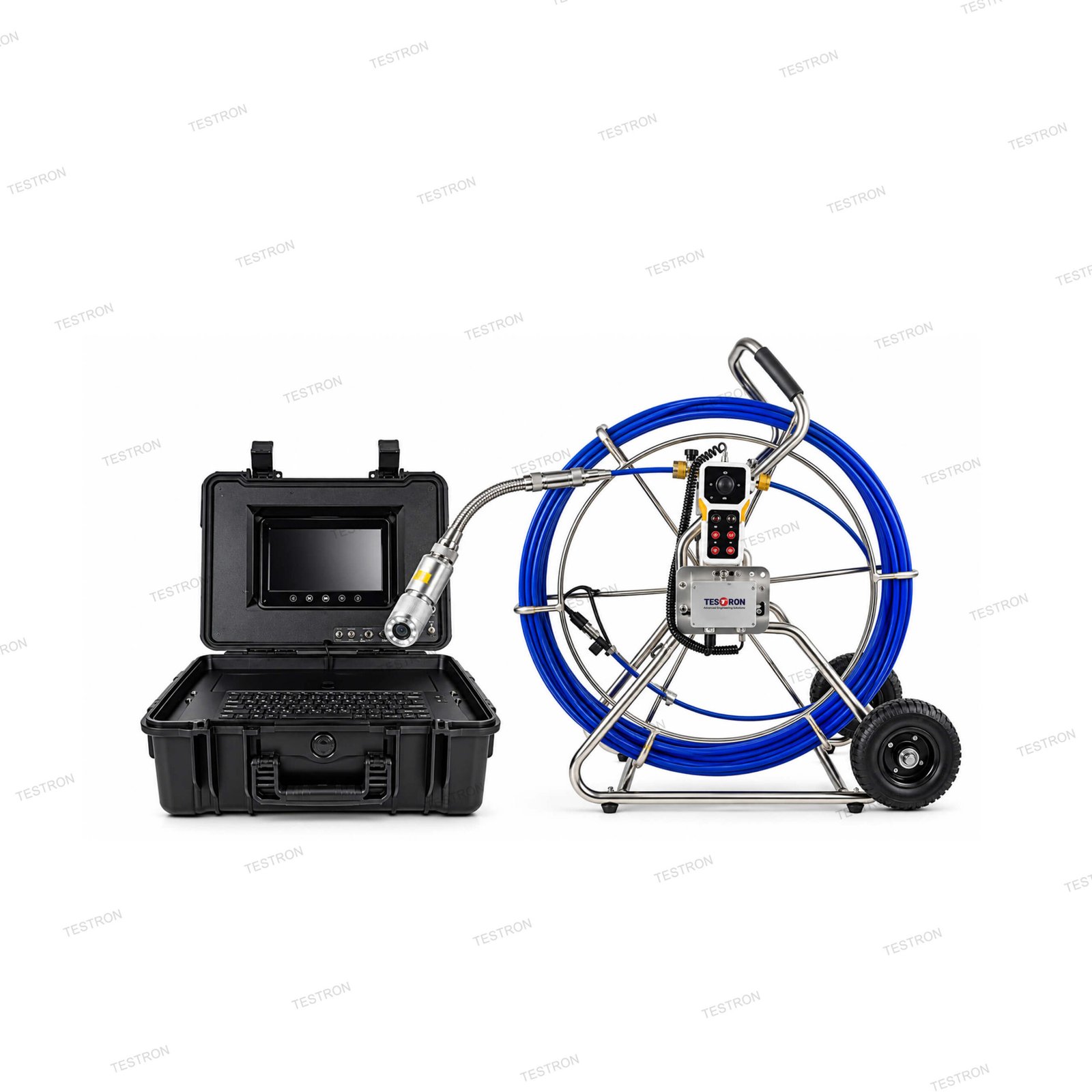

Application of TT-PIB170 Pipe Inspection Borescope
It is suitable for pipeline inspection, water supply systems, drainage systems, industrial equipment maintenance, power plant inspections, petrochemical facilities, and general industrial visual inspection applications.
Features of TT-PIB170 Pipe Inspection Borescope
- 9-inch TFT color LCD monitor for clear real-time image display.
- 60 m fiberglass push cable for long-distance inspection.
- Camera head with 360° horizontal rotation and 180° vertical rotation.
- IP68 waterproof camera suitable for wet and submerged environments.
- Integrated meter counter with metric and imperial unit display.
- One-key image capture and video recording functions.
- Supports AVI video format and JPEG image format.
- 8-level digital zoom function.
- Built-in microphone and audio recording capability.
- Headphone output for audio monitoring.
- External keyboard connection support.
- Sapphire glass camera lens for enhanced durability.
- High-brightness adjustable LED illumination.
- Rechargeable lithium polymer battery with up to 4 hours operating time.
Technical Specifications of TT-PIB170 Pipe Inspection Borescope
| Model | TT-PIB170 | |
|
Camera Head | Size | Ø50*170mm |
| Pixels | 720*576 | |
| Lens | Sapphire Lens | |
| Rotation | Pan 360°, Tilt 180° | |
| Waterproof | IP68 | |
| Coil | Size | 768*369*820mm |
| Cable Length | 60m | |
| Cable Specification | φ9.5mm-8cores | |
| Cable Color | Blue | |
| Cable Material | Glass Fiber Core | |
|
Digital Video Recorder (DVR) | Battery Capacity | 4400mAh |
| Counter | Length counting, Unit switching | |
| Storage | 8GB SD card ,256GB Max | |
| Running Time | 4 hours | |
| Zoom | 8-level Digital Zoom | |
| Multimedia | one click snapshot and video AVI and JPEG | |
| Audio | Microphone recording, Headphone output | |
| Display | Size | 9inch Color Display |
| Total Pixels | 800*480 | |
|
Environment | Operation Temperature | -10~50°C |
| Operation Humidity | 95%RH Max | |
| Storage Temperature | -20~70°C | |
| Storage Humidity | 95%RH Max | |
| Atmospheric Pressure | 700hPa ~ 1060hpa | |
Standard Configuration of TT-PIB170 Pipe Inspection Borescope
| Item | Qty | Unit | Pictures | |
| Controller | Ø Display size: 9 inches Ø Resolution: 800*480 Ø Working power supply: 12V Ø Operating current: 450mA Ø Storage medium: 8GB SD card, maximum support 256GB Ø Main functions: video recording, photographing, recording, 8-level digital zoom, photographing while recording Ø Text: 30 characters per line, 15 lines per page, 64 pages Ø Video format: avi Ø Picture format: JPEG Ø Custom DVR boot logo Ø Counting: metric and imperial conversion Ø Interface: RCA/BNC video input, headset interface, USB interface, SD card socket Ø Battery: Lithium polymer battery 12V 4400mAh 48.84Wh Ø Battery running time: 4 hours Ø Keyboard: English Ø Box size: L460*W370*H180mm
| 1 | Pcs |  |
| Coil | Ø Size: L768*W369*H820mm Ø Cable material: glass fiber line Ø Cable length: 60m Ø Cable diameter: ø9.5mm-8 cores Ø Cable color: blue Ø Cable Wheel Material: stainless steel Ø Counter accuracy: 0.1m Ø Counter error: ±2% Ø Weight:21.2 kg. | 1 | Pcs |  |
| Control Handle | Ø Size: 32*83*166mm Ø Function: horizontal rotation, vertical rotation, focus, light adjustment automatic, speed Ø Weight: 0.22 kg
| 1 | Pcs |  |
| Camera Head | Ø Size：Ø50*170mm Ø Pixel：720*576 Ø Sensor size: 1/3inch CMOS Ø Viewing angle: 105° Ø focal length:70＜F＜100 mm Ø Camera lights:6PCS highlight LEDS (white) adjustable Ø Lens material: sapphire glass Ø Shell material: Aluminum alloy and stainless steel Ø Rotation: Pan 360°, Tilt 180° Ø Waterproof: IP68 1Bar Ø Weight:0.31KG Ø Skid Ø110mm Ø150mm3: Ø220mm
| 1 | Pcs |  |
| Spring | Ø Spring Connector | 1 | Pcs |  |
| Transmitter | Ø Dimensions: φ 32*60MM Ø Emission frequency:512Hz Ø Effective distance: 4.5m Ø Weight: 0.217kg
| 1 | Pcs |  |
| Microphone | Ø Frequency response: 20-20KHz Ø Sensitivity: -30db ± 3dB Ø Output impedance: ≤ 2.2k Ω Ø Line length: 1.5m Ø Weight: 0.018kg | 1 | Pcs |  |
| Connecting Wire | Ø Size: ø 5* 3000mm Ø Gx16-6 elbow aviation head Ø Weight: 0.10kg | 1 | Pcs |  |
| Charger | Ø Input: AC100-240V ~ 50 / 60Hz Ø Output: DC 12.6V / 1A Ø Output plug specification: 5521 Ø Weight: 0.1kg | 1 |
Pcs |  |
| SD Card | Ø Size: L24*W32*H2.1mm Ø Capacity:8GB Ø Weight: 0.001KG
| 1 |
Pcs |  |
| Card Reader | Ø Size: L73.5*W18.3*9.6mm Ø Material: ABS Ø Interface: USB Ø Support memory card: TF card, SD card Ø Weight:0.097KG
| 1 |
Pcs |  |
| Operation Manual | —— | 1 | Pcs | —— |
| Quality Certificate | —— | 1 | Pcs | —— |
| Warranty Card | —— | 1 | Pcs | —— |
