Application of TT-IMM Bench-top Injection Molding Machine
It is widely used in the mass production of plastic components across various industries. They are essential in manufacturing automotive parts, medical devices, consumer electronics, packaging products, and household items.

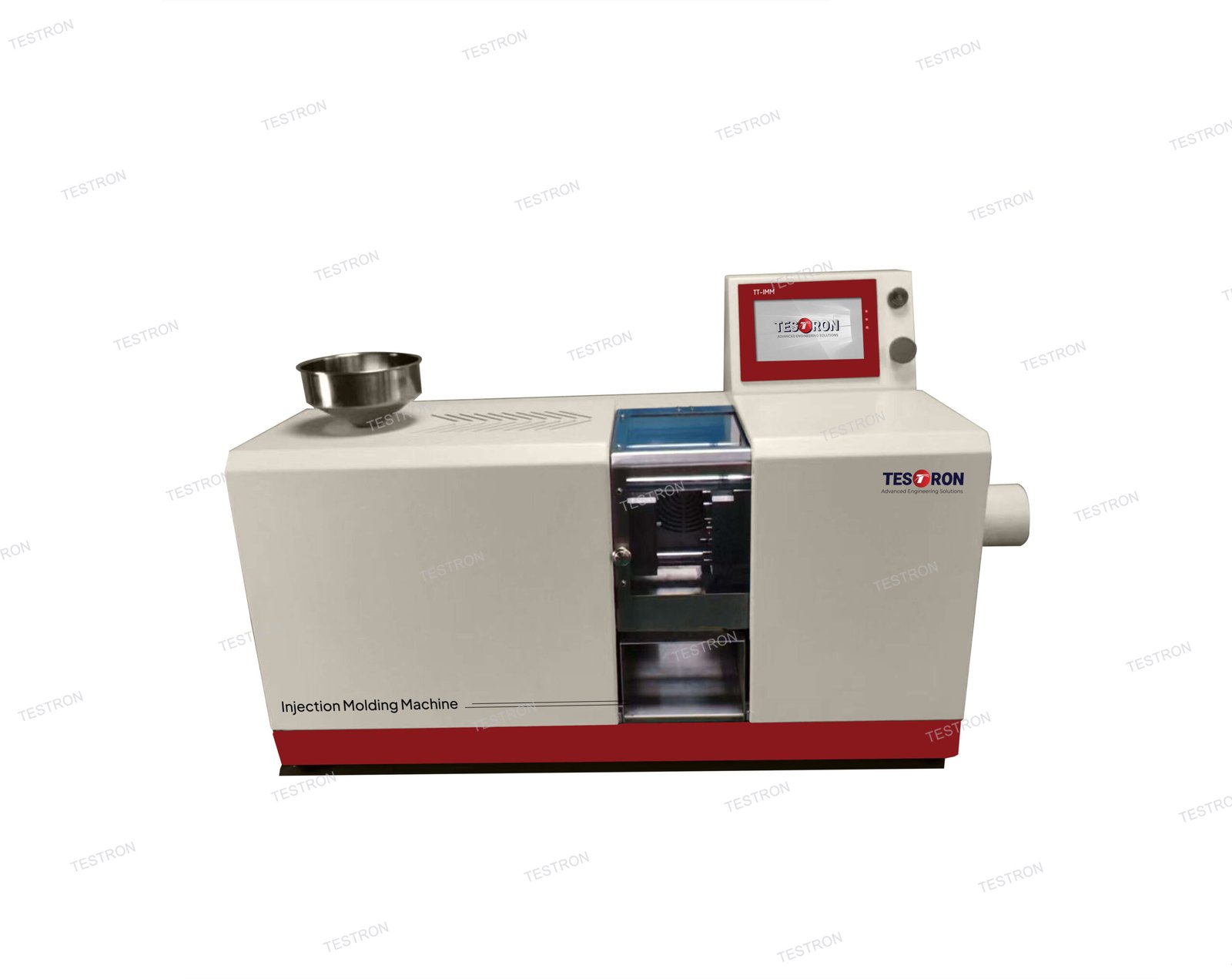

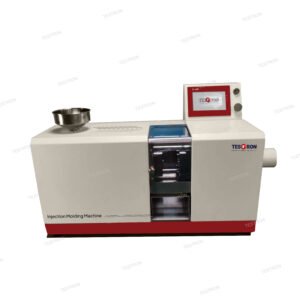

Features of TT-IMM Bench-top Injection Molding Machine
- Compact design and space-saving.
- Stainless steel body and hard anodized aluminum frame structure.
- Fully electric water free cooling system.
- Full-automatic precision sensor.
- Injection speed control ensures cavity filling rate.
- Electronic temperature control system, temperature control adjustment.
- Touch screens are convenient for operation and control, and automatic cycle counting.
- Each injection cycle does not exceed 15 seconds (the mold opens and ejects the part every 15 seconds).
- Simple operation, low mold opening cost and low operation cost.
Main Parts of TT-IMM Bench-top Injection Molding Machine
Machine frame
- High strength European standard integrated rack assembly, lightweight, beautiful, and durable.
- 304 stainless steel tabletop, practical and beautiful.
- Aluminum alloy profiles, stainless steel safety doors, CE certification for the entire machine.
Drive assembly
- Motor: 0.75x3kw motor, specialized driver.
- Reducer: Specialized motor reducer, self-lubricating system.
Screw & barrel assembly
- Barrel: made of 38CrMoAlA material, with a built-in *cooling water jacket at the feed inlet, polished and nitride.
- Screw: 38CrMoAlA material, diameter 25mm with ratio 1:20, polished and nitride treatment.
- Ceramic heater, fan cooling, stainless steel hopper.
Spray nozzle assembly
- S136 made of high hardness steel material, precision machined, polished, and treated with anti-sticking spray coating.
Opening and closing mold assembly
- Stepper motor, specialized reducer, precision screw rod drive.
Injection assembly
- Stepper motor, specialized reducer, precision piston metering injection.
Electrical and control system
- Omron brand
- Stepper motor, specialized reducer, CE certification.
PLC and touchscreen
- Samkoon brands, CE certification.
Technical Specification of TT-IMM Bench-top Injection Molding Machine
Model | TT-IMM | |
Injection Part | Screw dia. | 25mm |
Screw ratio | 20L/D | |
Theoretical injection volume | 32cm3 | |
Injection route | 60mm | |
Injection weight | 30g | |
Plasticization capacity | 10g/s | |
Injection rate | 20g/s | |
Heating temperature zone | 4PC | |
Injection pressure | 160Mpa | |
Screw speed | 100rmp | |
Locking Part | Screw rod dia. | 40mm |
Move mold stroke | 150mm | |
Distance between pull rods (width x height) | 230x230mm | |
Maximum mold thickness | 250mm | |
Minimum mold thickness | 120mm | |
Ejector stroke | 50mm | |
Ejector force | 50KN | |
No. of ejectors | 1PC | |
Mold positioning hole diameter | 62mm | |
Motor power | 0.75x3pcsKW | |
Electric heating power | 2.5KW | |
Mold dimension | 200x180x160mm | |
Machine dimensions (Lx W x H) | 1300x480x680mm | |
Machine weight | 480Kg |
