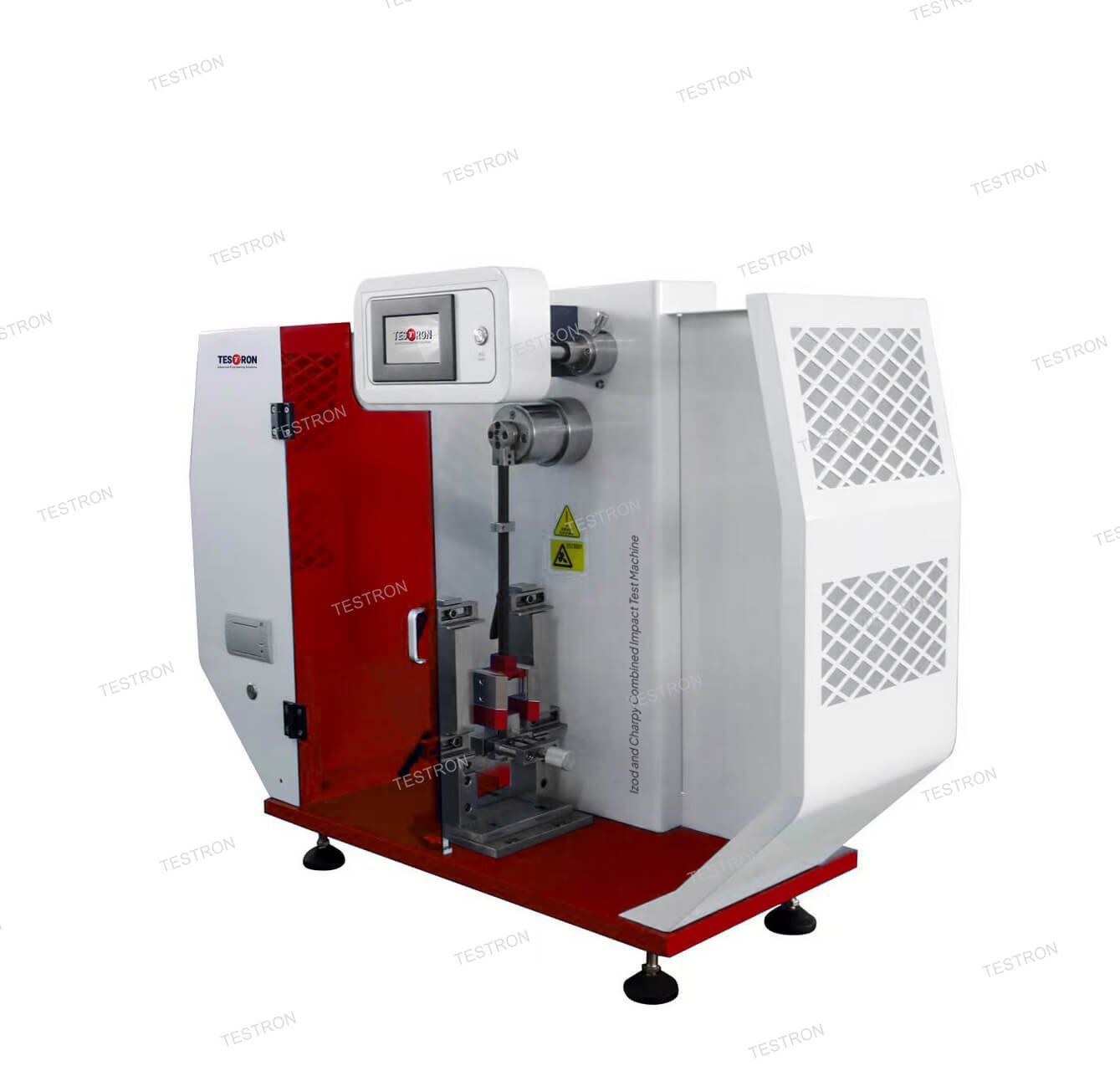

Applications of TT-IC22/50D Combined Impact Test Machine (Izod & Charpy)
It is mainly used for the determination of the impact toughness of non-metallic materials such as hard thermoplastic molding and extrusion materials, hard thermoset molding materials, and fiber-reinforced thermoset and thermoplastic composite materials.
Test Standards of TT-IC22/50D Combined Impact Test Machine (Izod & Charpy)
- ISO179—2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams.
- JB/T8762—1998 Plastic Simply Supported Beam Impact Testing Machine.
- ISO180—2000 Plastics – Hard materials – Determination of IZOD impact strength.
- JB/T8761—1998 Impact test machine for plastic IZOD.
- ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics.
Features of TT-IC22/50D Combined Impact Test Machine (Izod & Charpy)
- Cantilever beam and simply supported beam have integrated impact, just simply dismantle the clamp and sample holder
- High precision intelligent controller, equipped with liquid crystal display, can directly and accurately read the data
- Use high strength carbon fiber swing rod（Patent applied）, in the direction of impact, the rigidity of the material is improved, and the maximum impact quality is concentrated on the center of mass of the pendulum, so that the shock-free test is truly achieved, and the service life is increased.
- Use imported high-resolution digital encoder, higher precision and more stable Angle test
- The impact hammer and imported ball bearings in line with the aerodynamic principle greatly reduce the friction loss caused by the machine
- Automatically calculate the result, and 24 groups of test data can be saved and averaged
- English operating interface can be selected, test results can be selected in J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units
- Built-in micro printer prints test data
Technical Specifications of TT-IC22/50D Combined Impact Test Machine (Izod & Charpy)
| Model | TT-IC-22/50D |
| The pendulum energy | IZOD2.75J, 5.5J, 11J, 22J Charpy1J, 2J, 4J, 5J, 7.5 J, 15 J, 25 J, 50 J Pendulum pre-evaluation angle 150℃Impact velocity 3.5m/s, 2.9m/s, 3.8 m/s Distance between Pendulum and the impact blade 335mm, 230mm，395mmCharpy beam support distance 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Charpy | 1J, 2J, 4J, 5J, 7.5 J, 15 J, 25 J, 50 J Pendulum pre-evaluation angle 150℃Impact velocity3.5m/s, 2.9m/s, 3.8 m/s Distance between Pendulum and the impact blade 335mm, 230mm，395mmCharpy beam support distance 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Pendulum pre-evaluation angle | 150℃Impact velocity3.5m/s、2.9m/s 、3.8 m/s Distance between Pendulum and the impact blade 335mm, 230mm，395mmCharpy beam support distance 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Impact velocity | 3.5m/s、2.9m/s 、3.8 m/s Distance between Pendulum and the impact blade 335mm, 230mm，395mmCharpy beam support distance 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Distance between Pendulum and the impact blade | 335mm, 230mm，395mmCharpy beam support distance 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Charpy beam support distance | 60mm、70mm、95mmCantilever impact edge radius R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm ±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Cantilever impact edge | R=0.8±0.2mmSimply supported beam impact edge radius R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Simply supported beam impact edge | R=2mm±0.5mmDistance between impact blade to upper mouth 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Distance between impact blades to upper mouth | 22mm±0.05mmImpact angle 30°±1°Power AC220V±10% 50HZ |
| Impact angle | 30°±1°Power AC220V±10% 50HZ |
| Power | AC220V±10% 50HZ |
Accessories List of TT-IC22/50D Combined Impact Test Machine (Izod & Charpy)
| Item | QTY | |
| The main machine | Impact tester 1set | 1set |
| Accessories | 1 J impact pendulum | 1set |
|
| 2/4/5 J impact pendulum | 1set
|
| 7.5 J impact pendulum | 1set | |
| 15 J impact pendulum | 1set | |
| 25 J impact pendulum | 1set | |
| 12.75 J impact pendulum | 1set | |
| 50 J impact pendulum | 1set | |
| 2.75 J impact pendulum | 1set | |
| 5.5 J impact pendulum | 1set Combined on the machine Aim for the centre block 1set wrench 1set printer | |
| 11 J impact pendulum
| 1Sample fixture for Charpy test1set Combined on the machine Aim for the centre block1set wrench1set printer
| |
| 22 J impact pendulum | 1Sample fixture for Charpy test1set Combined on the machine Aim for the centre block1setwrench1setprinter
| |
| Sample fixture for Charpy test | 1set Combined on the machine Aim for the centre block1setwrench1setprinter
| |
| Aim for the centre block | 1set wrench1set printer1set Combined on the machine Printing paper 2set power line1piece instruction book1 | |
| Wrench printer | 1set printer 1set Combined on the machine Printing paper 2 set power line 1piece instruction book1 | |
| Printer | 1 set Combined on the machine Printing paper 2set power line1piece instruction book1 | |
| Printing paper | 2 set power line1 piece instruction book1 | |
| Power | 1 piece instruction book1 |
