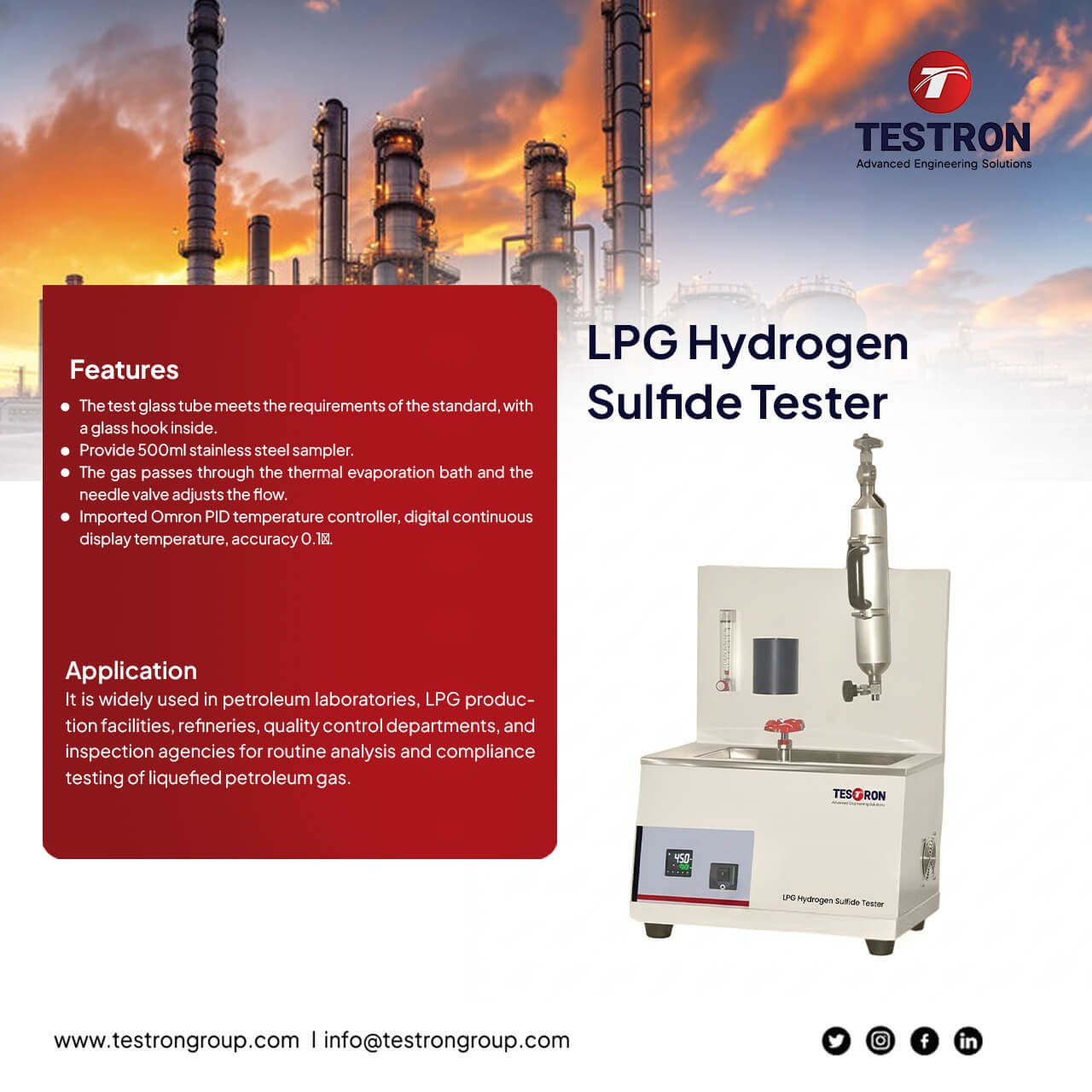

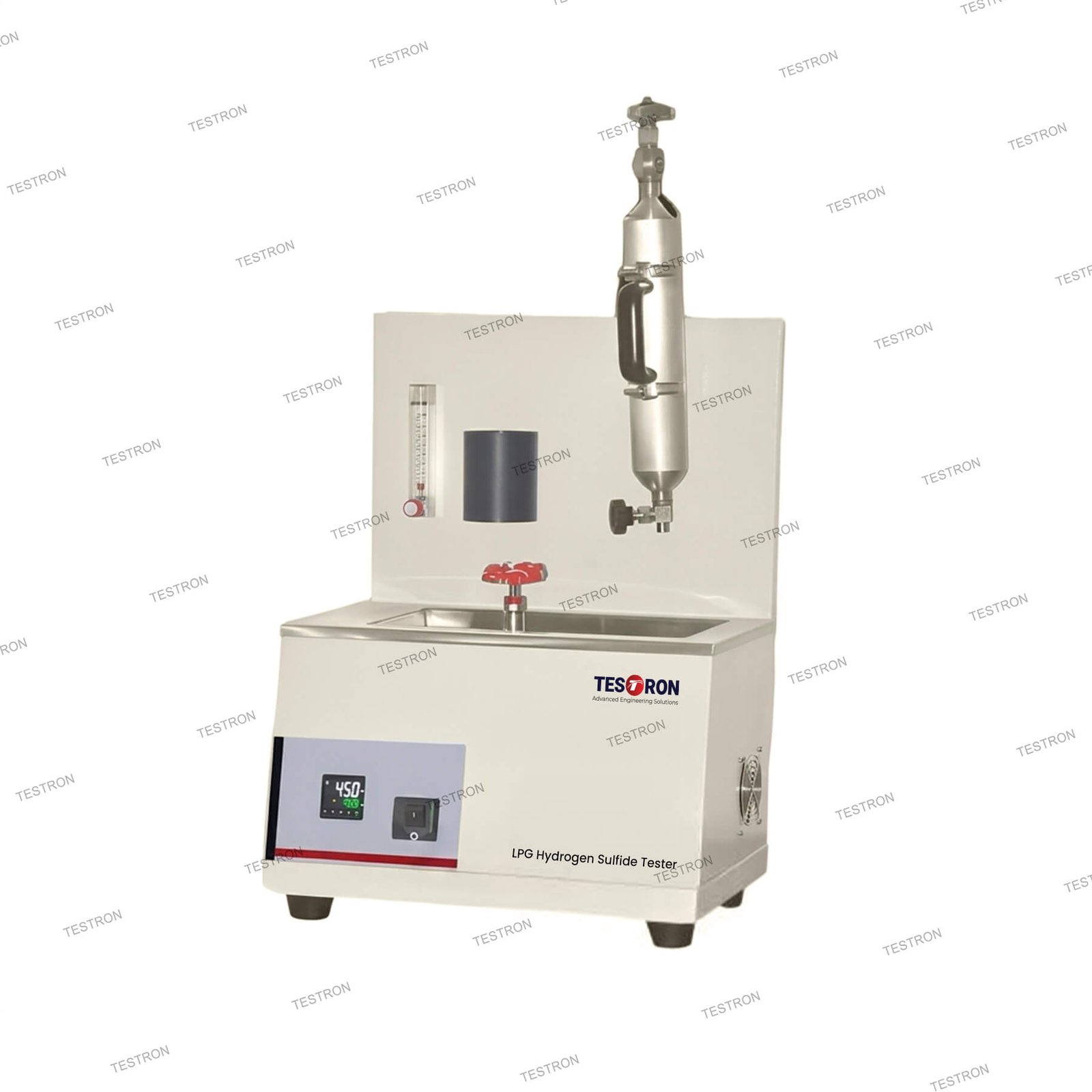

Test Standard of TT-HST1000 LPG Hydrogen Sulfide Tester
ASTM D2420, SH/T0125, ISO 8819
Application of TT-HST1000 LPG Hydrogen Sulfide Tester
It is widely used in petroleum laboratories, LPG production facilities, refineries, quality control departments, and inspection agencies for routine analysis and compliance testing of liquefied petroleum gas.
Features of TT-HST1000 LPG Hydrogen Sulfide Tester
- The test glass tube meets the requirements of the standard, with a glass hook inside.
- Provide 500ml stainless steel sampler.
- The gas passes through the thermal evaporation bath and the needle valve adjusts the flow.
- Imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1℃.
Technical Specification of TT-HST1000 LPG Hydrogen Sulfide Tester
| Model | TT-HST1000 |
| Heating mode | Electric heating tube |
| Temperature controlling mode | Digital PID thermostat |
| Flow control | Needle valve adjustment, flow meter displays flow |
| Power supply | AC220V/ 50HZ |
| Total power | 1000W |
| Dimension | 440*310*600mm |
| Weight | 20KG |
Standard Configuration of TT-HST1000 LPG Hydrogen Sulfide Tester
| Items | Qty |
| Main unit | 1 set |
| Fuse 20A | 4pcs |
| Sampling cylinder 500ml | 1pc |
| Glass hook | 1pc |
| Rubber stopper 10# | 1pc |
| Glass cylinder | 1set |
| Watch glass | 1pc |
| Glass connecting pipe | 1root |
| Breathing pipe | 1pc |
| Test strip | 1box |
