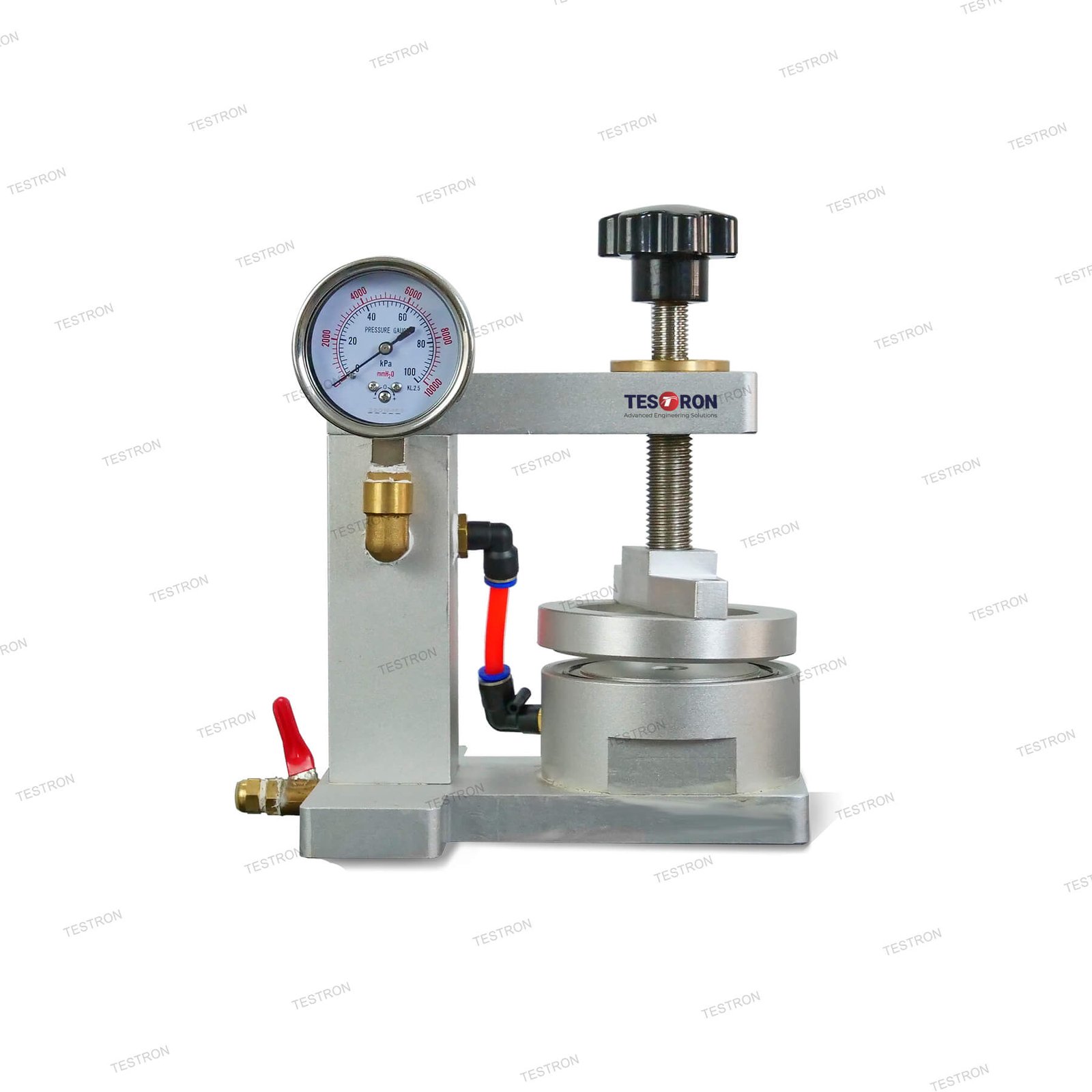

Test Principles of TT-HPM80 Portable Hydrostatic Head Tester
The samples are placed horizontally, and the samples are put under pressure.
Test Standard of TT-HPM80 Portable Hydrostatic Head Tester
ISO 811, GB4744-84, GB4706.8-2008-21.110.2
Application of TT-HPM80 Portable Hydrostatic Head Tester
Used to test water pressure resistance of waterproof suits, raincoats, tents, waterproof bags, waterproof gloves, plastic bags, cold clothing, tents, raincoats, cloth and etc.
Features of TT-HPM80 Portable Hydrostatic Head Tester
- The compact and portable design makes the device easy to carry and use in different locations.
- The tester provides accurate measurement of water pressure resistance for reliable results.
- The system applies controlled pressure to ensure consistent and precise testing conditions.
- The horizontal testing method ensures uniform pressure distribution across the sample surface.
- The built-in sample holder securely keeps the material stable during testing.
- The integrated pressure gauge allows clear and precise monitoring of the applied pressure.
- The device detects water droplet formation to identify the exact leakage point.
- It supports testing of various materials including plastics, fabrics, clothing, tents, and rainwear.
Technical Specifications of TT-HPM80 Portable Hydrostatic Head Tester
| Model | TT-HPM80 |
| Pressure area | 55cm2, d=80.00mm |
| Water column height | 0-10000mmH2O (more than 10000mmH2O shall be customized) |
| Rising speed | 10±3mmh2O (standard rate) 60±20mmh2O |
| Standard rate | 100±30 mmh2O (increase rate) |
| Psychic sensitivity | 1mmh2O, maximum display value 9999.9mmh2O |
| Machine size | 280x200x300mm |
| Machine weight | 5.5kg |

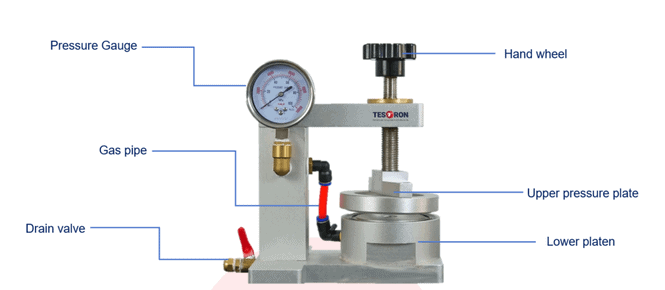

Product Interface of TT-HPM80 Portable Hydrostatic Head Tester
Standard Configuration of TT-HPM80 Portable Hydrostatic Head Tester
| Items | Qty |
| Mainframe | 1 pc |
| Power wire | 1 pc |
| Operating Manual | 1 pc |
| Warranty card | 1 pc |
