Test Standard
ISO 1716-2002, GB/T 14402-2007
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
Features of TT-HCT300 Heat Combustion Tester
- The apparatus including calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software; Crucible made of stainless-steel.
- Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean.
- Ignition wire break is detection, and automatic ignition.
- The test procedure automatically turn-off.
- Test abnormalities has sound alarm.
- Computer control system
- Control box with USB / RS232 serial port with an external brand desktop or laptop operating control.
- High degree of automation, test procedure safe and reliable, easy to operate.
Technical Specification
| Items | Technical Parameter |
|---|---|

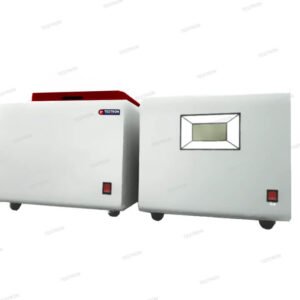

| Model | TT-HCT300 Heat Combustion Tester |
| Bomb capacity | (300 ± 50) mL |
| Oxygen bomb pressure range | 0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa. |
| Timer | accuracy of 0.5s |
| Maximum power | 0.5KW |
| Ambient temperature | (10 ~ 35) ºC, humidity ≤80% |
| Heat capacity of the instrument | about 10000J / K |
| Heat repeatability error | ≤0.2% |
| Temperature range | (4.5-50) ºC |
| Temperature detection | 0.0001 ºC resolution, using the PT100 sensor |
| Inner cylinder volume | 2000ml; Oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage |
| Motor power | 3W |
| Stirring speed | the inner tube (375r / min) |
| Power supply voltage | AC220V ± 10% 50Hz |
Standard Delivery
| Items | Quantity | Remarks |
|---|---|---|
| Installation program of calorimeter | 1 set | Software Drivers |
| Host of calorimeter | 1 set | |
| Thermostat | 1 set | |
| Oxygen bomb | 1 pc | |
| Stainless Crucible | 2 pcs | Spare Part |
| Warhead frame | 1 pc | |
| Oxygen regulator | 1 pc | Including oxygen therapy tubes |
| Handheld oxygen filling apparatus | 1 set | Including air bleeder |
| Power supply thread | 2 pcs | |
| Rubber sealing ring | 6 pcs | spare part |
| Ignition wire | 1 box | 0.2mm nickel-chrome wire, consumables |
| Benzoic acid | 1 bottle | Flake, consumable |
| Protective tube | 4 pcs | Ф5×20mm15A, consumables |
| Signal wire | 1 pc | RS232 |
| Control line of main and auxiliary equipment | 1 pc | |
| Connection hose | 2 pcs | |
| Superior white tube | 2 meters | |
| Cotton | 1 bag | |
| Steel bar | 1 pc | |
| Tweezers | 1 bundle | |
| Sample spoon | 1 bundle | |
| Measuring cylinder (10 ml) | 1 pc | |
| Instruction Manual | 1 copy | |
| Warranty Card | 1 pc |
