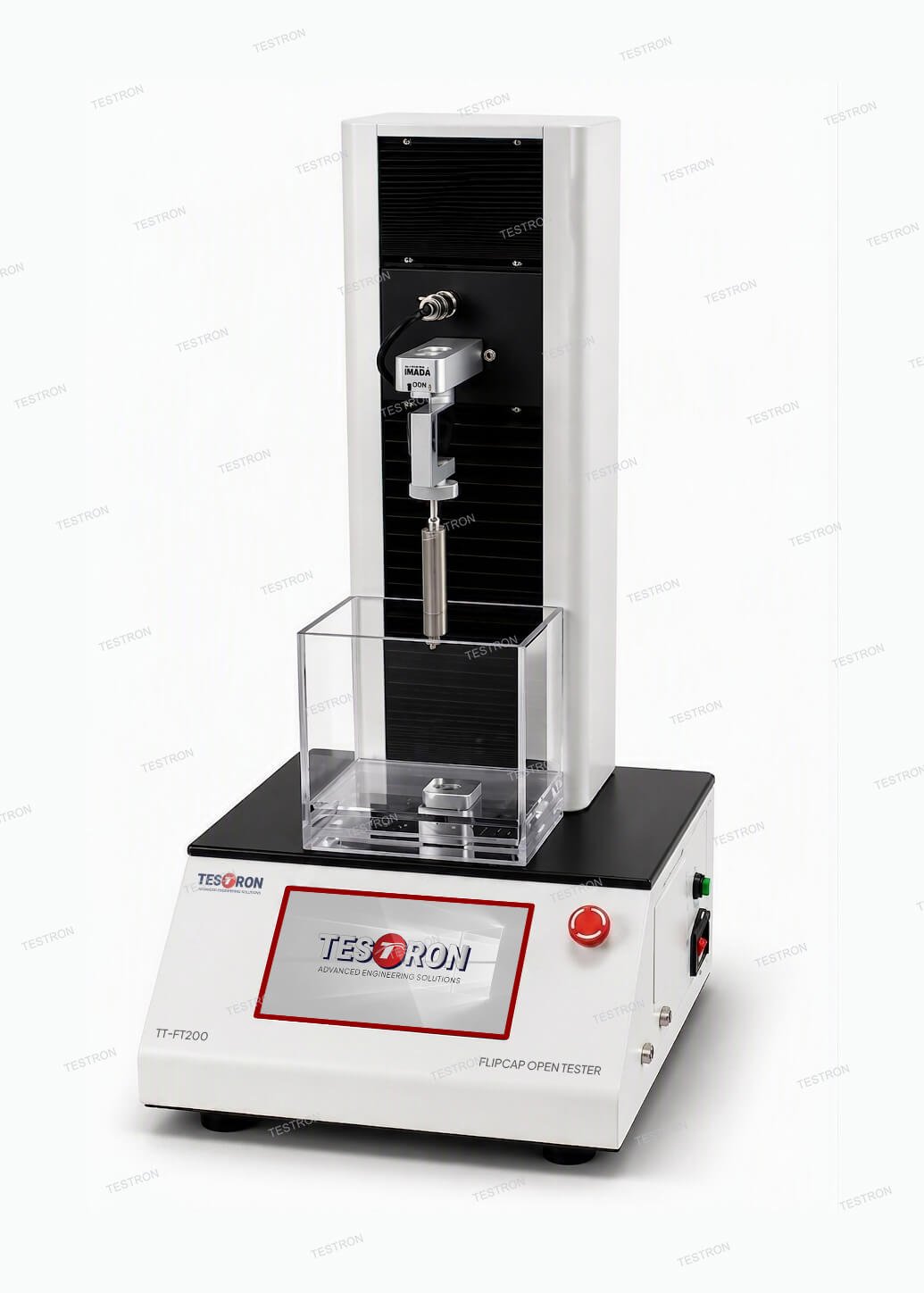

Test Principle of TT-FT200 Flipcap Open Tester
The sample is clamped between the two clamps. Two clamps separate at the preset speed. The special designed clamp breaks the bottle body and neck, force and displacement changes during the test are collected through the force sensor on the moving clamp and the displacement sensor built in the machine. The break force is obtained automatically.
Application of TT-FT200 Flipcap Open Tester
It is applied for break force test of ampoule, lip stick, lip cream and other materials.
Test Standards of TT-FT200 Flipcap Open Tester
GB2637, YBB00332002
Features of TT-FT200 Flipcap Open Tester
- Touch screen display, real-time testing process、PVC operation panel，compact design.
- Professional software supports data saving, analysis and printing.
- Imported sensor assured the accuracy of the test results.
- Compact design, user friendly.
- Adjustable test speed assured the accuracy of test speed and displacement.
- Equipped with micro printer. Test report could be printed after the test.
- Professional grips could be interchangeable for different size of specimens.
- Over travel protection, automatic position reset assured the operation safety.
Technical specifications of TT-FT200 Flipcap Open Tester
| Model | TT-FT200 |
| Test Range | 200N (Standard) |
| Test Speed | 1 – 500 mm/min |
| Accuracy | 0.5 % FS |
| Accuracy of speed | ±2% |
| Distance between the bracket | 36mm、60mm |
| Power Supply | 220 V / 50Hz |
| Instrument Dimension | 330 mm (L) × 410 mm (W) × 680 mm (H) |
| Net Weight | 27kg |
Standard Configuration of TT-FT200 Flipcap Open Tester
| Items | Qty |
| Instrument | 1pc |
| Micro Printer | 1pc |
| Break Force Clamp | 1pc |
| Operating Video | 1pc |
| Operational Manual | 1pc |
| Warranty Card | 1pc |
