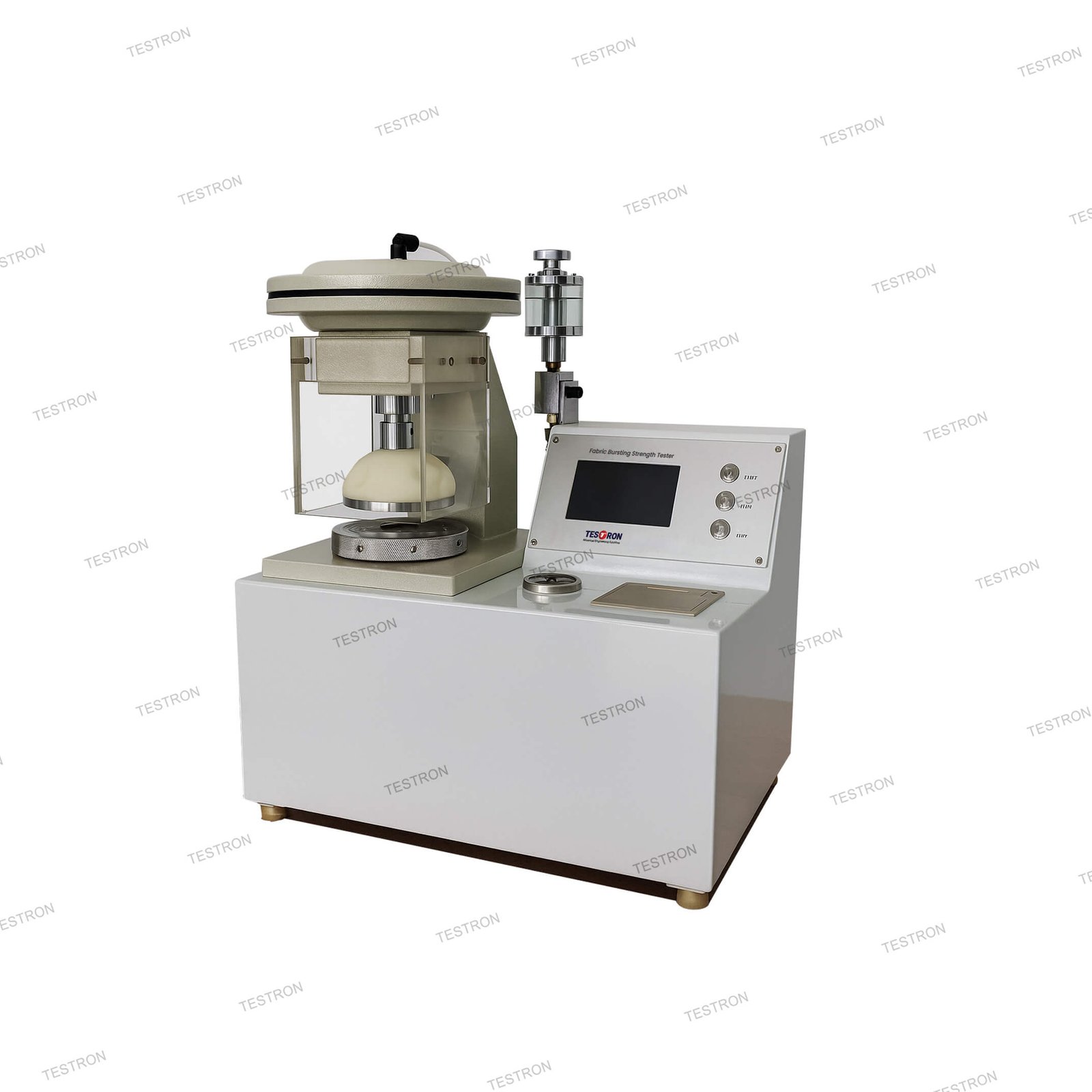

Test Standards of TT-FBT6000 Fabric Bursting Strength Tester
GB/T7742.1-2005, ASTM D3786, ISO 13938-1, AS-2001.2.4-1990
Application ofTT-FBT6000 Fabric Bursting Strength Tester
Can measure the bursting strength of all kinds clothing, textiles, nonwovens, leather and other materials.
Features of TT-FBT6000 Fabric Bursting Strength Tester
- Easy to use/operate
Touch screen display in Chinese and English (real-time curve). Complete the test automatically, with test data statistics processing function, micro printer output, can also be connected to the computer operation. When connected to the computer, in addition to automatic memory storage results, but also Display the blasting process curve during the test and save it.
- Fast and efficient test
Pneumatic automatic clamping device and American chip control make the test faster and more efficient.
- Easy to measure and calibrate
The calibration procedure is specially set inside the instrument to facilitate the measurement and calibration department (third party) to calibrate the instrument. During the calibration, enter the calibration test program, remove the oil cup, and replace its interface with a calibration sensor to easily calibrate the indicating value error.
- Multiple unit selection
Users can select kPa, Psi, kgf /cm2 as required.
Technical Specifications of TT-FBT6000 Fabric Bursting Strength Tester
| Model | TT-FBT6000 |
| Measurement Range | 6000kpa 60kgf/cm2 870Psi |
| Resolution | 0.1kpa 0.01kgf/cm2 0.01Psi |
| Accuracy | ±0.5% |
| Film Thickness | ≤2mm |
| Test area | 7.3 cm2（Φ30.5mm） |
| Maximum expansion height | 75±0.02mm |
| Pressing speed | 95ml/min |
| Dimension (mm) | 500 x 280 x 500 |
| Weights | 47kg |
