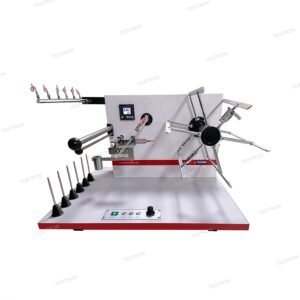

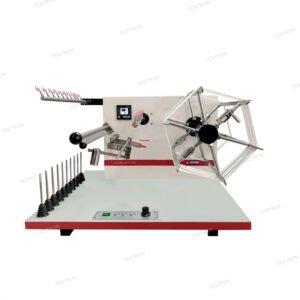

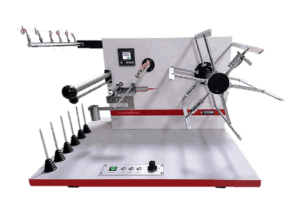

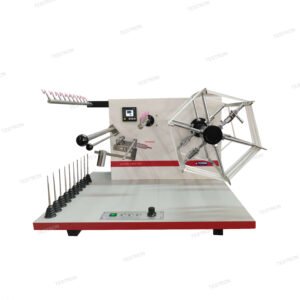

Test Standards of TT-EW086 SERIES ELECTRIC WRAP REEL (PLUS)
ISO 2060, ISO 6939, ASTM D1907
Features of TT-EW086 SERIES ELECTRIC WRAP REEL (PLUS)
- The innovative design concept makes the instrument structure more compact than conventional models.
- Microcomputer control, LCD display. The number of winding turns can be set, and the set number of turns can be accurately reeled (the upper row shows the actual number of turns, the lower row shows the set number of turns).
- DC servo motor is adopted, which runs smoothly and reliably without noise.
- The parts through which the yarn passes are made of corrosion-resistant materials such as stainless steel, aluminum alloy or ceramics, which are durable and rust-free.
Technical Specifications of TT-EW086 SERIES ELECTRIC WRAP REEL (PLUS)
| Model | TT-EW086D | TT-EW086E |
| Reel circumference | 1,000 mm
(metric system) |
54 inches (1.5 yard)
(English system) |
| Working position no. | 6 | |
| Rotating speed of reel | 30~250RPM (stepless adjustable) | |
| Number of turns | 1~9999, LCD display | |
| Tension range | 0~100cN | |
| Reciprocating distance | 35mm | |
| Interval of spindle | 65mm | |
| Power supply | AC220V, 50Hz | |
| Overall dimensions (L×W×H) | 780×610×510mm | 840×610×570mm |
| Weight | About 40kg | |
