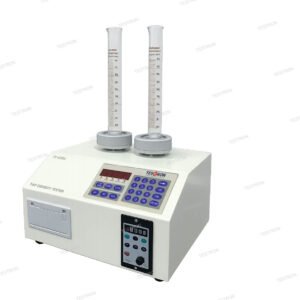

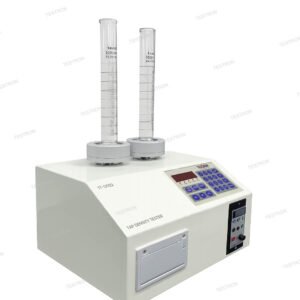

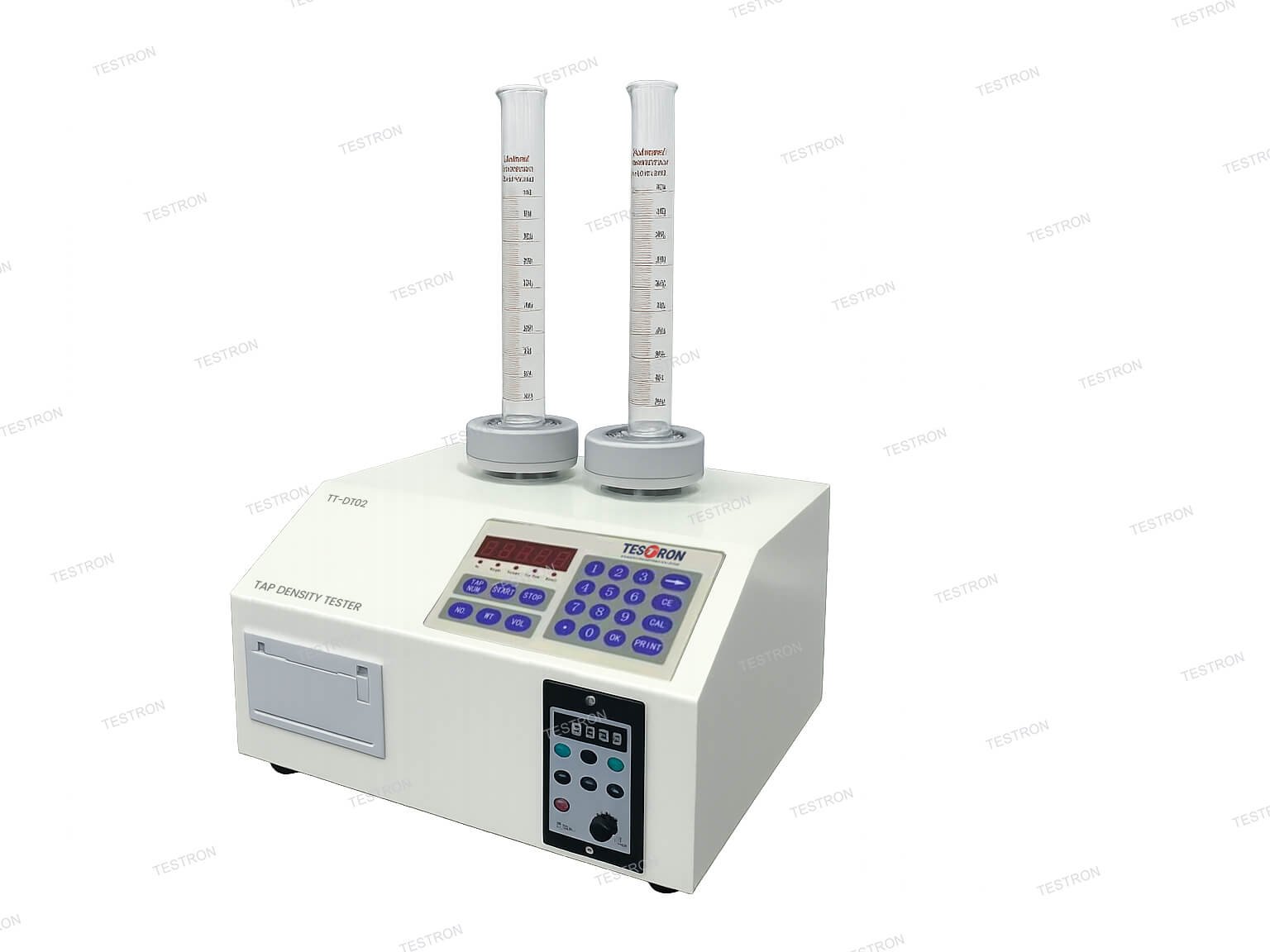

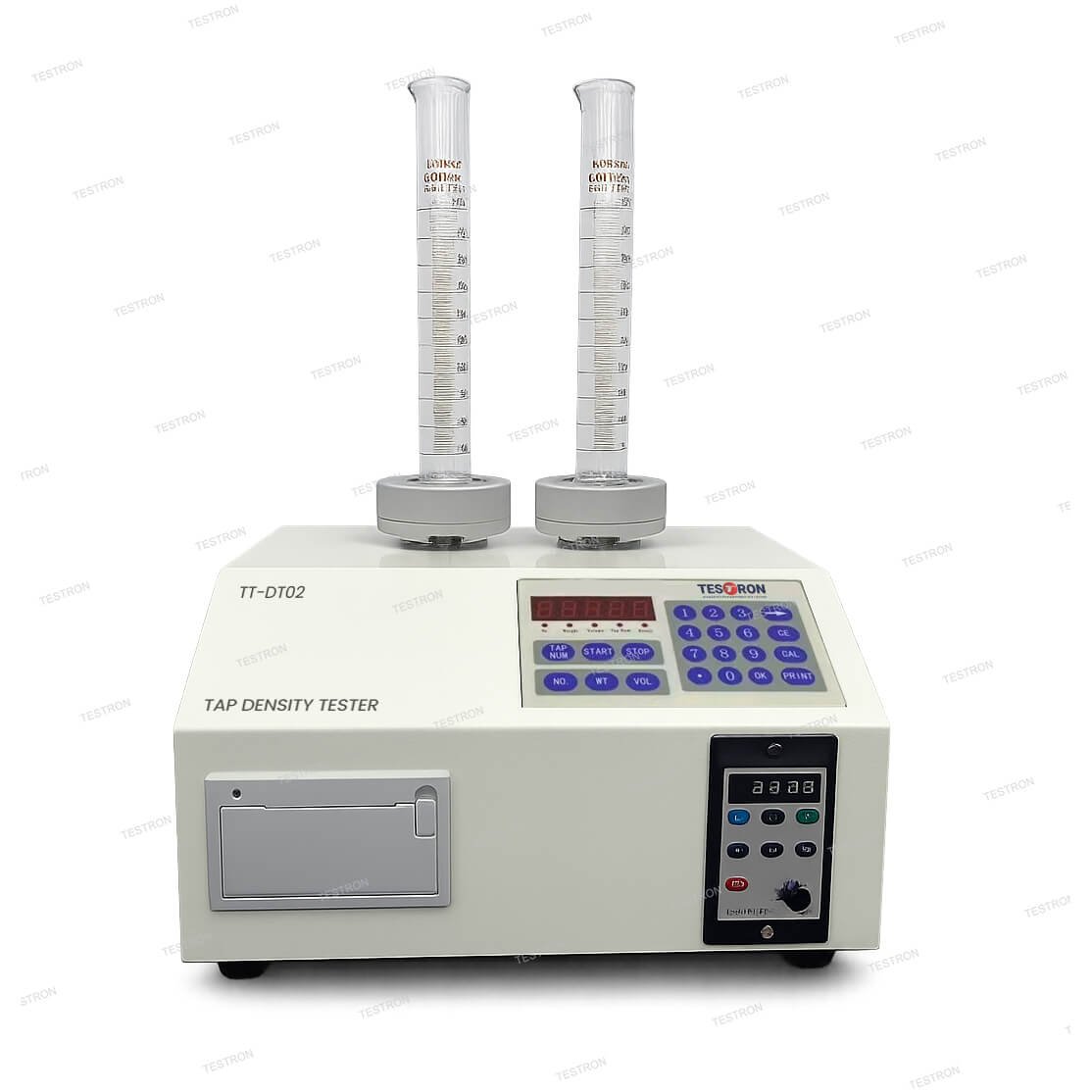

TT-DT02 Tap Density Tester

TESTRON TT-DT02 Tap Density Tester is the mass per unit volume.it can be classified as bulk density and tap density by different measuring method. Tap density tester is to measure the density of powder has been tapped or packed by standardized and repeatable procedures according to international standards.

For non-metallic powder, this instrument extended several functions. Such as “vibration amplitude” from 3m standard extended to 1mm-15mm;”vibration frequency “from 100-300 times per minute extended to 0-300 times per minute. “Vibration times “from 3000 times standard extended to 0-99999 times. All of them can be setup freely.

Inquiry Now

Categories: Material Testing, Plastic and Rubber Testing

Description

Test Standard of TT-DT02 Tap Density Tester

GB/T5162-2006/ISO3953:1993

Application of TT-DT02 Tap Density Tester

It is used to measure the bulk and tapped density of powders and granules to evaluate their flowability and packing behavior. It is widely applied in pharmaceutical, chemical, food, metallurgy, and battery material industries for quality control, formulation development, and packaging optimization.

Features of TT-DT02 Tap Density Tester

Drop Height-Easily Adjustment

The drop height is important for a tap density tester in order to meet different international standards. This tap density tester uses default 3mm height and some tapping washers in specific height to reach 14mm.They changes easily without opening the cover.

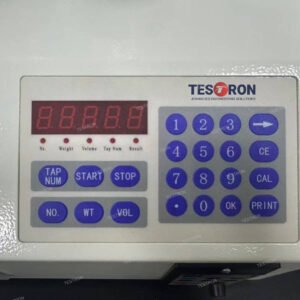

Working Panel-Intuitive

The intuitive LED and membrane working panel brings operator and easy and fast operation. Accurate to 4 decimals. Automatically saving all test information. Operator simply inputs the desired data and press start to test.

Rpm-Easily Adjustment

The rpm is also important for a tap density tester. This instrument uses a speed control to realize 250rpm and 300rpm. The motor is default 300rpm,just tun the knob and reach the right percentage to shift to 250rpm.

Analysis Result-Easily Printed

Integrated micro printer prints the test data after test including Sample No, weight, volume, tap number tap density and operator.

Cover-Easily to Clean

The outer surface is plastic coated, it is strong and resistant to any powders non-corrosive or corrosive. It makes for the cleaning procedure as well as a longer working life.

Technical Specification of TT-DT02 Tap Density Tester

Model	TT-DT02
Weight of testing object	<=500.00g
Volume of testing object	<=250.00ml (standard accessory including 25ml,50ml,100ml,250ml measuring cylinder)
Single vibration times	<=0-99999 times (the result will come out as bulk density when input zero times)
Allowable motor force	0.86 N.m.
Vibration frequency	maximum 300 round per minute(0-300 round per minute is adjustable, USA pharmacopeia standard is 300 round per minute)
Vibration amplitude	maximum 15mm (1mm-15mm is adjustable, International standard is 3mm)
Repeatability error	<=1%
Accuracy error	<=1%
