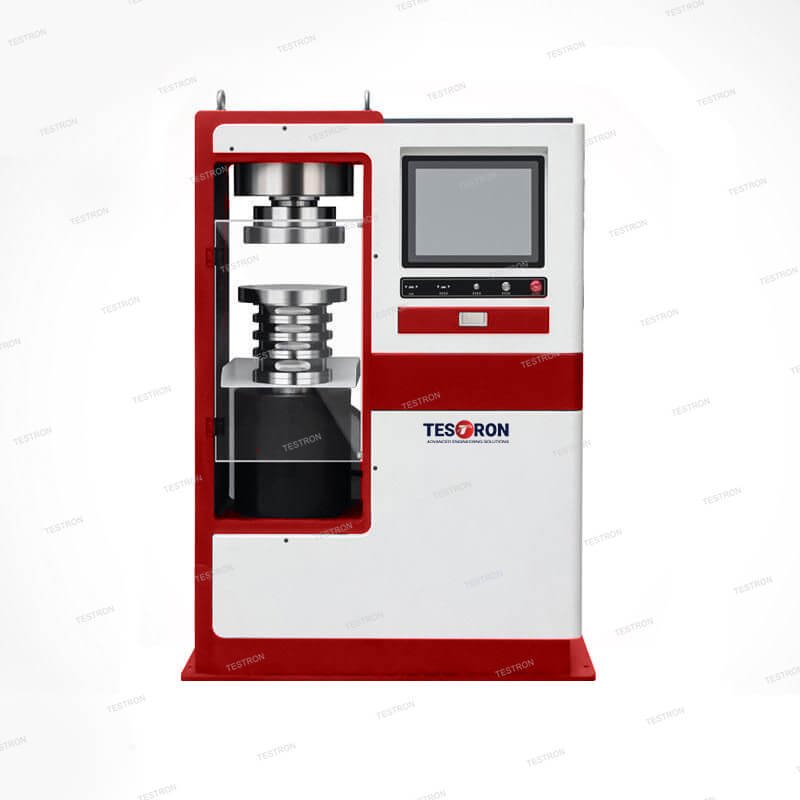

Application of TT-CT0300A Automatic Compression Testing Machine
TESTRON TT-CT0300A is suitable for the compressive strength test of brick, stone, cement, concrete and other materials, and can also be used for the compressive performance test of other materials.
Features of TT-CT0300A Automatic Compression Testing Machine
- The working oil cylinder and the working piston adopt precision couplings, embedded with composite sealing rings to achieve the best sealing state.
- The axial plunger high-pressure oil pump is used, which works smoothly and has low noise.
- The sensor adopts a pressure sensor, which is highly reliable.
- The control valve adopts a high-precision digital micro-flow valve with high control precision.
- Adopt the principle of automatic loading to strengthen the control of the loading rate.
Technical Specifications of TT-CT0300A Automatic Compression Testing Machine
| Model | TT-CT0300A |
| Maximum test force | 300kN |
| Measurement accuracy range | 10%~ 100% |
| Indication accuracy | ≦±1% |
| Loading rate | 0.3～9.9 kN/s |
| The distance between the upper and lower platen | 180mm |
| Pressure plate diameter | Φ120mm |
| Piston maximum stroke | 90mm |
| Piston diameter | Φ140mm |
| Oil maximum pressure | 31.5MPa |
| Power supply voltage | AC220V±10% |
| Dimensions | 890×600×1450mm |
| Weight | 400kg |
