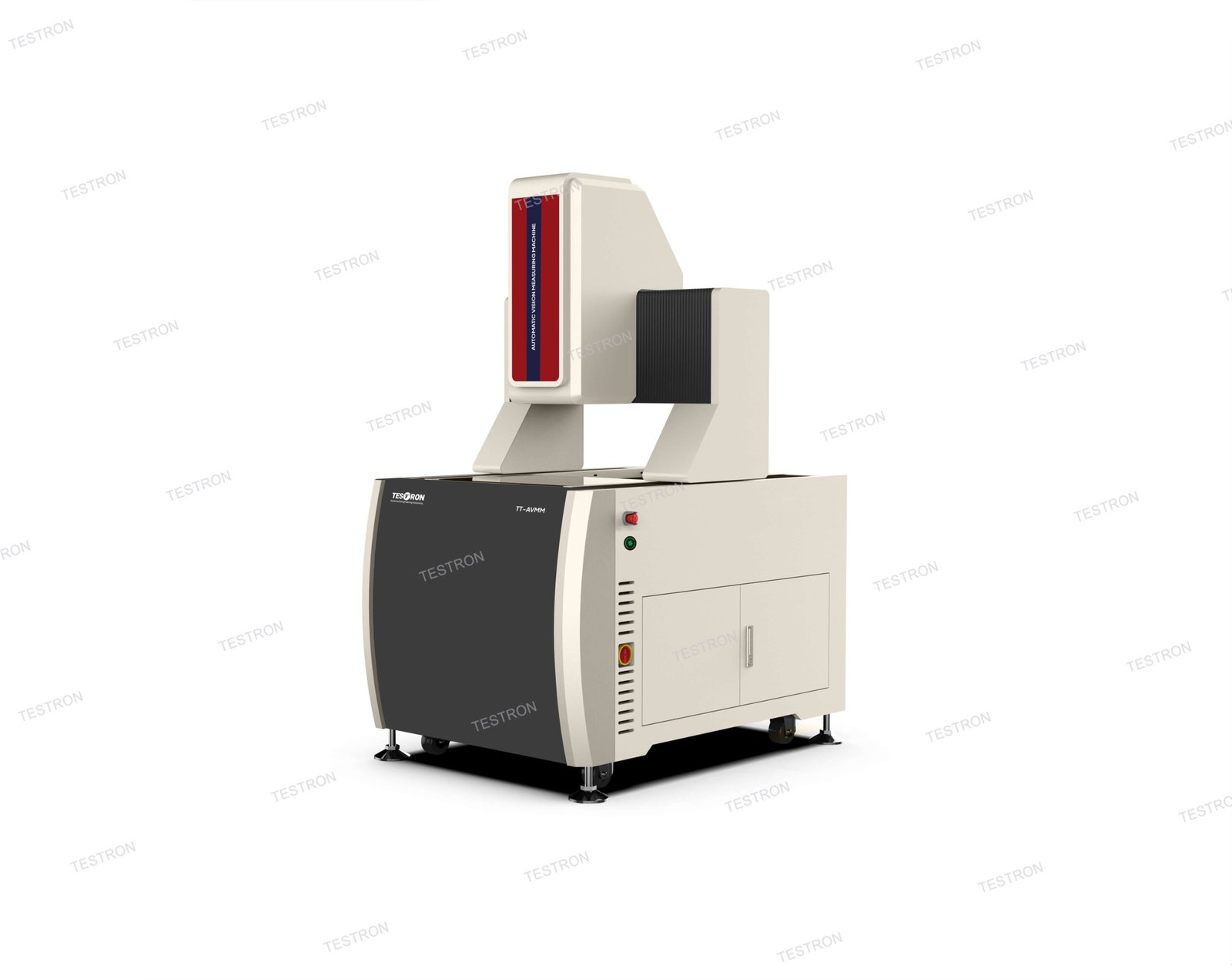

Application of TT-AVMM Automatic Video Measuring Machine
Widely used in precision measurement in various industries such as machinery, electronics, molds, injection molding, hardware, rubber, precision stamping, connectors, mobile phones, home appliances, printed circuit boards, medical equipment, clocks, tools, military, power, bridges, ships, aerospace, and other industries, ultimately achieving the purpose of quality control.
Features of TT-AVMM Automatic Video Measuring Machine
- Moving bridge-type structure, stable measuring
- Four-axis CNC fully automatic closed-loop control, fully automatic measurement
- Imported Indian black granite base and beam, and strictly adopting three-coordinate production process, stable and reliable
- 6061 aviation standard aluminum alloy, high toughness, ensuring long-term stable accuracy performance
- Using a professional structural design simulation and analysis system for analysis and optimization, the structure is more reasonable.
- Imported RSF open grid ruler, resolution of 0.1um, high accuracy, good stability
- Imported G1-SP high-precision guide rail, ground ball screw and AC servo motor
- High-resolution 1/1.8″ color camera, meet the needs of clear observation and stable measurement. 13.3X spectrometer confocal coaxial automatic variable magnification lens, the spectrometer confocal laser, coaxial variable magnification lens.
- Programmable 5-ring 8-zone 40-phase LED surface light source, transmission parallel LED contour light source system, intelligently realizing 256-level brightness adjustment.
- Comes with iMeasuring fully automatic image measuring software, which is powerful, simple and easy to use.
Technical Specifications of TT-AVMM Automatic Video Measuring Machine
| Model | TT-AVMM400 | TT-AVMM500 | TT-AVMM600 | |
| X/Y Axis Travel | (300*400) mm | (400*500) mm | (500*600) mm | |
| Z Axis Travel
|
200mm
|
|||
| X/Y/Z Axis Linear Scale（mm）
|
Resolution：0.1um | |||
| Guidance Mode
|
High-precision SP-grade Linear Guide , double-track double slider guide.
|
|||
| Operation Mode
|
Joystick controller, Mouse operation, automatic detection program
|
|||
| Accuracy
|
XY Axis：≤1.2+L/200(um)
Z Axis：≤3.0+L/200(um)
|
|||
| Repeatability
|
2um
|
|||
| Illumination System
|
Contour
|
LED Parallel Contour Illumination
|
||
| Surface
|
0~255 grade continue adjustable 5-ring 8-division LED surface illumination
|
|||
| Video System
|
1/1.8″ High-Definition Digital Color Camera
|
|||
| 13.3X Motorized Confocal Laser Zoom Lens ；Optical Magnification: 0.6X~8X;
|
||||
| Video Magnification: 25X~333X (21.5” monitor)
|
||||
| Measuring Software
|
iMeasuring
|
|||
| Operating System
|
Support WIN10/11-32/64 bit Operating System
|
|||
| Language
|
English
|
|||
| Working Environment
|
Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
|
|||
| Power Supply
|
AC220V/50Hz; 110V/60Hz
|
|||
| Dimension (W*D*H)
|
(1165*880*1650) mm
|
(1433*990*1650) mm
|
(1538*1090*1650) mm
|
|
| Packing Size (W*D*H)
|
(1380*1170*1910) mm
|
(1690*1300*2000) mm
|
(1800*1400*2000) mm
|
|
| Net Weight
|
650Kg
|
780Kg
|
1380Kg
|
|
Note：
L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
Magnification is approximate value; it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
Product Configuration Model Description of TT-AVMM Automatic Video Measuring Machine
| Product Category | 2.5D | 3D | 2.5D | 3D |
| Commodity | 2.5D Automatic Vision
Measuring Machine |
3D Automatic Contact & Vision Measuring Machine | 2.5D Automatic Laser-Scan & Vision Measuring Machine | 3D Automatic Multisensory
Measuring Machine |
| Model | TT-AVMM400A | TT-AVMM400B | TT-AVMM400C | TT-AVMM400D |
| Type | A | B | C | D |
| Significance | Optical Zoom-lens Sensor | Zoom-lens Sensor and Contact Probe Sensor | Zoom-lens Sensor and Lazer Sensor | Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor |
| Contact Probe | Without | MCP-Kit1 | Without | MCP-Kit1 |
| Lazer Module | Without | Without | Omron Lazer | Omron Lazer |
| Software Version | iMeasuring4.1 | iMeasuring4.2 | iMeasuring5.0 | iMeasuring5.1 |
Moving Bridge Automatic Vision Measuring Machine Models and Specifications
| Model | Code# | Model | Code# | Model |
| TT-AVMM400A | 528-180H | TT-AVMM500A | 528-180J | TT-AVMM600A |
| TT-AVMM400B | 528-280H | TT-AVMM500B | 528-280J | TT-AVMM600B |
| TT-AVMM400C | 528-380H | TT-AVMM500C | 528-380J | TT-AVMM600C |
| TT-AVMM400D | 528-480H | TT-AVMM500D | 528-480J | TT-AVMM600D |
Moving Bridge Automatic Vision Measuring Machine Measurement Space Guide Table
| Travel | Model | Accuracy | X Axis Travel mm | Y Axis Travel
mm |
Z Axis Standard Travel mm | Z Axis Maximum Custom Travel mm | |
| E1x, y
|
E1z
|
||||||
| 300X400X200
|
TT-AVMM400 | 1.2+L/200
|
400 | 300 | 200 | 400 | |
| 400X500X200
|
TT-AVMM500 | 500 | 400 | 200 | 400 | ||
| 500X600X200
|
TT-AVMM600 | 600 | 500 | 200 | 400 | ||
