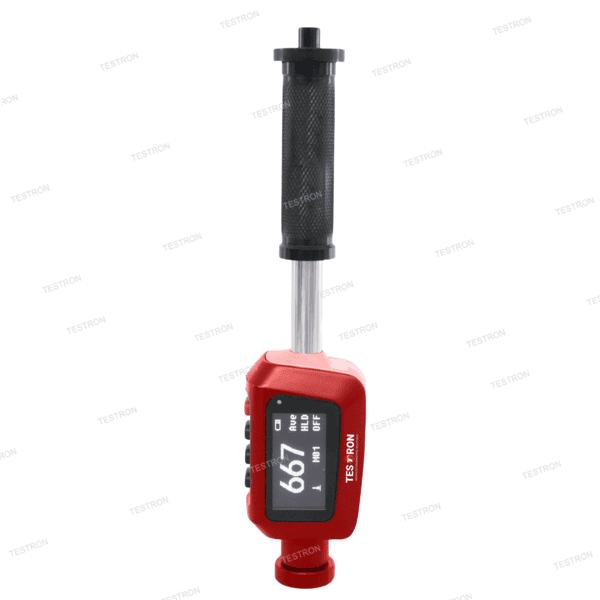

TT-5106 Integrated Hardness Tester Features
● Impact device G for Solid components, e.g. heavy castings and forgings.
● Two work modes: either in Individual mode, or in System mode
● Testing materials, hardness scale, testing direction and measurement times can be chosen
● Conversion among 3 hardness scales: HLG,HB,HRB
● Automatic identification of impact test direction
● Review, delete current measured data & calculate the average values automatically
● Memory of 200 average values
● Transfer to PC via USB in Word & Excel format , with Powerful PC Software included
● Battery indicator with auto power off in low battery or 2 minutes without working
TT-5106 Integrated Hardness Tester Technical Specification
| Impact device | G type |
| Impact energy | 90mJ |
| Work mode | Used single or system mode |
| Display | OLED screen, 128×64 dot matrix, brightness adjustable |
| Measuring range | (200~750)HLG |
| Accuracy | ±12HLG |
| Repeatability | 12HLG |
| Measuring direction | 360° |
| Hardness scales | HLG、HB、HRB |
| Memory | 200 average value |
| Interface | USB |
| Data output | Transfer data to PC |
| Operating voltage | 3.3V |
| Operating temperature | 0~40℃ |
| Humidity | ≤90% |
| Transmission distance | 10 m |
| Dimensions (mm) | 254 × 50 × 40 |
| Weight (g) | 310 |
Conversion Table of Hardness
| Material | Hardness scale | Range |
| Steel and cast steel | HB | 90~646 |
| HRB | 47.7~99.9 | |
| Grey cast iron | HB | 92~326 |
| Nodular cast iron | HB | 127~364 |
| Cast aluminum alloys | HB | 32~168 |
| HRB | 23.8~85.5 |
TT-5106 Integrated Hardness Tester Standard Delivery
| Standard Delivery | |
| Main unit | 1 |
| Test block G | 1 |
| Mini USB cable | 1 |
| Charger | 1 |
| Cleaning brush | 1 |
| TIME certificate | 1 |
| Warranty card | 1 |
| Instruction manual | 1 |
