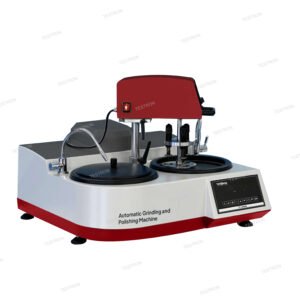

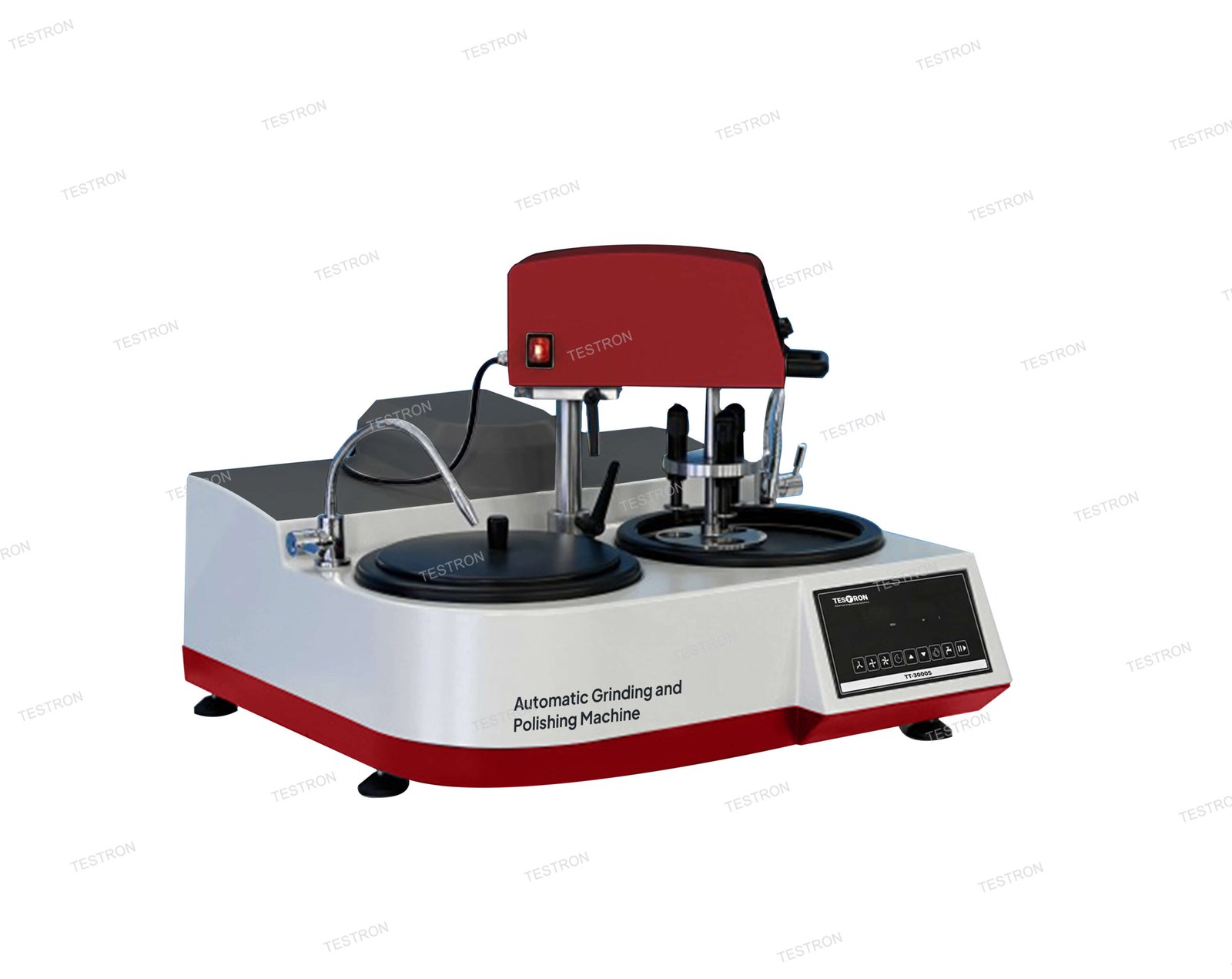

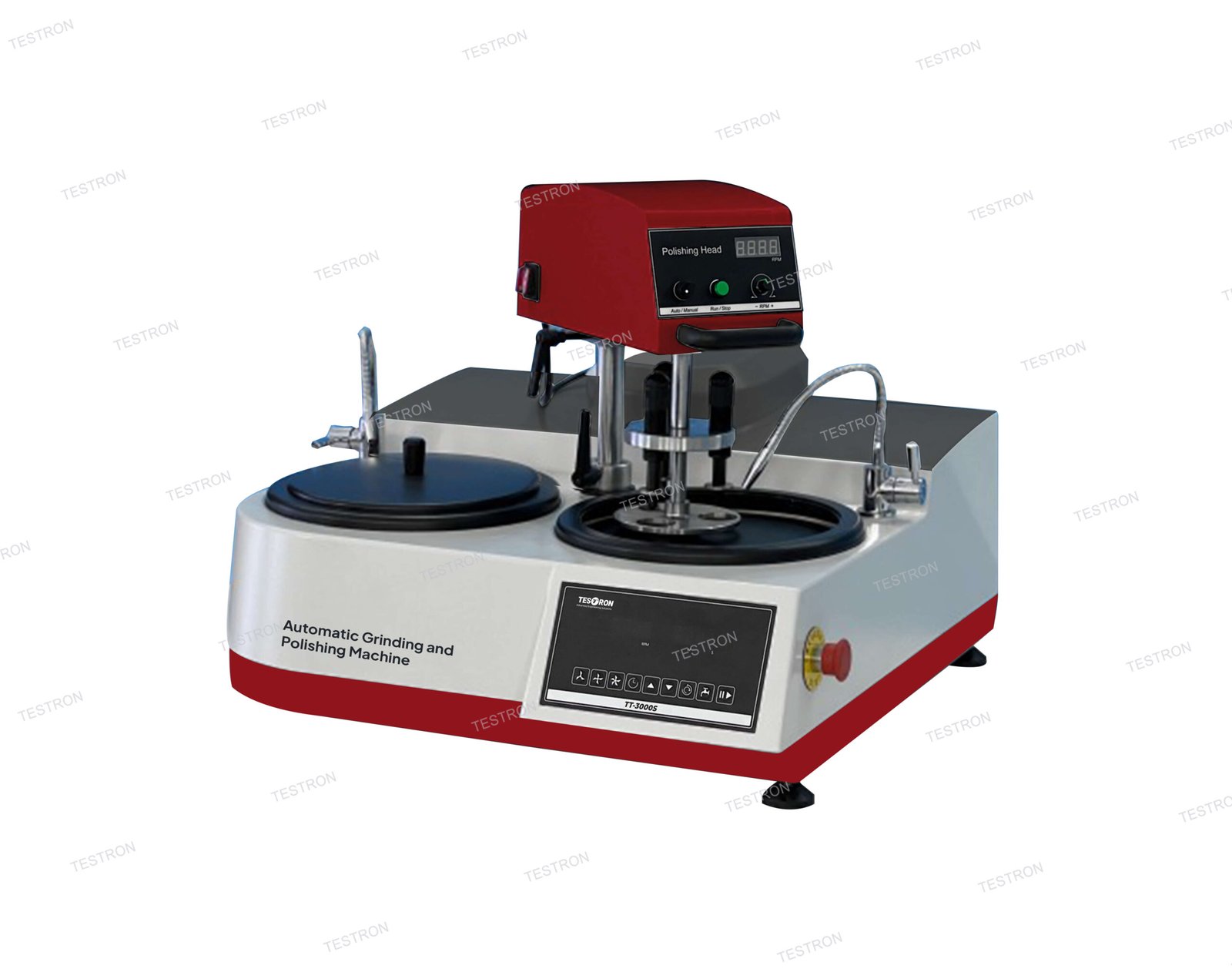

TT-3000S Automatic Grinding and Polishing Machine
Operation system
The advanced microprocessor control system is adopted to realize step less speed drive, and the sample preparation pressure and time setting are intuitive and convenient.
Grinding and Polishing System
This machine only needs to replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. It has functions such as the rotation direction of the discs can be selected arbitrarily, and discs can be quickly replaced; multi-sample holder and pneumatic single-point loading.
Cooling system
This machine is equipped with a water cooling device, which can cool the sample during grinding and polishing to prevent damage to the metallographic structure due to overheating and to flush away the abrasive particles at any time.
Features Of TT-3000S Automatic Grinding and Polishing Machine:
- Simple operation for grinding and polishing.
- Variable speed. Preset three scale speed buttons.

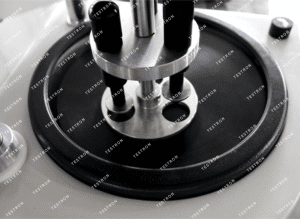

- Adjustable spring pressure polishing head for polishing 3 specimens independently.
- CCW and CW direction control.

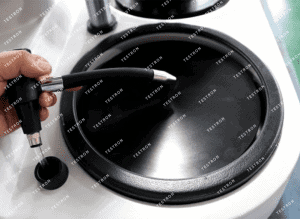

- The water hose with universal direction can be pulled out for cleaning the basin.
- Plastic disposable bowl liner for easy cleaning.
- Durable antirust composite construction.
- Powder coated aluminum housing, durable and reliable.
Technical Specifications of TT-3000S Automatic Grinding and Polishing Machine
| Model: | TT-3000S |
| Code#: | 712-222 |
| Wheel (mm): | ○Ø203 ●Ø254 |
| Speed(rpm): | 100~1000 |
| Wheel | 2 |
| Motor: | 550W |
| Mode: | Semi-automatic |
| Speed of head(rpm): | 50~200 |
| Holder(mm): | Φ30×3，others can be customized |
| Pressure: | Spring |
| Motor of Head: | 90W |
| Power: | 220V |
| Paper Ring: | ● |
| Splash guard: | ● |
| Cover: | ● |
| Grinding paper: | ● |
| Polishing Cloth: | ● |
| Diamond Spray: | ○ |
| Diamond Slurry: | ○ |
| Alumina Powder: | ○ |
| Recirculating Tank: | ○ |
Details of TT-3000S Automatic Grinding and Polishing Machine
 |
 |
 |
 |
 |
 |
