● Measure through coated surfaces and eliminate the thickness of the paint using a dual element style transducer in echo-echo mode
● Identify the standard transducer automatically, or preset the transducer frequency manually
● Transducer TSTU17 and TSTU32 are optional to measure various materials
● Connect to TA230 printer or PC via RS232 interface
● Upper /lower limits pre-setting and sound alarm
● Differential mode shows the difference between the test thickness value and the user-setting thickness range.
● Memory of 500 test data
● Resolution 0.001mm and 0.01mm selectable for your use

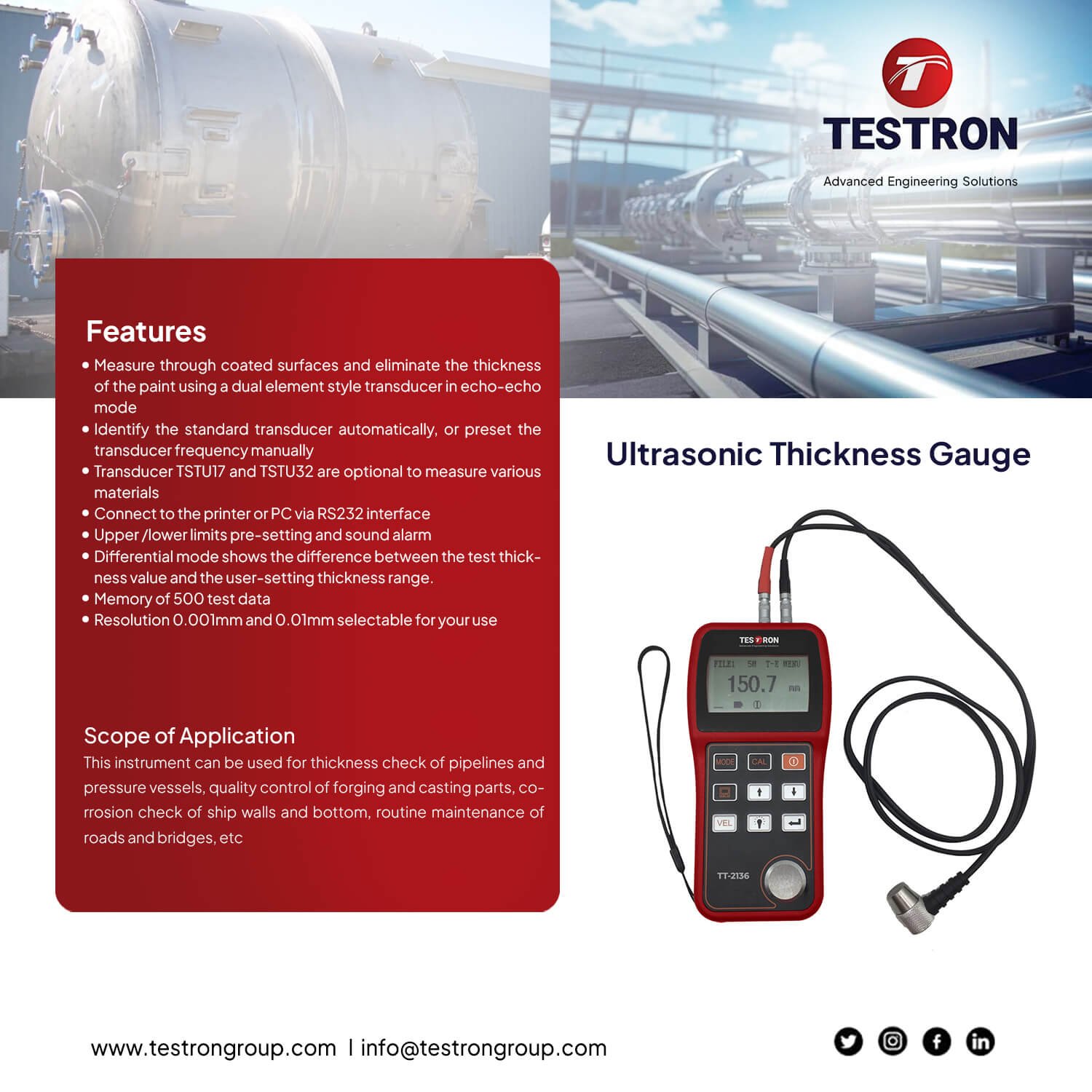

TT-2136 Ultrasonic Thickness Gauge Specifications
| Measuring range (depends on probe) | Transducer 5PØ10: |
| 1.2-200mm (steel in T-E testing mode) | |
| 3~20mm(steel in E-E mode) | |
| Transducer TSTU32: | |
| 5mm~300mm(steel in T-E testing mode) | |
| Display resolution | 0.001mm or 0.01mm |
| Sound speed | 1000~9999m/s |
| Display | Backlight |
| Measuring accuracy | ±1%H＋0.1mm(H means the thickness of tested plate) |
| Data output | RS232 |
| Calibration plate | 4.0mm(steel) |
| Power | AA batteries 1.5V (2pcs) |
| Unit scales | mm/inch |
| Operating temperature | -10~60℃ |
| Dimensions (mm) | 152×74×35 |
| Weight (g) | 220 |
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Communication cable |
| Transducer 5PФ10 | 1 | Standard plate |
| Couplant | 1 | TA230 printer |
| Sheath for the main unit | 1 | Transducer TSTU32 |
| Certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
