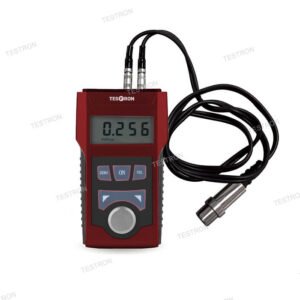

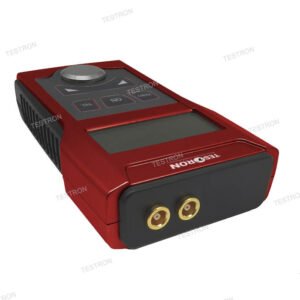

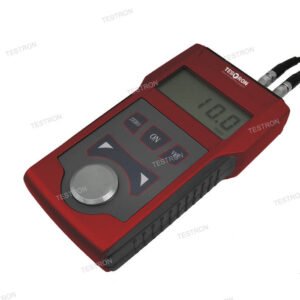

Application of TT-2110/2113 Ultrasonic Thickness Gauge
It is a non-destructive testing (NDT) instrument used to measure the thickness of materials such as metal, plastic, ceramics, and glass using ultrasonic sound waves

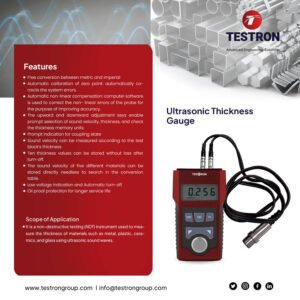

Features of TT-2110/2113 Ultrasonic Thickness Gauge
- Free conversion between metric and imperial
- Automatic calibration of zero point: automatically corrects the system errors.
- Automatic non-linear compensation: computer software is used to correct the non- linear errors of the probe for the purpose of improving accuracy.
- The upward and downward adjustment keys enable prompt selection of sound velocity, thickness, and check the thickness memory units.
- Prompt indication for coupling state
- Sound velocity can be measured according to the test block’s thickness.
- Ten thickness values can be stored without loss after turn-off.
- The sound velocity of five different materials can be stored directly needless to search in the conversion table.
- Low voltage indication and Automatic turn-off
- Oil proof protection for longer service life
Technical Specifications of TT-2110/2113 Ultrasonic Thickness Gauge
| Items | TT-2110/2113 |
| Measuring range | 1.2~225.0mm |
| Display type | 4-digit LCD |
| Minimum display unit | TT-2110 0.1mm TT-2113 0.01mm |
| Sound velocity range | 1000m/s~9999m/s |
| Measuring error | ±(1％H+0.1) mm, H is the actual thickness of the object to be measured. |
| Power supply | two AAA alkaline cells 1.5V |
| Power consumption | working current is smaller than 20mA(3V) |
| Operating temperature | 0℃~ 40℃ |
| Dimensions (mm) | 124×68×27 |
| Weight (g) | 140 |
Standard Configuration of TT-2110/2113 Ultrasonic Thickness Gauge
| Items | Qty | |
| Main Unit | 1 | |
| 5PФ10 probe | 1 | |
| Couplant | 1 | |
| AAA battery | 1 | |
| Certificate | 1 | |
| Warranty Card | 1 | |
| Instructional Manual | 1 | |
Optional Accessory of TT-2110/2113 Ultrasonic Thickness Gauge
- 5P 10/90 probe (1.2~225.0mm)
- 5P probe (3.0~300.0mm)
- 7PΦ6 probe (0.75~60mm)
