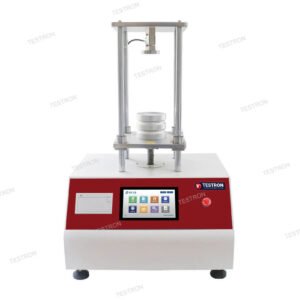

Features of TT-1000 PET Vertical Load Resistance Tester
- Customized test mode can be realized according to user needs to meet various test requirements, max. 4 different pressure and holding time could be set.
- The instrument adopts all stainless steel and aluminum design
- The Intelligent functions such as over travel protection, overload protection, automatic position reset and power failure memory to ensure the safety of users’ operations
- 1~500mm/min adjustable stepless speed
- 7-inch touch screen control
- The screen could set the function of dynamic display, maximum pressure value, real-time pressure value, pressure holding time, platform height, platform running direction, screen display parameters, date and time, product name, operator, batch number, sample number, test mode.
- The instrument can store 10 operators and 30 product information and has password protection function.
- USB data port output, with “Quality testing” data analysis software.
Test Principle of TT-1000 PET Vertical Load Resistance Tester
The plastic bottle is clamped between the two grips of the vertical load pressure tester, and the two grips move to each other relatively. The force sensor builds in the movable grip and the displacement sensor built in the instrument collect the force change and displacement change during the experiment, to calculate the vertical load resistance of the sample
Technical Specifications of TT-1000 PET Vertical Load Resistance Tester
| Item | Parameter |
|---|---|
| Force Range | 1 KN (customization is available) |
| Resolution | 0.001 N |
| Displacement Accuracy | 0.5% FS |
| Test Speed | 1 ~ 500 mm/min（adjustable） |
| Resolution | 1 N（test range ≤ 5 KN） |
| 10 N（test range ≥ 10 KN） | |
| Sample Size | Diameter：0 ~ 150 mm. |
| Power Supply | AC 220 V 50 Hz |
| Instrument Dimension | 500mm(L) × 450mm(B) × 750mm(H) |
| Net Weight | 70 kg |
Configuration of TT-1000 PET Vertical Load Resistance Tester
| Standard: | Instrument, Micro Printer, Grips |
| Optional: | High accurate calibration kits, Quality testing” Data Analysis Software, Customized Grips |
